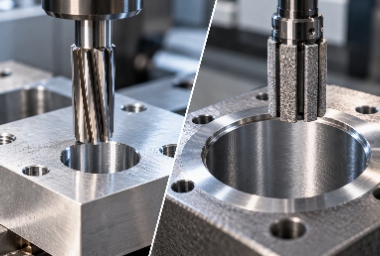

Honing vs. Reaming: Which Process Delivers Better Hole Accuracy?

Should you use honing or reaming to finish a precision hole? The answer depends on what needs improvement. Reaming is usually the more straightforward option when a correctly positioned, prepared hole needs a consistent final diameter. Honing becomes more relevant when the bore also requires finer surface texture or improved roundness, cylindricity, or taper.

Choosing the wrong finishing process can add machining time without solving the actual problem. A hole may meet its diameter tolerance but still fail because of poor roundness, surface finish, or misalignment. This honing vs. reaming comparison focuses on the results each process can achieve, their limitations, and when each is worth using.

What Is the Main Difference Between Honing and Reaming?

Reaming uses a multi-edge cutting tool to remove a small amount of stock from a previously machined hole. Its main purpose is to finish the hole to a controlled diameter, often after drilling or boring. A reamer generally follows the existing hole, so it is not a dependable way to correct a major location or straightness error. For a closer look at the operation, see reaming in CNC machining.

Honing uses abrasive elements moving and rotating inside the bore. Depending on the equipment, setup, and available stock, it can improve surface finish and selected geometric errors, including roundness and taper. Honing is commonly considered for demanding sliding, sealing, and bearing surfaces.

In practical terms:

• Choose reaming when hole size is the primary concern and the prepared hole already has acceptable geometry and location.

• Consider honing when bore finish or form is critical to part performance.

• Review earlier operations when the hole is badly misplaced, angled, or significantly crooked; neither method should be expected to fix every upstream error.

Honing vs. Reaming: Accuracy, Surface Finish, and Production Comparison

These are illustrative planning ranges, not guaranteed results. Actual capability depends on material, diameter, bore depth, tooling, setup, stock allowance, and measurement methods.

Which Process Gives Better Hole Accuracy?

There is no single answer because hole accuracy includes more than diameter. On a drawing, size, position, roundness, cylindricity, and surface finish may have different requirements.

When reaming is sufficient

Reaming is often appropriate for locating-pin holes, close-fitting fastener holes, and other features where the existing hole is correctly positioned and the main target is a repeatable diameter. It can be integrated into a CNC milling workflow after the preceding hole-making operation.

However, reaming cannot reliably make a misplaced hole correctly positioned. If the centerline is wrong, the earlier drilling, fixturing, or boring operation needs attention.

When honing offers an advantage

Honing is more attractive when the bore's surface and geometry are important to how the part works. Examples include a sliding component that requires a controlled finish or a cylindrical bore where out-of-roundness affects contact and performance.

A finer Ra value alone does not establish that a hole is better. The finish should match the application's requirements, and roundness or cylindricity must be evaluated separately when specified.

For drawing interpretation, the distinction between size and geometric characteristics is important. Related issues, including flatness tolerance, illustrate why one dimensional measurement does not describe every functional requirement of a machined surface.

Is Honing Always More Accurate Than Reaming?

No. Honing can provide superior surface finish and form correction for suitable bores, but that does not mean it is always necessary or more economical. If a prepared hole already meets its roundness and finish requirements, reaming may achieve the specified diameter with less processing time.

Consider two situations:

• Example A — locating hole: A metal mounting plate needs a controlled hole diameter for a dowel pin. If the hole location and geometry are already acceptable, reaming may be sufficient.

• Example B — sliding bore: A cylindrical component requires both controlled diameter and a specific internal surface finish. Honing may be justified because the functional requirement extends beyond hole size.

These examples illustrate different requirements; the final process must be validated against the drawing and actual production capability.

How Do Honing and Reaming Affect Machining Cost?

Reaming often has an advantage in cycle time when the hole has been prepared correctly. The operation can use conventional CNC equipment and a suitable reamer, with relatively straightforward integration into a machining sequence.

Honing may add specialized tooling or equipment, abrasive maintenance, process adjustment, and inspection. These costs can be worthwhile when the required bore finish or geometry would otherwise cause rejected parts or assembly problems.

The cost comparison should include more than the tool price:

For custom components, the added machining and inspection steps should reflect functional requirements rather than automatically applying the finest possible finish. This same principle also applies when reviewing the economics of low-volume manufacturing.

When Should You Choose Reaming Instead of Honing?

Reaming is usually the first process to evaluate when:

• The existing hole is accurately located and reasonably straight.

• The drawing mainly requires a consistent final diameter or fit.

• Surface roughness achievable by reaming is sufficient.

• The production workflow favors a shorter finishing cycle.

• A controlled, repeatable setup can maintain the required dimensions.

For example, a drilled mounting hole that must accept a precision locating pin may benefit from reaming when the hole's position and form are already suitable. The decision depends on actual tolerance limits, not simply the presence of the word “precision” on a drawing.

When Is Honing the Better Option?

Consider honing when:

• Surface texture is important for sliding, sealing, or wear behavior.

• Roundness, cylindricity, or taper requires further improvement.

• A bore needs controlled finishing over its length.

• Reaming meets the diameter requirement but not other specified bore characteristics.

• The value of improved bore performance justifies the additional operation.

For instance, hydraulic and other precision cylindrical components may require both form control and a particular surface finish. Honing can be a suitable finishing operation, provided the bore condition and available allowance are compatible with the process.

Why Do Precision Holes Still Fail After Finishing?

A finished hole can measure correctly in diameter while still causing assembly or performance problems.

Do not select honing simply because a reamed hole failed inspection. First identify which characteristic is out of tolerance. If the main problem is hole location, correcting the preceding machining operation may be more effective than adding another finishing process.

How Do You Decide Between Honing and Reaming for a CNC Part?

Use a short selection sequence before finalizing the manufacturing plan:

1. Read the drawing: Identify diameter, fit, position, roundness, cylindricity, and surface-finish requirements.

2. Inspect the incoming hole: Check its size, location, straightness, and available stock.

3. Identify the limiting characteristic: Determine whether the main problem is size, finish, form, or location.

4. Compare suitable processes: Evaluate reaming, honing, boring, or another operation against that requirement.

5. Verify actual capability: Use representative samples and appropriate measuring equipment.

6. Compare total cost: Consider cycle time, tooling, inspection, rejects, and production quantity.

This approach avoids choosing a finishing method based solely on a nominal precision figure or a surface-finish claim.

FAQ

Can honing replace reaming?

Sometimes, but not in every production workflow. Honing may deliver the required size and finish, while reaming may be faster and sufficient for holes whose geometry is already acceptable. The decision depends on the starting bore and drawing requirements.

Can reaming improve surface finish?

Yes. Reaming can improve the surface of a prepared hole, but it does not guarantee a specific roughness or correct substantial geometric errors. Tool condition, cutting parameters, and material all affect the result.

Which process is better for an H7 hole?

Reaming is commonly evaluated for H7-class holes when the preceding hole is suitable. However, an H7 designation alone does not determine whether reaming or honing is required; diameter, form, finish, and process capability also matter.

Does honing correct hole position?

Honing is not generally used to relocate a badly positioned hole. If the hole axis is incorrect, earlier operations such as boring or changes to workholding may be needed.

Is honing more expensive than reaming?

It often has a higher processing cost because it can require more time and specialized control, but total cost depends on the application. Honing may be economical if it prevents functional failures that a simpler finishing method cannot resolve.
