Flatness Tolerance in CNC Machining: Causes of Error and Design Solutions

A thin aluminum plate produced by CNC machining can pass a dimensional check at the machine and still rock on its mounting surface after it is unclamped. For product designers, buyers, and machinists, that mismatch can mean rework, assembly delays, or a rejected part. This guide to flatness tolerance in CNC machining explains how to specify flatness, how to measure flatness on machined parts, and how to reduce warping in CNC-machined aluminum and other materials. It also connects GD&T, residual stress, and surface-plate inspection to practical decisions about datums, tolerance zones, and machining strategy.

What Does Flatness Tolerance Control?

Flatness is a form tolerance in geometric dimensioning and tolerancing (GD&T). It limits how far all points on a specified surface may depart from an ideal plane. The tolerance zone consists of two parallel planes separated by the stated tolerance value; the entire controlled surface must fit between them.

Unlike parallelism or perpendicularity, a flatness control does not require a datum. It evaluates the form of the surface itself, not its orientation to another feature. For example, a flatness tolerance of 0.10 mm means the measured surface must fit within two parallel planes 0.10 mm apart. It does not mean that every point must be within 0.10 mm of a nominal CAD plane unless the inspection method and alignment establish that comparison.

Flatness is also different from surface finish. A surface may have a low roughness value, such as Ra 1.6 μm, yet still bow across its full length. Conversely, a surface with visible tool marks may meet its flatness requirement. Specify surface roughness and flatness separately when both affect function.

There is no single flatness tolerance that is right for every CNC part. A broad, thin plate, a compact ground block, and a cast housing have different process capabilities and functional needs. Set the tolerance from the assembly requirement, material, part size, machining route, and inspection capability—not from a default value copied from another drawing.

A machined surface is affected by more than toolpath accuracy. Material stress, heat, cutting forces, clamping pressure, and the order in which stock is removed can all change the part’s shape. A part may be flat while held in a fixture and spring into a different shape once released.

What Causes Flatness Errors in CNC Machining?

Residual Stress and Material Removal

Rolled, extruded, cast, or heat-treated stock can contain residual stress. When machining removes material unevenly, the remaining section redistributes that stress and may bow or twist. This is a common risk in thin aluminum machined parts and long bars, but steel, plastic, and other materials can also move. Material condition and supplier processing matter, so a machining plan should account for the actual stock form rather than assume the blank is stress-free.

Clamping Force, Heat, and Cutting Load

Excessive or uneven clamping can elastically bend a component. The machine then cuts the surface in the bent condition; after unclamping, the surface springs back. Cutting heat and tool forces can add further distortion, particularly when a large amount of material is removed in one operation or a thin wall has little support.

Part Geometry and Machining Sequence

Large length-to-thickness ratios, deep pockets, asymmetric features, and thin ribs make parts more sensitive to deflection. A one-sided roughing operation may release stress unevenly. Finishing the critical face before other heavy cuts can also be counterproductive: later operations may change the shape of the finished surface.

How to Measure Flatness on Machined Parts

Choose an inspection method that matches the tolerance, part size, surface condition, and acceptance plan. Before measuring, clean the part and inspection equipment, allow the part to reach a stable temperature, and support it without forcing it flat. Dimensional metrology commonly uses 20°C as the reference temperature; when the part or room is significantly warmer or cooler, thermal expansion can affect results.

1. Define the controlled surface and condition. Confirm the drawing callout, units, inspection state, and whether the part is free-standing or inspected in a functional fixture. Do not clamp a flexible part flat unless the drawing explicitly defines that condition.

2. Use a surface plate and indicator for a practical check. Place the part on a verified granite surface plate using a stable, low-force support arrangement. Sweep the surface with a dial test indicator or height gauge, recording high and low readings. This can reveal bow or twist, but the setup, support points, and sampling pattern affect the result.

3. Use a CMM or suitable scanning system for tighter control. A coordinate measuring machine (CMM) can collect points across the controlled surface. The software evaluates the measured points against the specified geometric tolerance zone. Use a sampling plan that represents the whole surface, including edges and areas where distortion is likely.

4. Separate surface texture from form measurement. If milling marks or roughness could influence a contact probe, select an appropriate stylus, filtering approach, or non-contact method. Document the measurement strategy so that production and inspection interpret the result consistently.

5. Repeat the check after unclamping and stabilization. For distortion-prone parts, compare the shape while fixtured, immediately after release, and after a defined settling period. This helps distinguish fixture-induced bending from persistent part distortion.

A height-indicator sweep is useful for process troubleshooting, but a handful of readings is not automatically a complete GD&T evaluation. For close tolerances or customer acceptance, agree on the inspection method, point distribution, and evaluation software before production.

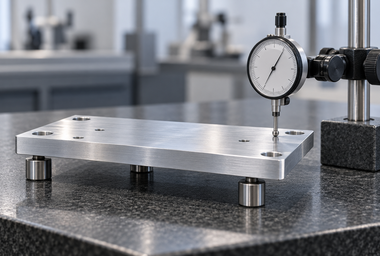

Photographs or sketches of the inspection setup should show the support points and measurement path. Including these details in the quality inspection plan helps make flatness checks repeatable.

Check the evaluation method. A fixed indicator sweep can include tilt as well as surface form. Likewise, deviations from a least-squares best-fit plane do not necessarily equal minimum-zone flatness. For acceptance inspection, use the evaluation method required by the drawing standard and agreed inspection procedure.

Design solutions for flatness tolerance in CNC machining

The most economical flatness requirement is the one that reliably protects function without demanding precision the assembly does not need. Review the design before locking the drawing: a small geometry change can be more effective than adding inspection or secondary grinding.

Set a functional tolerance, not an aspirational one

Ask what the surface must do. Does it seal against a gasket, support a bearing, locate another component, or simply provide a cover? For a sealing face, flatness may directly affect leakage; for a non-contact exterior panel, a broader tolerance may be acceptable. Specify a tighter tolerance only where function, assembly, or test data supports it.

Make flexible features easier to machine

Where packaging permits, increase plate thickness, shorten unsupported spans, add ribs, or use a perimeter frame. Avoid abrupt changes in section that create uneven stiffness. If the part must remain thin, discuss temporary support features or a dedicated fixture with the machinist before finalizing the geometry.

Balance material removal and provide access

Design pockets and cutouts symmetrically where possible, and avoid removing nearly all the material from one side before machining the other. Provide access for a stable fixture and toolpath that can finish the critical surface without excessive overhang. A datum scheme should also make the intended setup and inspection condition clear, even though flatness itself does not use a datum reference.

Choose material and stock with movement in mind

For distortion-sensitive components, discuss alloy, temper, stock form, and stress-relief options with the supplier. A stress-relieved or appropriately conditioned blank may reduce movement, but it does not guarantee zero distortion. Confirm the proposed material condition and machining sequence with a trial part when the tolerance is critical. A rapid prototyping trial can help identify movement before the design and production route are finalized.

Specify the Controlled Area and Final Inspection Stage

Apply the flatness callout to the surface that performs the required function. If only a local contact area requires tight control, define that area clearly on the drawing rather than tightening the entire face unnecessarily. A local requirement must still account for how the complete part seats in the assembly.

Clarify whether acceptance applies before or after heat treatment, coating, or other finishing operations. These later steps can affect the final geometry. If milling alone cannot consistently meet the requirement, discuss a suitable secondary process, such as surface grinding or lapping, including material compatibility, stock allowance, and cost.

A step-by-step process to reduce flatness errors

When a flatness issue appears, changing the final toolpath first may hide the symptom without fixing its cause. A controlled process review is more useful.

1. Establish a baseline. Measure the incoming blank, the rough-machined part, the unclamped part, and the finished part. Record temperature, support locations, fixture condition, and measurement method.

2. Check the fixture. Inspect contact points for chips, burrs, wear, and uneven support. Reduce clamping force to the minimum that prevents movement, and use balanced support rather than pulling a bowed blank down against the fixture.

3. Revise the roughing sequence. Remove material in balanced stages, alternating sides when practical. Leave a consistent finishing allowance so the final cut removes a controlled amount instead of a variable skin.

4. Allow stress and heat to settle. Depending on material and part geometry, introduce a rest period or a qualified stress-relief step between roughing and finishing. The required time and treatment depend on the material and supplier process; validate them rather than applying a universal schedule.

5. Finish with low, consistent cutting forces. Use a sharp, suitable tool, stable workholding, and a CNC milling finishing pass designed to avoid pushing a thin feature away from the cutter. Keep coolant and cutting conditions consistent where thermal variation is relevant.

6. Inspect after release. Verify the part in the defined free state, not only while it is clamped. If the result changes after unclamping, investigate fixture deformation and residual stress before adjusting the nominal toolpath.

7. Update the control plan. Record the successful setup, sequence, measurement locations, and acceptance method. Repeatability matters: one passing sample does not prove a stable process.

Flatness tolerance in CNC machining: an illustrative case

Consider a hypothetical 300 mm by 200 mm aluminum mounting plate with a thin central section. The first machining route clamps the blank firmly, mills the top face, and then removes most of the back-side material. The face measures acceptably in the fixture but bows after release. That pattern points toward elastic clamping deformation and stress redistribution, not necessarily an inaccurate machine axis.

A process trial could compare a balanced roughing sequence, reduced clamping force with additional support, a settling interval, and a final light finishing cut. Inspect each trial in the same temperature and free-state condition. If the revised route reduces measured peak-to-valley variation enough to meet the drawing requirement across repeated parts, document it as the controlled process. The numerical outcome must come from actual measurement; no flatness improvement percentage can be assumed without testing the specific material, geometry, and machine setup.

Advanced considerations for flatness tolerance in CNC machining

For tight requirements, control the entire measurement chain. A CMM’s probing strategy, calibration status, thermal condition, support method, and software evaluation can all influence reported flatness. Measurement uncertainty should be considered when the observed value is close to the tolerance limit; a result barely inside the limit may not provide a robust production margin.

It is also useful to distinguish drawing acceptance from process control. The drawing defines the permissible geometry, while shop-floor checks can monitor trends using repeatable points or a fixture. Trend data can reveal gradual tool wear, fixture damage, or a batch-specific material change before parts exceed the specified tolerance.

For high-volume or high-risk components, run a first-article inspection and a process capability study using a suitable sample plan. Capability indices are meaningful only when the measurement system and process are stable and the data represent production conditions. They should not be used to claim capability from a few hand-selected parts.

Choosing a CNC machining partner for flatness control

When requesting a quote, share the 2D drawing, 3D model, material and temper, expected annual quantity, critical surface, and assembly function. Ask how the supplier will fixture the part, sequence roughing and finishing, inspect the controlled surface, and handle parts that move after release. These questions reveal whether flatness is being treated as a manufacturing and verification problem rather than only a number on a print.

Build Flatness Control into the Design and Process

Reliable flatness starts with a functional tolerance and a clear inspection condition. Residual stress, clamping, heat, cutting forces, and asymmetric material removal can all change a machined part’s shape. Address these factors during design review, then verify the released part using a documented measurement method.
