At kaierwo, we approach Reaming in CNC Machining by first defining the hole’s fit, tolerance, surface-finish, and geometric requirements; then we check whether drilling or boring can meet them, select a suitable reamer and pre-hole allowance, and verify the finished feature with an appropriate gauge or measuring instrument. This step-by-step method helps beginners avoid treating reaming as a fix for every hole, while giving experienced engineers a practical way to control size, finish, tool life, and inspection risk.

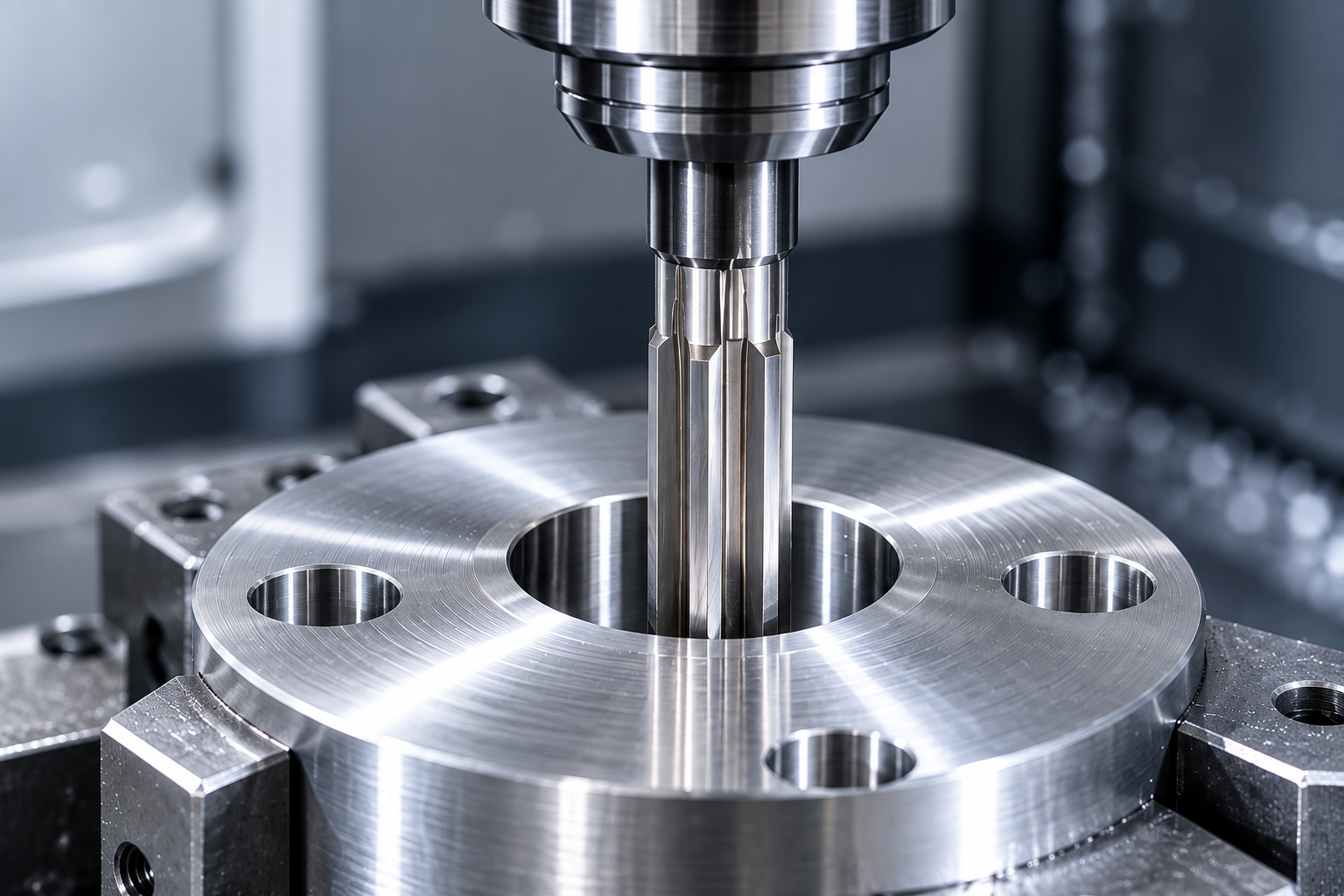

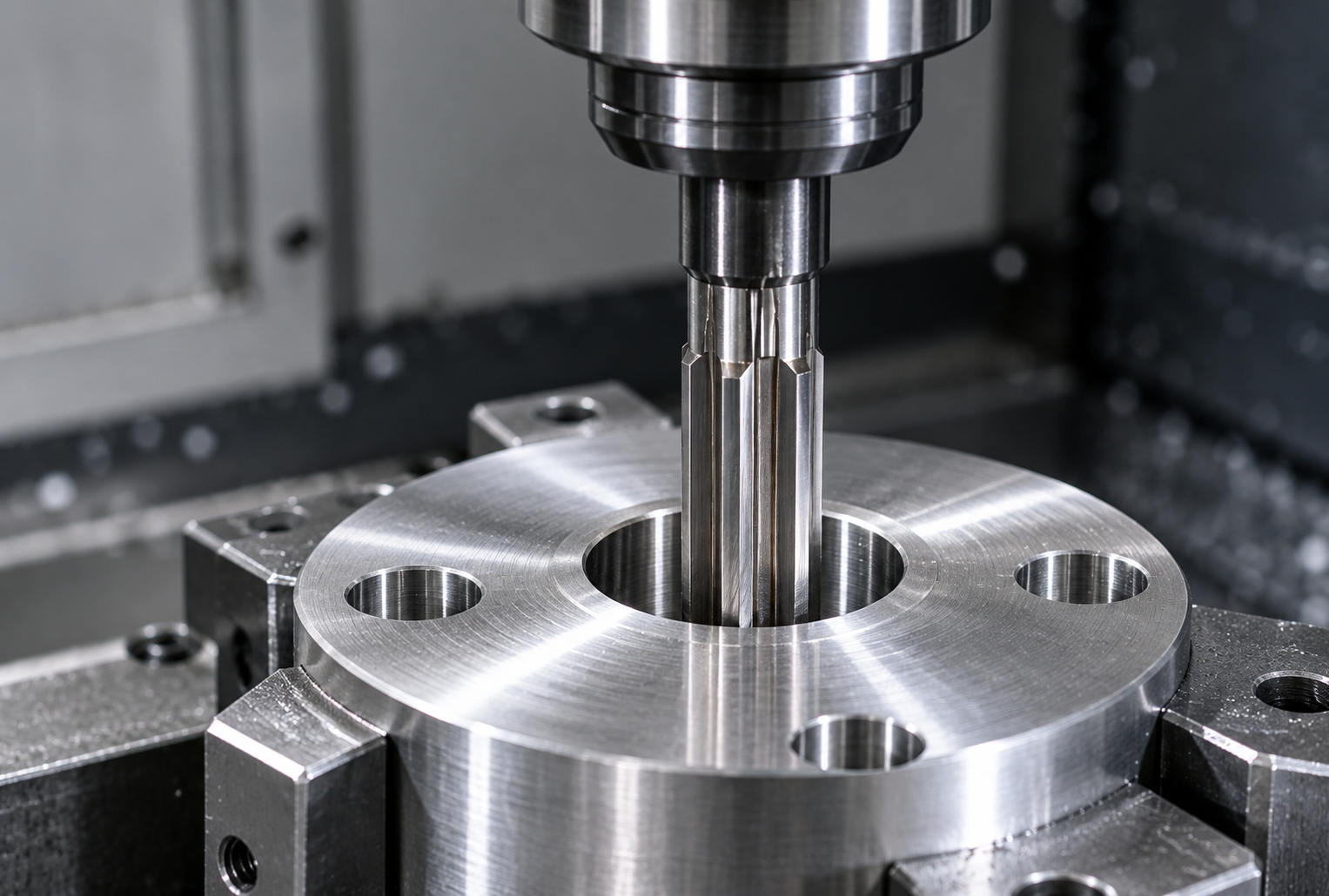

Reaming is a finishing operation that removes a small, controlled amount of material from a pre-existing hole. A multi-edge reamer follows the prepared hole and sizes its diameter while improving surface finish. In CNC machining, it is commonly used after drilling when a hole needs a more consistent fit than drilling alone can reliably provide.
However, a reamer generally follows the hole’s existing axis. It is not the right tool for correcting substantial position error, a badly angled hole, severe runout, or a crooked bore. Those issues may require improved workholding, a spot-drill and drilling strategy, boring, or another machining operation before reaming is considered.
Reaming: Finishes a correctly located, near-size hole to a controlled diameter and surface condition.
Boring: Can adjust hole size and, with a suitable setup, improve alignment or concentricity.
Drilling: Creates the hole, but its final size and finish can vary with tool condition, material, and setup.
Comparison | Drilling | Reaming | Boring |
|---|---|---|---|
Main Purpose | Create holes | Improve diameter accuracy and finish | Enlarge and accurately size existing holes |
Hole Position Correction | Limited | Generally cannot correct | Can improve location with suitable setup |
Accuracy | Depends on drilling conditions | Suitable for close-tolerance holes | Suitable for precision bores |
Cost | Generally low | Additional finishing cost | May require more machining time |
Typical Applications | Clearance holes | Dowel pin and fitted holes | Precision bores and aligned features |
The decision depends on the drawing and the function of the hole—not on a blanket rule that every precision hole must be reamed. Reaming is worth considering when the required diameter, fit, or surface finish is beyond the stable capability of the drilling process being used.
| Hole requirement | When reaming may help | Important limitation |
|---|---|---|
| Close dimensional tolerance | When a pre-drilled hole needs a more repeatable final diameter; tolerances around 0.01 mm may be achievable in suitable conditions. | Actual capability depends on diameter, material, machine condition, tool, and measurement method. |
| Standard fit, such as an H7 hole | When the hole is intended for a pin, shaft, dowel, or other mating component and the specified limits call for a finishing operation. | Use the drawing’s stated limits and the applicable ISO 286 fit designation; do not assume H7 is appropriate for every assembly. |
| Improved surface finish | When the drilled surface does not meet the functional or finish requirement. | Reaming does not guarantee a particular Ra value; confirm the process with a test cut and measurement. |
| Repeated production holes | When a stable tool path and inspection plan can maintain consistent results across a batch. | Tool wear, chip evacuation, and thermal changes still need monitoring. |
For example, a hole called out for a controlled clearance or transition fit may justify reaming after drilling. By contrast, a loose-clearance hole with a broad tolerance may not need the added operation. Reaming also may not be the most economical option for a large bore or a hole whose axis must be corrected; boring or another process can be more appropriate.
Start with the nominal diameter and upper and lower limits. Then identify the fit, hole depth, material, surface-finish requirement, position tolerance, and whether the hole is blind or through. A fit designation such as H7 should be interpreted using the drawing’s specified standard and size range, rather than converted into a generic tolerance value.
Check whether the hole is a locating feature, a bearing seat, a fluid passage, or a fastener clearance hole.
Review geometric controls, including position and perpendicularity, in line with the drawing and relevant GD&T practice such as ISO 1101.
Confirm the inspection method and acceptance limits before machining begins.
Compare the required tolerance and finish with the proven capability of the drilling setup. Consider material hardness, hole depth, drill runout, fixturing, machine condition, and production volume. If the hole’s position or straightness is already outside tolerance, do not expect the reamer to correct it; improve the preceding operation or evaluate boring.
A reamer needs material to remove, but too much stock can cause excessive cutting force, chatter, poor finish, or premature wear. Too little stock can make the tool rub instead of cut and may leave the hole undersize or inconsistent. Select the pre-hole diameter from the reamer manufacturer’s guidance for the specific tool, workpiece material, and hole size; there is no single allowance that suits every application.
For a through hole, plan how chips and coolant will clear. For a blind hole, allow enough depth for the tool’s lead and chip space so the reamer does not bottom out against the hole floor.
Choose the reamer type, material, coating, flute geometry, and cutting direction for the workpiece and machine setup. A straight-flute reamer may suit some applications, while spiral geometry can help manage chips in others. Consult the tool supplier’s cutting data for speed and feed rather than copying settings from a different material or diameter.
Check toolholder condition, spindle runout, and alignment.
Use an appropriate, consistent coolant or lubrication strategy for the material and tool.
Avoid stopping or dwelling in the cut unless the tool maker specifically recommends it; rubbing can damage the finish and tool edge.
Keep the tool and hole clean, and use a tool-change plan based on measured process performance.
Before processing a full batch, machine a representative part and inspect the result. Record the pre-hole size, reamer, tool offset, cutting conditions, coolant approach, finished diameter, and surface result. This first-article check reveals whether the process needs adjustment before tool wear or batch variation creates a larger problem.
Use calibrated measuring equipment with resolution and uncertainty appropriate to the tolerance. A plug gauge can provide a fast go/no-go check; a bore gauge or suitable internal measurement system can provide a measured diameter. For a critical feature, consider a documented 100% inspection plan when the risk assessment or customer requirement calls for it. Record results and apply the drawing’s acceptance rules; ISO 14253-1 is relevant when evaluating measurement uncertainty against specification limits.
Surface texture should be measured when the drawing specifies it, using a method appropriate to the requirement, such as the profile parameters covered by ASME B46.1. A smooth-looking bore is not proof that its Ra value meets specification.
Appropriate quality inspection methods help verify hole dimensions and ensure that finished parts meet the specified drawing requirements.
| Observed issue | Likely cause | Practical response |
|---|---|---|
| Oversize or bell-mouthed hole | Runout, misalignment, excessive allowance, tool wear, or an unstable setup. | Check the pre-hole, holder, spindle runout, and tool condition; reduce process variation and verify with a first article. |
| Undersize hole | Insufficient allowance, tool rubbing, incorrect tool size, or material springback. | Review the manufacturer’s allowance and cutting data; verify the reamer diameter and inspect the material response. |
| Chatter or poor finish | Tool overhang, weak workholding, unsuitable speed/feed, or inadequate chip evacuation. | Improve rigidity, shorten overhang, optimize cutting conditions, and select a chip-management strategy for the hole type. |
| Chipped cutting edges or short tool life | Excessive stock, interrupted cutting, hard inclusions, poor coolant delivery, or incorrect entry. | Inspect the work material and setup, correct the allowance, and use a reamer geometry and coolant approach suited to the application. |
| Hole position remains out of tolerance | The reamer followed a misplaced or angled pre-hole. | Correct the drilling or locating process, or evaluate boring; do not rely on reaming to relocate the axis. |

Consider a batch of machined steel plates with a dowel-locating hole specified to a close fit.For precision holes in custom components, CNC milling can incorporate drilling, reaming, and dimensional verification into a controlled machining workflow.
In an illustrative shop-floor scenario, drilling alone produces inconsistent diameters, so the team measures the pre-hole and checks spindle runout before introducing a finishing reamer. It selects the pre-hole allowance from the tool maker’s data, runs a first article, and checks the finished diameter with a calibrated bore gauge and a go/no-go plug gauge.
After the team confirms the process on the first article, it tracks inspection results through the batch and sets a tool-change trigger based on observed drift rather than an arbitrary number of parts. The lesson is not that reaming always guarantees a 0.01 mm result; it is that a controlled sequence—sound pre-hole, suitable tool, stable setup, and appropriate inspection—can make a demanding hole more repeatable. This example is illustrative and does not represent a named customer result.
For practical process control, we recommend keeping the following items available and linked to the part or job record:
The current engineering drawing with tolerance, fit, finish, and geometric requirements.
A reamer selection and cutting-data sheet from the tool manufacturer.
A calibrated plug gauge, bore gauge, or other measurement system suitable for the specified limits.
A first-article inspection record containing the tool, pre-hole, machine, and measured-result details.
A tool-life and process log to identify drift, chatter, or recurring setup issues.
A documented inspection plan that defines sampling or 100% inspection where required.
When discussing a precision-hole project with kaierwo, share the drawing, material, quantity, fit, tolerance, finish requirement, and inspection expectations. Complete information helps the manufacturing team assess whether reaming, boring, or another approach is the right process for the feature.
Reaming in CNC Machining is necessary when the drawing demands a diameter, fit, or surface condition that the existing drilling process cannot reliably achieve—and when the pre-hole is properly located and prepared. Define the requirement first, select the process and allowance from tool-specific guidance, validate with a first article, and inspect using a method suited to the tolerance. At kaierwo, we use these considerations to help customers evaluate precision-hole requirements and choose a practical machining and quality-control plan.
