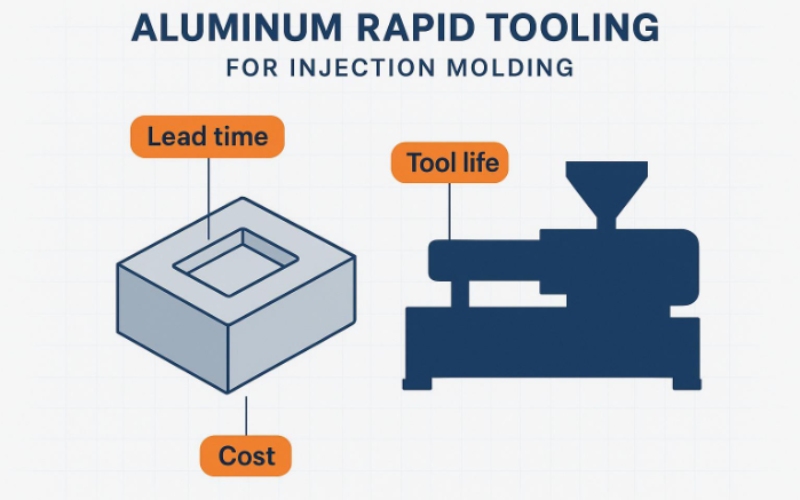

Aluminum Rapid Tooling for Injection Molding: A Procurement Buyer’s Guide to Choosing a Rapid Tooling Service

If you’re sourcing injection-molded parts in low-to-mid volumes, aluminum rapid tooling can be a smart middle path. It’s usually faster and lower cost than full hardened steel tooling, and it can produce parts in production-grade resins (unlike many prototyping methods).

“Rapid tooling service” means a supplier who can do more than cut a mold quickly. They can also help you lock assumptions (DFM, gating/parting line), run trials, and document quality so your team can buy with fewer surprises.

The catch is that “aluminum tool” can mean very different things in practice: different alloys, different wear behavior, different expectations for tool life, different approaches to inserts and surface finish, and different levels of documentation from the supplier.

By systematically comparing different solutions and carefully selecting qualified suppliers, potential uncertainties in project execution can be effectively reduced, thereby minimizing the occurrence of unexpected issues to the greatest extent.

Key takeaways

• Aluminum rapid tooling is best when you need injection-molded parts quickly for validation, bridge production, or early-market demand. Most suppliers position it for prototype to low-to-mid volume runs, not million-shot programs.

• The real comparison isn’t “aluminum vs steel.” It’s aluminum vs soft steel (like P20), and sometimes vs 3D-printed molds, depending on volumes, resin choice, and risk tolerance.

• Procurement gets better outcomes when the RFQ asks for specific deliverables: DFM feedback, gate/parting-line confirmation, trial plan (T0/T1), and measurable QC outputs.

• Choose a rapid tooling service based on their change-control process and verification culture, not just lead time. Fast tools that need three rounds of rework aren’t fast.

What “aluminum rapid tooling” means in injection molding (in procurement terms)

Aluminum rapid tooling is a form of “soft tooling” where a mold (or key inserts within a mold) is machined from aluminum rather than hardened tool steel. The main business value is speed: aluminum is generally faster to machine and faster to cool, which can shorten both tooling lead time and molding cycle time.

Most buyer-facing explainers emphasize the thermal side. For example, Protolabs describes aluminum tooling as a lower-cost, faster option intended for shorter production runs in its aluminum vs. steel tooling overview. Formlabs also frames aluminum tooling as a durable rapid-tooling option for low-to-mid volume in its guide to rapid tooling (Formlabs, 2022).

For procurement, the definition that matters is simpler:

• You’re buying a shorter lead time and lower NRE (non-recurring engineering cost) compared with hardened steel.

• You’re accepting a lower ceiling on tool life and process window compared with hardened steel, especially with abrasive or high-temperature resins.

Where aluminum tooling sits in the “prototype → production” continuum

Here’s a useful way to think about options by program stage:

• Very early stage (design is still moving): 3D printing, CNC prototypes, or vacuum casting.

• You need real resin behavior and injection-molded geometry: aluminum rapid tooling or other soft tooling.

• Demand is proving out and you want durability for sustained runs: soft steel (like P20) and then hardened steel.

When aluminum rapid tooling is the right choice

Aluminum rapid tooling tends to make sense when at least one of these is true:

1) You need parts fast enough that steel lead time is the bottleneck

If your product timeline is constrained by tooling, aluminum is typically the fastest option for injection-molded parts.

2) Your volumes are “real,” but not yet high enough to justify hardened steel

Think bridge production, pilot builds, early sales, or service spares. Many suppliers position aluminum tools for low-to-mid volume runs; Protolabs uses that framing explicitly in its aluminum vs. steel tooling overview.

3) You need injection-molded quality (material + geometry) for validation

Procurement teams often see “prototype” and assume it can be printed. But if you’re validating snap fits, living hinges, tight assemblies, cosmetic surfaces, or production resin performance, you usually need injection molding.

4) You expect design changes

A “fast” tool should also be modifiable. Aluminum is generally easier to machine and revise, which can matter when engineering is still learning.

Warning: If you’re molding highly abrasive materials (for example, glass-filled resins) or chasing very tight cosmetic requirements, aluminum may still work, but your RFQ needs to ask for tool-life assumptions and mitigation measures up front.

The comparison procurement actually needs: aluminum vs P20 vs 3D-printed molds

Most sourcing decisions benefit from a three-way comparison. Each option can be “right,” depending on volumes, resin choice, and the cost of failure.

Two notes that help stakeholders align:

1. Tool life ranges are not universal. If someone promises a single number without caveats, treat it as a sales line. Resin, part design, gating, and surface finish requirements all matter.

2. 3D-printed molds are a different category. They can be great for quick functional samples. But they’re usually not a procurement substitute for a rapid tooling service that will also stand behind process stability.

Cost drivers: what makes aluminum rapid tooling quotes swing

A procurement-ready quote comparison looks past “tool price” to the drivers that change risk and total cost.

Tooling scope: inserts, actions, and the number of cavities

• Single cavity vs multi-cavity: Multi-cavity can reduce piece price but increases tooling complexity.

• Side actions / lifters: Often a larger cost driver than the mold material.

• Insert strategy: Inserts can be a smart way to protect wear areas or allow revisions without rebuilding the whole tool.

Surface finish and cosmetic requirements

Polishing, texture, and cosmetic standards can push you toward steel, or at least toward a supplier who can clearly define what finish is realistic in aluminum.

Resin choice (and why you should force clarity here)

Some suppliers will quote without a specific resin grade. That’s a problem. Wear behavior and cycle time depend on the resin and any fillers.

The hidden cost: change orders caused by unclear assumptions

For procurement, the most common cost surprise is not a line-item fee. It’s rework that comes from:

• unclear draft assumptions

• ambiguous parting-line expectations

• missing “cosmetic side” definition

• tolerance stack-ups that weren’t flagged early

Your RFQ package can prevent most of this. We’ll cover that later.

What to ask a rapid tooling service (supplier selection criteria)

You don’t need to be a tooling engineer to qualify suppliers. You need a repeatable checklist that forces clarity.

1) DFM discipline: do they identify risks before cutting metal?

Ask every supplier for DFM feedback that includes:

• proposed gate location(s)

• parting line proposal

• draft / undercut risks

• weld line risks where relevant

• “steel safe” decisions (what they will leave stock on, and why)

A supplier that can’t explain these items clearly will struggle when revisions happen.

2) Trial plan and stage gates (T0/T1/T2)

Tooling projects go sideways when nobody agrees on what “done” means at each stage.

At minimum, ask:

• What is included in the first trial (T0 or T1)?

• What measurement output do you deliver after trial?

• What changes are included vs billable?

3) Quality evidence: what can they actually measure?

For procurement, “we have QC” is not an answer. Ask what they measure and how. Do they have:

• CMM or equivalent dimensional measurement

• a documented first-article inspection (FAI) process

• material traceability for resin and inserts

If your organization has compliance needs, this is where certifications and QMS maturity matter.

4) Communication and change control

This is the quiet differentiator. Fast suppliers often win because they communicate well, not because their machines are faster.

Ask:

• Who reviews DFM with you (an engineer or a salesperson)?

• How do you manage ECO changes after tooling starts?

• What’s your standard response time during tool build and trial iterations?

5) Export readiness and logistics clarity

If you’re buying internationally, ask for clarity on packaging, shipping terms, and how parts are labeled for traceability.

A procurement RFQ checklist you can copy/paste

Below is a buyer-friendly RFQ input checklist. It’s intentionally practical; the goal is fewer assumptions.

Part data

• 3D CAD file (STEP/IGES) and 2D drawing (PDF) with critical dimensions called out

• Tolerance highlights: what must hold tight vs what is flexible

• Cosmetic requirements: define A-side/B-side and acceptable defect criteria

Material and performance

• Resin type and grade (or an approved short list)

• Any fillers (glass, mineral) and flame/UV requirements

• Functional requirements (snap-fit strength, impact, temperature range)

Volume and schedule

• Expected order volume for the first 1–3 purchase orders

• Target lead time to first parts

• Expected annual volume if the product succeeds (even a range helps)

Tooling expectations

• Preferred tooling type (aluminum / P20 / “recommend based on requirements”)

• Expected tool life range (and what conditions change it)

• Cavity count preference (or ask supplier to propose)

Process deliverables

• DFM report with gate/parting line proposal

• Trial plan (T0/T1) and what measurement report you will receive

• Packaging and labeling requirements

Commercial and legal

• NDA requirement

• Incoterms preference (if applicable)

• Warranty or rework policy for tooling and parts

Pro Tip: If you want apples-to-apples quotes, ask every supplier to state what is excluded. Tooling quotes often look cheaper because key work is assumed “out of scope.”

If you want a supplier that can cover rapid tooling plus adjacent processes for early programs, Kaierwo has a dedicated page for its Kaierwo rapid tooling service offering, and related capabilities like plastic injection mold making and Kaierwo CNC machining services. If your program isn’t ready for tooling yet, their Kaierwo vacuum casting services guide can also help stakeholders understand an alternative path.

FAQ

Q1:Is aluminum rapid tooling “production tooling” or “prototype tooling”?

It’s best treated as a bridge. Many teams use it to get production-like parts fast, then migrate to steel if demand and wear requirements justify it. The supplier should help you scope tool life and revision expectations up front.

Q2:Can an aluminum tool handle glass-filled resins?

Sometimes, but it’s higher risk. Abrasive fillers increase wear and can shorten tool life. If your material is abrasive, ask the supplier to propose mitigation (for example, inserts in wear areas) and to document tool-life assumptions.

Q3:How do I compare suppliers if every one claims “fast lead time”?

Ask for the same deliverables from each vendor: a DFM packet, a trial plan, and sample inspection outputs. Suppliers who have a repeatable process will show it in the artifacts.

Q4:What’s the biggest hidden cost in rapid tooling?

Change orders caused by unclear assumptions. Draft, cosmetic standards, parting lines, and tolerance stack-ups need to be clarified early.

Q5:Should procurement choose the tooling type, or should engineering?

It’s a joint call. Procurement should own the commercial risk model (total cost + schedule), while engineering owns technical feasibility. A good rapid tooling service can support both by explaining tradeoffs in plain terms.
