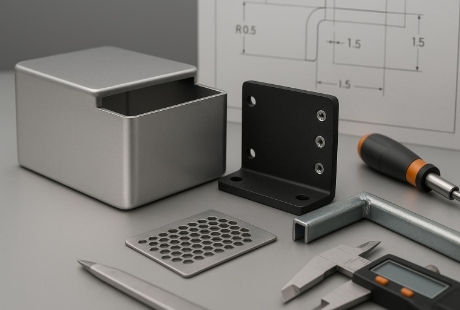

Sheet Metal Fabrication DFM — Enclosures, Brackets & EMI

Designing sheet metal parts is easier when you optimize for the job they actually do. Function-first thinking—enclosures that protect and interface, brackets that carry loads, frames that stay square, panels that shed heat, seams that block interference—turns vague “good practice” into concrete rules you can act on.

This guide organizes practical, vendor-validated advice by function and pairs it with compact DFM checklists you can use during reviews. The aim: reduce rework, shorten build cycles, and improve reliability without overengineering.

Key takeaways

• Treat DFM as function-specific: tolerances, finishes, and fastening choices vary for enclosures, brackets, frames, thermal paths, and EMI sealing.

• Bake in manufacturability early: choose realistic bend radii, hole spacing, and stack-up tolerances aligned with shop capability and ASME Y14.5 principles.

• Finishes are not cosmetic only: conductivity and emissivity often decide EMI and thermal performance.

• Control failure modes by design: prevent oil-canning, weld distortion, gasket under/over-compression, and thread strip-out with simple geometry and hardware choices.

Quick-reference: materials and finishes

DFM typical tolerances

DFM  bend radius and feature spacing

Enclosures and chassis

Enclosures protect internals, provide mounting and cable ingress, and often must meet ingress and EMC expectations. Requirements like NEMA or UL ratings influence seam design, gasket lands, and finish choices. For readers looking for deeper process context, here’s a neutral overview of cross-industry sheet metal fabrication services.

Micro-example

• A 2U electronics chassis needed better ingress protection and seam conductivity. The team specified 5052-H32 with inside radii at 1T to curb cracking, kept hole-to-bend at 3T + inside radius to avoid distortion, and used chromate conversion on mating flanges beneath powder coat to keep electrical contact. PEM nuts were installed using +0.08/0.00 mm holes for reliable assembly. The result: doors closed flush and seam leakage dropped measurably during verification—an example of practical sheet metal enclosures DFM in action.

Materials and finishes

• 5052-H32 for formability and corrosion resistance; CRS for cost and stiffness; 304/316 stainless for demanding environments. Use chromate conversion (MIL-DTL-5541) under paint when conductive seams matter; powder coat for durability; anodize where wear and corrosion resistance are important.

Typical tolerances and GD&T notes

• Keep to vendor norms for cut features (±0.10–0.25 mm), bend angles (±1° typical), and recognize looser stack-ups across multiple bends. Use datums on flat panels pre-bend; control perpendicularity/position on I/O faces; apply flatness to large covers referencing ASME Y14.5 principles.

Common failure modes

• Oil-canning on large panels, leaky seams from painted flange lands, thread strip-out in thin stock. Use ribs/returns, mask paint on gasket lands, and rely on self-clinching hardware where thread engagement is limited.

DFM checklist — Enclosures

• Keep hole-to-bend ≥ 2.5–3T + inside radius; hole-to-edge ≥ 2T (≥4T near corners).

• Choose inside bend radius ≥1T for 5052-H32 and ≈0.8–1T for mild steel to reduce cracking and springback.

• Add tabs/slots for self-fixturing; design fastener access to avoid hidden screws.

• Use PEM hardware with manufacturer hole tolerances (+0.08/0.00 mm typical) and respect min sheet hardness/thickness.

• Mask paint on gasket lands or use chem film/plating to maintain conductivity where EMI/grounding is needed.

• Provide continuous return flanges to stiffen doors and covers; add beads to reduce oil-canning on wide spans.

• Plan cable ingress with grommet clearances and strain reliefs; leave room for compression stops on molded gaskets.

• Reference flat panels as datums pre-bend; specify flatness on large cosmetic faces.

Brackets

Brackets carry loads and align interfaces. Designs often live or die on hole patterns and across-bend stack-ups. Keep hole-to-hole on one surface tight and relax tolerances across bends to reflect reality. For quick tolerance planning, focus on sheet metal brackets tolerances where one-plane features are held tighter than across-bend dimensions.

Materials and finishes

• CRS or HSLA steel for strength; 5052-H32 aluminum for light-duty and corrosion resistance; stainless where hygiene or environment demands. Zinc plate + chromate is common on steel; powder coat for durability; passivation for stainless.

Typical tolerances and GD&T notes

• Maintain 0.13–0.38 mm for same-plane hole patterns and 0.25–0.50 mm across bends. Control perpendicularity of flanges that locate to mating equipment; slot holes where needed to absorb stack-up.

Common failure modes

• Cracks at tight radii, elongated holes too near edges, and misalignment from cumulative bend error.

DFM checklist — Brackets

• Use inside bend radius ≥1T (steel may allow ≈0.8T); add bend reliefs to prevent tearing at corners.

• Keep hole center ≥2T from edges and ≥2.5–3T + inside radius from bends.

• Slot mounting holes in the across-bend direction to absorb variation; apply position with realistic MMC.

• Stiffen long legs with beads or short return flanges; consider HSLA to reduce thickness without losing strength.

• Specify perpendicularity on critical flanges and flatness on mounting pads where loads transfer through interfaces.

• Use PEM studs/nuts when sheet thickness can’t support threads; follow series-specific hole sizes from the manufacturer.

• Avoid small isolated tabs; use tab/slot features to self-fixture for welding if required.

Frames

Frames must stay square and flat under load, often after welding. Geometry and weld sequence decisions have outsized influence on distortion and final tolerance.

Materials and finishes

• CRS or stainless for strength and stiffness; aluminum extrusions with sheet gussets when weight matters. Powder coat is common; mask ground points as needed.

Typical tolerances and GD&T notes

• Specify flatness and perpendicularity over realistic zones (e.g., 0.2–0.5 mm over 300–600 mm depending on thickness and process). Reference datums before weld for internal features, then re-reference for post-weld machining if needed.

Common failure modes

• Angular and longitudinal weld distortion, accumulated positional errors from insufficient fixturing, and warpage during finishing bakes.

DFM checklist — Frames

• Prefer stitch/intermittent welds and balanced, alternating sequences to minimize heat input.

• Use robust fixturing and heat sinks near welds; pre-bend or preset to counter predictable pull.

• Minimize weld volume by replacing multi-piece joints with formed features or bolted connections where possible.

• Add gussets and returns to raise stiffness without over-thickening entire members.

• Plan post-weld straightening and verification; re-establish datums before any secondary machining.

• Keep access for torque tools and measurement; avoid trapped joints that are impossible to inspect.

Thermal management

Thermal sheet metal parts conduct heat to structure and air and can radiate meaningfully when convection is limited. Surface emissivity matters more than many teams expect. Engineering references list anodized aluminum emissivity around 0.77, while matte black coatings are commonly treated as roughly 0.95 in IR practice; verify on your actual finish and geometry.

Micro-example

• A sealed controller enclosure ran hot at low airflow. Without changing the footprint, the team added internal ribs to shorten conduction paths from hotspots to the enclosure wall, specified a high-emissivity matte black exterior, and tightened flatness on the TIM interface pads to improve contact. Temperatures dropped enough to pass reliability testing at ambient extremes.

Materials and finishes

• Aluminum (5052/6061) as the default for spreaders and enclosures; copper inserts for local hotspots; avoid low-emissivity shiny finishes when radiative cooling helps. For emissions, matte black paints/coats are typically high-ε; anodize is moderate. For more detail on finish selection tradeoffs, skim these shop-tested design guidelines.

Typical tolerances and GD&T notes

• Flatness on TIM mating faces; positional control on mounting holes for even contact pressure; stiffness to limit bowing under screw preload.

Common failure modes

• Poor contact pressure or area at interfaces, low-emissivity coatings trapping heat, and post-bend warping that opens gaps over time.

DFM checklist — Thermal

• Maximize conduction: use higher-conductivity alloys and thicker sections along the heat path.

• Shorten conduction distances with ribs, bosses, or bonded heat spreaders where practical.

• Specify flatness on TIM pads and control screw count/torque; consider PEM studs for repeatable preload.

• Choose high-emissivity exterior finishes when convection is limited; confirm emissivity assumptions for critical designs.

• Provide ventilation or honeycomb vents where airflow is viable without compromising EMI targets.

• Avoid dissimilar-metal couples without isolation; consider coatings or gaskets to prevent galvanic corrosion.

EMI shielding

EMI performance is ultimately systems engineering, but enclosure details decide pass/fail more often than not. Generic EMC standards in the IEC 61000 series outline emission and immunity expectations for many product classes; see the IEC Webstore overview of the generic emission standard for industrial environments for scope and methods. Gasket selection and compression are the heart of enclosure-level shielding and central to EMI shielding sheet metal design.

Materials, finishes, and components

• Maintain conductive mating surfaces with chromate conversion or plating on gasket lands; avoid insulating coatings in these areas. Use continuous gaskets (conductive elastomers, form-in-place, or fabric-over-foam), fingerstock where sliding contact is needed, and honeycomb vents for airflow.

Typical tolerances and GD&T notes

• Control flange flatness to achieve uniform gasket compression; place fasteners evenly to meet compression loads per vendor load–deflection curves. Add compression stops for molded-in-place seals.

Common failure modes

• Over/under-compressed gaskets, painted gasket lands breaking continuity, corrosion at dissimilar-metal interfaces, and too many seams with gaps.

DFM checklist — EMI

• Keep gasket lands conductive: mask paint or specify chem film/plating on mating flanges.

• Use continuous gaskets with no breaks at corners; design return flanges for overlap and shorter seam paths.

• Set fastener pitch to meet target compression from vendor load–deflection curves; add compression stops to avoid over-squeeze.

• Minimize seam count; use labyrinth joints and ensure multiple fasteners across long seams.

• Select gasket type to suit motion and service: fabric-over-foam for doors, form-in-place for complex flanges, fingerstock for sliding.

• For vents, use honeycomb media with frames that maintain bonding; consider orienting stacked layers at 90° to reduce polarization effects.

• Plan ground points and bonding straps early; keep coatings masked at those interfaces.

Where to go deeper

• For capability context and process selection, see our concise overview of sheet metal fabrication services.

• For more prescriptive rules and feature sizing, review the shop-tested design guidelines.

• To compare finish durability, conductivity, and appearance tradeoffs, scan this roundup of common surface finishing options.

A final note: if you need a manufacturability review or quick-turn prototype, teams often consult a vendor early. For a concise overview of capabilities and DFM support, please contact Kaierwo's expert technical team.
