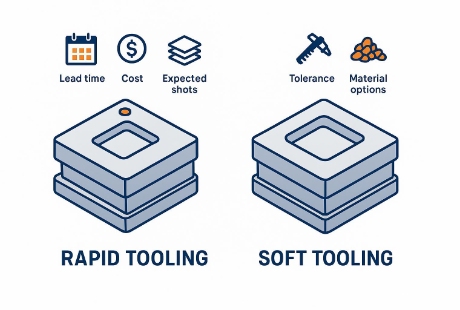

If you search “rapid tooling vs soft tooling,” you’ll see the same problem everywhere: people use the terms as if they’re interchangeable.
Sometimes they are. Sometimes they’re not.
The fastest way to get aligned is to stop arguing about the label and define what you need the tool to do: volume horizon, resin, CTQ features, cosmetic expectations, and how many ECOs you expect before design freeze.
“Rapid tooling” is primarily timeline-driven; “soft tooling” is primarily material/process-driven.
The terms overlap, and “soft tooling” can also mean silicone molds for casting—clarify scope early.
Your decision should start with CTQs, resin/fillers, change frequency, and volume horizon.
Protect CTQs with inserts, steel-safe allowances, and an agreed measurement + FAI plan.
Lead time is usually lost in the DFM/sampling loop, not the machining step—plan DFM → T1 → T2 intentionally.

Decision factor | Rapid tooling (timeline-driven) | Soft tooling (material-driven) | What to do with this |
|---|---|---|---|
What it usually means | Tooling produced fast so you can mold parts in days/weeks | Tooling made from “softer” materials to reduce cost/time | Treat these as overlapping sets, not two boxes |
Common injection mold materials | Aluminum or pre-hardened steels; sometimes hybrid (steel inserts) | Aluminum / softer steels; can also mean non-injection silicone molds in some contexts | Ask: injection molding tool or silicone/vacuum casting mold? |
Best fit | When schedule is the constraint and you need molded parts quickly | When cost + iteration speed matters more than tool life | Choose based on risk and change rate |
Change friendliness | High (you’re optimizing for iterations) | High to medium (depends on how the tool is built) | Plan for DFM + T1/T2 loops |
Tool life & capability | Depends heavily on resin, fillers, and process window | Same: material drives wear, deflection, and venting stability | Put tool-life expectations in the RFQ as “target horizon,” not a promise |
Typical failure mode | Rushing DFM → surprises at T1 | Assuming “soft” means “close enough” for CTQs | Protect CTQs with inserts, gaging plan, and FAI |
Key Takeaway: “Rapid tooling” is about how fast the tool is built. “Soft tooling” is about what the tool is made from (and sometimes which process you’re using). Your decision should be based on CTQs, resin, iteration rate, and volume horizon—not terminology.
Engineers say “soft tooling” in two very different ways:
Soft tooling for injection molding: usually aluminum or a softer steel mold intended for prototyping, bridge tooling, or low-volume manufacturing.
Soft tooling for casting processes: silicone (or other flexible) molds used for vacuum/urethane casting. This is not injection molding, and the constraints are different.
If the team isn’t explicit about which one you mean, you’ll get the wrong quote, the wrong lead time expectation, or the wrong tolerance conversation.
A practical rule: if your part is going to be injection molded in production material, start by assuming “soft tooling” means a metal injection mold unless you explicitly choose vacuum casting as your production method for that build.
For context on process tradeoffs, this internal comparison of vacuum casting vs injection molding is a useful reference when you’re deciding whether you even need an injection mold yet.
“Rapid tooling” is best understood as a delivery objective: you’re asking for a tooling approach and a supplier workflow optimized for speed.
In injection molding, rapid tooling typically means:
a tool design that minimizes complexity where it doesn’t buy you functional value
an aggressive DFM loop (fast feedback, fast revision)
early sampling (T1) with controlled expectations
planned iteration (T2/T3) focused on CTQs and cosmetic surfaces
In other words, rapid tooling is less about the CAD screenshot and more about the system: quoting, DFM discipline, machining capacity, and a sampling plan that doesn’t pretend the first shot is production-ready.
If you’re mapping services, Kaierwo groups rapid tooling under its injection molding capabilities, which is the right mental model: rapid tooling is usually in service of rapid injection molding.
Here’s the decision logic that usually wins in practice:
If you expect multiple ECOs (geometry changes, gate location changes, cosmetic tweaks), you want a tool strategy that’s cheap to modify.
If you’re confident the design is stable and you’re chasing repeatability, you want durability and process stability.
That’s why “soft” and “rapid” often cluster together early in NPI.
You’re proving fit/function and need production-like parts fast.
You need low-volume parts for pilot builds, internal testing, or early customer trials.
Your risk is schedule slip from redesign cycles, not tool wear.
Your CTQ features are set, and variation is now more expensive than tooling cost.
You’re seeing wear-driven issues (flash increasing, dimensions drifting, surface degradation).
Your expected demand makes it irrational to keep iterating on a tool that was built to be modified.
This isn’t about a magic part count. It’s about what’s most expensive for you: another tool build, or another round of bad parts.
Tool material decisions get real when you talk about resin and additives.
A tool that behaves nicely with an unfilled commodity resin can struggle when you switch to:
glass-filled materials
abrasive fillers
higher melt temperatures
tighter process windows
That’s why you should describe the material honestly in your RFQ—grade, filler %, and any critical mechanical or cosmetic requirements.
Aluminum molds can be excellent for fast turns and iteration. They machine quickly and often support rapid sampling.
But “aluminum = fine” isn’t a safe assumption for every part. The risks increase when you have:
thin walls with long flow lengths
high injection pressures
abrasive or high-temp resins
tight dimensional coupling between multiple CTQs
If you’re specifically considering aluminum rapid injection tooling, Kaierwo’s page on aluminum rapid tooling for injection molding is a relevant internal jump-off point for capability framing.
Warning: Don’t let “prototype tool” language lower your standards on CTQs. If a feature is CTQ, treat it like CTQ from T1 onward: insert strategy, gaging plan, and a clear acceptance method.
Most “rapid tooling vs soft tooling” debates are actually tolerance debates.
If your part has CTQ features (critical-to-quality)—press fits, sealing surfaces, optical features, datum-to-datum relationships—you need to decide what “good enough” means at each stage:
T1: confirm fill, basic shrink behavior, major interferences, and gross warpage risks.
T2: focus on CTQs, gating/venting refinements, localized steel-safe changes.
Later samples: prove repeatability with a defined process window.
Use steel inserts where you need wear resistance or tighter local tolerances.
Keep CTQ surfaces away from parting lines where flash risk is high.
Request steel-safe stock on geometry you expect to tune.
Align on the measurement method early (CMM vs pins vs optical) so you’re not “arguing with metrology.”
If you care about documentation, ask explicitly for a first article inspection (FAI) package on CTQs. Even in early builds, a lightweight FAI can catch problems before you burn weeks.
Cosmetics make soft/rapid tooling decisions harder.
A lot of teams underestimate how sensitive texture and gloss are to:
venting quality
surface prep and polish discipline
resin drying and processing
gate blush and flow lines
If cosmetics are critical, write it down and set the sampling expectation:
which surfaces are “Class A”
what defects are acceptable at pilot stage
what you need to evaluate in T1 vs what can wait
Most lead time surprises come from everything around “cutting metal”:
unclear RFQ inputs → quoting delays
incomplete DFM loop → late changes
unstable part design → tool changes after machining starts
missing gage plan → “we can’t verify this” cycle
A workable rapid-tooling loop usually has three disciplined gates:
DFM review: confirm parting line, draft, gates, ejection, vents, and steel-safe areas.
T1 sampling: prove basic fill + identify predictable issues.
T2 sampling: close CTQs and cosmetic requirements.
You don’t need to name these T1/T2 if your supplier uses different labels, but you do need the logic: sample, measure, change, re-sample.
If your tool is being CNC machined (common for rapid/soft metal tools), it’s worth understanding upstream capabilities. Kaierwo’s explainer on what CNC machining is used for gives the broad view of why CNC becomes the backbone of fast tooling and iterations.
A clean mental model is:
Prototype tooling: validate form/fit; may prioritize speed over durability.
Bridge tooling: produce enough parts to support pilot builds and early market demand while production tooling is built (or while design stabilizes).
Production tooling: optimize for repeatability, cycle time, and long tool life.
Rapid tooling and soft tooling can be used for prototype tooling and bridge tooling. The difference is what you optimize for:
Rapid tooling: optimize for schedule and iteration.
Soft tooling: optimize for low-cost changes and lower initial investment (sometimes at the expense of tool life).
For broader process selection during low-volume phases, Kaierwo’s overview of low-volume manufacturing for custom production fits naturally as a supporting internal read.
Ask how venting will be handled and where the parting line is proposed.
If flash is unacceptable on a CTQ surface, require the supplier to propose a different split or add localized inserts.
Ask what tool material is being used in the cavity/core and where steel inserts will be used.
Ask what measurement method will be used for CTQs and what the acceptance criteria are.
Ask how the supplier will approach shrink and warpage compensation.
Ask whether they will propose geometry changes (ribs, wall transitions) during DFM.
Ask for a DFM review before tool build starts.
Ask for an explicit CTQ list and which CTQs the supplier believes are high risk.
Use this as a starting point. It’ll reduce ambiguity and speed up your DFM loop.
CAD: STEP + native file if available
Resin: exact grade (and filler %), color, any UL requirements
Expected environment: temperature, chemical exposure, UV (if relevant)
CTQ list: dimensions + GD&T callouts + functional requirements
Cosmetic zones: Class A surfaces and allowed defects
Measurement method: CMM/fixtures/pins/optical + reporting format
Requested deliverable: FAI on CTQs (even if lightweight)
Target volume horizon for this tool (prototype vs bridge)
Expected ECO rate (how many changes you anticipate)
Desired sampling gates (DFM → T1 → T2) and timeline expectations
Insert strategy request for wear-prone or CTQ features
Part quantity per sample run
Secondary ops: inserts, tapping, ultrasonic welding, etc.
Surface finish requirements and inspection points
Pro Tip: If you want the tool to be “fast” and “capable,” make the trade explicit: “Optimize for lead time, but do not compromise CTQs. Propose inserts or localized steel where needed.”
If you want a second set of eyes before you commit, a good next step is to turn your CTQ list + resin choice into a one-page tooling brief (parting line assumptions, insert strategy, and sampling gates). Teams working with Kaierwo often bundle that brief with a DFM-first request so the quote and the sampling plan stay aligned with the real risks—not just a target lead time.
Note: Kaierwo’s capabilities and certifications can vary by program and requirements—confirm specifics (materials, tolerances, documentation package) in the RFQ.
