CNC Machining for Robotics Components: Why Precision Matters

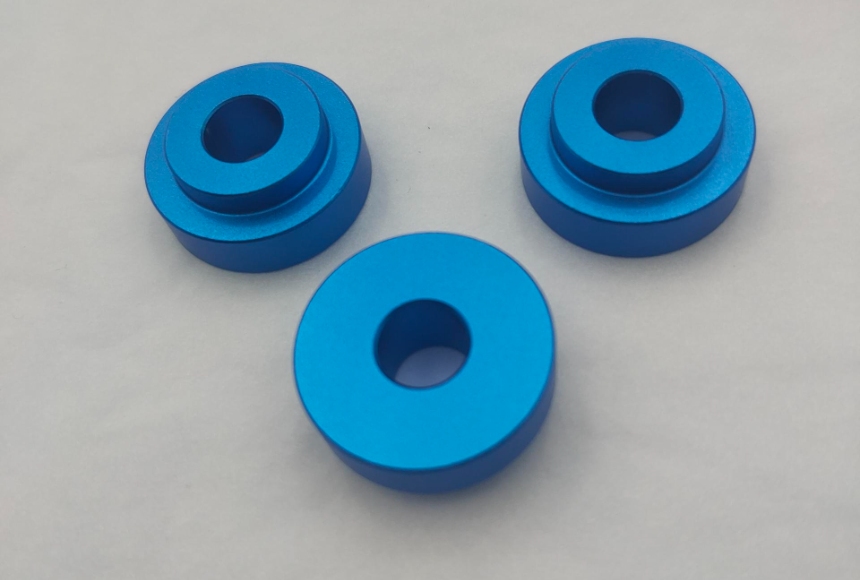

CNC machining for robotics components produces accurate, repeatable, stiff, and durable parts for joints, bearing interfaces, structural links, mounts, housings, and end effectors. In a robot, small dimensional errors can accumulate through the kinematic chain, causing backlash, vibration, calibration drift, uneven wear, and reduced positioning accuracy. I use CNC machining when a robotic part must maintain its geometry across repeated motion cycles, controlled loads, and defined assembly interfaces.

Key Takeaways

• CNC machining supports accurate robot joints, housings, links, mounts, shafts, grippers, and sensor interfaces.

• Tolerance stack-up can amplify small interface errors across multiple robotic axes and reduce end-point accuracy.

• Aluminum, stainless steel, engineering plastics, and composites each serve different payload and environmental requirements.

• A suitable manufacturing process depends on function, load, cycle count, volume, tolerance, material, and inspection needs.

• kaierwo supports robotic prototyping, low-volume production, surface finishing, and larger production programs from one supplier.

What You Need Before Starting

Before requesting custom machined parts for automation systems, I recommend preparing more than a 3D model. The manufacturer should receive a dimensioned drawing, material specification, surface-finish requirement, critical tolerance callouts, thread information, assembly references, and expected production quantity. These details allow the machining team to evaluate tooling access, fixture design, datum selection, inspection methods, and production cost before cutting material.

The design package should also identify the robot’s operating conditions. Payload, acceleration, cycle count, temperature range, exposure to coolant or chemicals, lubrication method, and expected service life all influence material and process selection. A bracket used for a laboratory prototype may tolerate a different design approach from a joint housing operating continuously in a factory.

I also separate functional tolerances from non-functional tolerances. Applying a tight tolerance to every surface can increase machining time, inspection work, and part cost without improving robot performance. The drawing should identify bearing seats, dowel holes, gear interfaces, actuator mounts, and locating surfaces as critical features.

Step 1 — Define the Robotic Component’s Function

The first step is to describe what the part does in the robot rather than only what the part looks like. A structural link transfers load between joints, while a bearing housing controls rotation, a gripper finger applies contact force, and a sensor mount preserves the position of a measurement device. Each function requires a different balance of stiffness, weight, wear resistance, dimensional accuracy, and surface finish.

Common CNC-Machined Robotics Components

For robotic arms and end effectors, I normally review the load path first. A lightweight aluminum arm may reduce motor demand, but a thin wall can deflect under acceleration. A stainless-steel shaft may resist wear and bending better, but its density increases moving mass and can affect motor sizing.

Step 2 — Set Precision Tolerances for Robotic Components

The second step is to identify the interfaces that control motion. Precision tolerances for robotic components matter because the robot does not operate through one isolated part. It operates through a connected chain of bearings, shafts, gearboxes, brackets, links, couplings, and end-effectors.

Why Precision Matters in CNC Machining for Robotics Components

A bearing seat that is slightly oversized can create looseness, while an undersized seat can introduce assembly stress or bearing damage. A bolt pattern that is shifted can change actuator alignment, and a mislocated dowel hole can force the next component away from its intended datum. When these errors appear across several joints, the final tool-center-point error can become much larger than the error in any individual part.

I evaluate tolerance stack-up by tracing each critical interface from the robot base to the end effector. The analysis should include hole position, bearing-seat diameter, shaft runout, parallelism, perpendicularity, flatness, gear center distance, and mounting-surface orientation. It should also include assembly clearance and the adjustment range available during calibration.

Thermal expansion must be included when the robot operates near heat sources or in changing temperatures. Aluminum expands more per degree than steel, so an aluminum housing and steel shaft can change their relative fit as temperature changes. If the robot repeatedly moves between a cool inspection area and a warm production cell, the design may require additional clearance, temperature compensation, or material pairing.

Calibration drift is another system-level issue. If a mounting surface gradually wears, a fastener joint settles, or a bearing interface develops clearance, recalibration may restore accuracy temporarily but will not correct the underlying mechanical change. I therefore treat inspection records and wear monitoring as part of the mechanical design rather than as separate quality activities.

Practical Tolerance Guidance

The appropriate tolerance depends on the feature and the robot’s function. Kaierwo describes CNC machining capability down to approximately ±0.005 mm for selected applications and reports tolerance examples of ±0.01 mm for precision parts, but these values should not be assigned to every feature automatically. The final tolerance must be confirmed against material, geometry, machine capability, inspection method, and production volume.

Step 3 — Select the Material and Manufacturing Process

The best CNC machining materials for robotics depend on payload, speed, wear, environment, and production volume. I do not select material by strength alone. I compare density, stiffness, machinability, corrosion resistance, thermal expansion, surface treatment, friction behavior, cost, and expected maintenance requirements.

Aluminum CNC Machining for Robotics

Aluminum is commonly used for robot arms, frames, housings, motor mounts, and sensor brackets because it combines low density with useful stiffness and machinability. It can reduce moving mass, which may help lower actuator demand and improve acceleration response. Anodizing can add surface protection and provide a controlled appearance, but the drawing should distinguish cosmetic requirements from functional requirements.

For prototype links and housings, aluminum is often practical because it can be machined quickly in three-axis, four-axis, or five-axis configurations. However, thin aluminum walls can deform during clamping or under operating load. I specify ribbing, uniform wall sections, generous internal radii, and suitable datum surfaces when the design requires stiffness.

Stainless Steel

Stainless steel is useful for shafts, pins, joint hardware, load-bearing interfaces, and components exposed to moisture or cleaning chemicals. It provides greater density than aluminum, so it may be unsuitable for long moving links where inertia is a major concern. Its machining behavior also requires appropriate tooling, cutting parameters, and chip control.

Engineering Plastics

Nylon and other engineering plastics can serve as bushings, cable guides, wear pads, protective covers, and low-load gripper components. Nylon offers low friction and useful wear characteristics, but it absorbs moisture and can change dimensions with humidity. For precision interfaces, I confirm the operating environment and consider whether a filled grade or a different plastic is more stable.

Carbon-Fiber and Composite Structures

Carbon-fiber components can reduce mass in long robotic links, but they often require machined metallic inserts, bonded interfaces, or precision end fittings. CNC machining may be used for those inserts and mounting adapters rather than for the entire composite structure. The design must account for local crushing, fastener loads, galvanic interaction, and repeatable assembly.

Step 4 — Choose the Appropriate CNC Process

Three-axis milling is suitable for many brackets, plates, housings, and flat structural parts. Four-axis and five-axis machining become useful when a component has multiple angled faces, deep access features, compound surfaces, or strict positional relationships that would otherwise require several setups.

Turning is appropriate for shafts, spacers, pins, collars, and rotational components. EDM or wire EDM may be selected for narrow slots, hardened materials, or geometries that are difficult to produce with conventional cutting tools. Surface grinding can improve flatness and parallelism on precision mounting faces.

I also compare CNC machining with 3D printing. CNC machining generally provides better dimensional stability, stronger finished surfaces, and more predictable interfaces for bearings, threads, dowels, and fasteners. 3D printing can reduce initial tooling requirements and support complex internal forms, but printed parts may show anisotropic strength, layer-related surface variation, thermal distortion, or lower wear resistance.

Step 5 — Validate Stiffness, Alignment, and Repeatability

Dimensional accuracy alone does not guarantee robot performance. A component can meet drawing dimensions but still deflect under load, vibrate at operating speed, or lose alignment because the cross-section is too flexible. I review finite-element results, bearing preload, fastener arrangement, support spacing, and load direction before finalizing the machining plan.

Repeatability should be checked at the assembled-system level. For example, a gripper body may be dimensionally accurate, but the jaws can still close unevenly if the actuator mount is tilted or the guide surfaces are not parallel. A robot arm link may meet length tolerance while producing unwanted end-point motion if its joint faces are not square.

Inspection documentation should match the risk of the component. Critical parts may require a coordinate measuring machine report, material certificate, surface-finish measurement, thread inspection, first-article documentation, and visual checks for burrs or tool marks. For non-critical covers, a simpler dimensional inspection may be sufficient.

A Practical Decision Matrix for Robotic Parts

I use the following matrix to connect component function with process choice. It prevents the common mistake of selecting the same material, tolerance, and production method for every part in a robot.

Production volume changes the economic decision. For one to ten parts, CNC machining may provide the shortest route to a functional prototype. At higher quantities, I compare machining time, fixture investment, inspection cost, secondary operations, and alternatives such as injection molding, die casting, or sheet-metal fabrication.

Step 6 — Choose a CNC Machining Partner for Automation and Robotics

When choosing a CNC machining service for robotic parts, I assess technical coverage rather than relying on a general supplier description. The supplier should demonstrate experience with bearing housings, actuator mounts, structural links, grippers, sensor brackets, and other robotic components that require controlled interfaces.

I also ask how the supplier manages drawings, revisions, material certificates, inspection reports, surface finishing, packaging, and replacement parts. These records reduce the risk of receiving a visually acceptable component that does not match the approved revision. For a robot deployed at multiple sites, repeatable spare-part production is especially important.

Kaierwo presents a robotics manufacturing service covering industrial robots, medical robots, service robots, and logistics robots. Its published capabilities include CNC milling, turning, five-axis machining, EDM, wire EDM, surface grinding, 3D printing, sheet-metal fabrication, and finishing. The company states that it supports projects from single prototypes through larger production programs, with more than 40,000 completed CNC projects, a factory area exceeding 6,000 square meters, and a workforce described on its company information pages as more than 150 to 200 employees and technicians.

For robotics projects, Kaierwo also describes no minimum order quantity for selected robot parts, prototype-to-production support, and machining tolerances reaching approximately ±0.005 mm for certain applications. I would still request a capability review for each specific feature, because achievable tolerance depends on geometry, material, datum strategy, machine setup, and inspection equipment.

Lifecycle Cost, Maintenance, and Total Cost of Ownership

The purchase price of a machined component is only one part of its cost. A lower-priced part can create additional expenses if it requires rework, repeated calibration, manual fitting, unplanned downtime, or accelerated replacement. I compare suppliers using total cost of ownership rather than unit price alone.

A practical model is:

Total cost = purchase price + inspection cost + rework cost + calibration cost + downtime cost + spare-part cost

For example, if a misaligned bracket requires four hours of technician labor, two hours of robot downtime, one replacement shipment, and a new calibration cycle, the actual cost can exceed the original machining difference between two suppliers. The exact amount depends on labor rates, robot utilization, production value, and service requirements, so I calculate it using the project’s own operating data.

Inspection documentation can reduce future maintenance cost by creating a baseline for replacement parts. If the original bearing housing includes measured bore size, position, flatness, and material information, a later replacement can be compared against the same criteria. This supports more consistent assembly and reduces trial-and-error fitting.

I also recommend ordering a controlled spare-part quantity for components that are difficult to remove or that stop production when damaged. For high-cycle robots, a documented spare strategy may cost less than emergency machining after a failure. The supplier should retain drawing revisions and process notes so future batches do not restart the engineering review from zero.

Conclusion

CNC machining for robotics components is valuable when a robot requires controlled interfaces, repeatable motion, structural stiffness, and reliable operation over many cycles. I start by defining each component’s function, then evaluate tolerance stack-up, thermal expansion, calibration drift, material behavior, machining access, inspection needs, and production volume. This approach prevents isolated part specifications from creating system-level alignment errors.

For most robotic prototypes and low-volume systems, aluminum CNC machining is a practical starting point for links, housings, mounts, and end effectors. Stainless steel suits shafts, pins, and high-wear interfaces, while engineering plastics can serve guides, bushings, and low-load contact parts. CNC machining is generally preferable to 3D printing for precision bearing seats, threads, dowel interfaces, and repeated mechanical loading, although both processes can serve different development stages.

When comparing suppliers, I would request a design review, material confirmation, tolerance capability assessment, inspection plan, surface-finish options, production schedule, and spare-part strategy. Kaierwo may fit projects that require robotics prototypes, custom machined parts for automation systems, surface finishing, and a path from single-piece development to larger production quantities.
