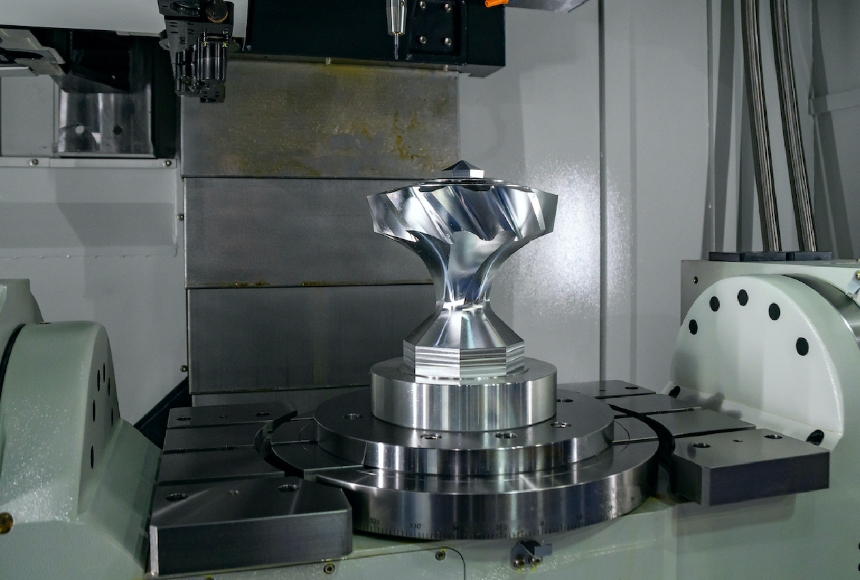

CNC Machining Brass: Design, Threading, Burr Control, and Inspection

CNC machining brass is often chosen when a project needs machinability, corrosion resistance, electrical performance, a warm metallic appearance, or low-friction contact. Brass alloys do not behave identically in a CNC process. A successful brass CNC machining project starts with the grade, condition, geometry, thread design, edge requirements, finish, and inspection method.

This guide explains how to approach CNC machining brass for functional and appearance-sensitive parts. It focuses on design and procurement decisions rather than promising one universal process result.

Free-cutting brass is used for turned and machined components when the grade and process are appropriate. Brass can also offer useful corrosion resistance, electrical conductivity, and a recognizable metallic appearance. These properties make brass CNC parts relevant to terminals, fittings, valve components, hardware, instruments, and decorative components.

The practical question is whether the selected grade supports the part’s mechanical, electrical, environmental, and cosmetic requirements. A grade that works for repeated turned details may not suit forming, marine exposure, joining, or a visible polished surface.

C260 is commonly described as a ductile cartridge brass, while C360 is known as free-cutting brass for machining. Other grades may be considered for marine, forming, or special functional requirements. These descriptions are starting points, not substitutes for a material specification. Before starting CNC machining brass, identify the standard, grade, condition, and any restriction on lead-containing or lead-free alloys.

A ductile grade may suit a part that needs a balance of formability and general-purpose performance. A free-cutting grade may suit a design with many machined features, threads, grooves, or repeated turned details. The best choice depends on the part, not on a claim that one brass is always superior.

A brass CNC parts supplier should receive the intended grade in the drawing rather than a general note saying “brass.” If substitution is acceptable, define which properties must remain unchanged because hardness, color, thread behavior, finishing response, and inspection results can change.

Record the material clearly when a prototype will guide the next design decision. State the standard, certificate, lot traceability, and substitution limits when they matter.

Brass is machinable, but the part still needs a practical setup. Deep pockets, narrow slots, small internal radii, and hidden features can create tool-access problems or require more operations. More operations add datum and alignment decisions. Design for brass machining should therefore consider workholding, reference surfaces, tool access, and inspection access.

Internal corners should allow for the radius produced by a rotating tool. If a sharp corner is functionally necessary, the drawing should explain the requirement and the supplier should confirm the process route. A small radius, chamfer, or relieved corner may solve an access problem without changing the part’s function.

A hole is defined by more than its diameter: depth, position, intersections, edge condition, and assembly relationship may matter more. Grooves and thin sections can affect tool rigidity, chip evacuation, and deburring. Identify mating features and surfaces that must remain free of dents or raised burrs.

Brass is often used for threaded components, inserts, fittings, and fastener-related parts. The thread specification should include the system, nominal size, pitch, fit where applicable, depth, start condition, and whether it is internal or external. A model that shows only a generic hole does not communicate the acceptance requirement for CNC threaded brass parts.

A softer or more ductile brass can respond differently from a free-cutting grade during tapping, drilling, or repeated assembly. Thread engagement, wall thickness, tightening load, and assembly cycles should be reviewed together. A thread that can be cut will not automatically withstand the intended service.

Blind tapped holes need space below the usable thread for tool clearance and chips. Through holes may simplify evacuation but can affect the opposite face.

Distinguish a functional thread from a cosmetic or alignment thread. State the expected fit and inspection method, and ask how damaged starts, incomplete threads, or entry burrs will be treated.

Brass often machines cleanly, but burrs can appear where a tool exits a hole, crosses an interrupted surface, or leaves a thin edge. Burr size may change with material condition, tool sharpness, workholding, tool direction, and geometry. “Easy to machine” does not remove the need for an edge-control plan.

Identify where a burr would affect assembly, sealing, electrical contact, handling, or appearance. Those edges should be treated as critical instead of applying the same deburring approach everywhere.

Manual deburring, brushing, tumbling, abrasive finishing, or controlled edge breaking may suit different parts. The choice depends on access, quantity, surface requirements, and allowable material removal. A broad deburring instruction may be too vague for a precision mating surface.

For visible brass CNC parts, state whether a small chamfer, broken edge, or smooth transition is acceptable. If a burr must not remain inside a passage or thread, connect that requirement to cleaning and inspection.

Turning is usually suitable for cylindrical parts, shafts, threaded bodies, bushings, and rotational features. Milling is more suitable for flats, pockets, slots, non-rotational faces, and multiple datums. Live tooling can combine some turned and milled features, but the exact geometry determines whether one setup is practical.

The CNC machining brass method should follow the dominant geometry. A cheaper-looking lathe or mill can create extra fixtures, transfers, or inspection work.

As-machined brass can look attractive, but tool marks and variation between operations may remain visible. Polishing, buffing, brushing, clear coating, plating, or another finish may suit appearance, corrosion exposure, or contact behavior. Finishing can change dimensions, so consider it before finalizing critical dimensions.

For brass machining design, identify visible faces, contact areas, masked zones, and desired color or gloss. An approved reference is more useful than “high quality finish.”

Inspection begins with the drawing. Critical diameters, hole locations, thread features, flatness, runout, and mating surfaces should be measured from the functional datums used to define the part. A report is meaningful only when the measurement method and acceptance criteria are clear.

For turned brass parts, diameter and runout may be central. For milled brass CNC parts, evidence may instead be a hole pattern, pocket position, flatness, or relationship between faces. One inspection method cannot answer every prototype question.

Thread gauges, mating hardware, visual inspection, and dimensional measurement can play different roles. A thread may have the correct nominal diameter but still fail because of damaged starts, incorrect depth, poor fit, or contamination. Burr inspection should focus on entry and exit edges, internal passages, mating faces, and locations touched by an operator or electrical contact.

Record material and finish evidence when comparing a prototype with a later batch; state what was checked, not merely that the part was inspected.

A useful request for quotation for CNC machining brass combines the CAD model, drawing, material grade, quantity, thread details, critical dimensions, finish, inspection, packaging, and application. The application can stay general but should identify features controlling fit, function, appearance, or safety.

A fitting may prioritize thread fit and a clean passage; a decorative handle may prioritize color, polish, edge comfort, and repeatability. Both need different manufacturing assumptions.

A brass CNC machining quotation may include only cutting, or it may include documentation, deburring, polishing, plating, inspection, packaging, and delivery coordination. The quote should make those boundaries visible. A lower first price is not meaningful if it excludes the finishing or inspection needed for the prototype test.

CNC machining brass can suit terminals, fittings, valve components, threaded hardware, bushings, instrument parts, decorative components, and other designs that benefit from machinability, appearance, corrosion behavior, or electrical properties. The grade and finish still need to match the application.

A different brass grade, copper alloy, aluminum, stainless steel, engineering plastic, casting method, or additive process may be worth considering when the project is driven by weight, heat, strength, forming, complex internal geometry, or production quantity. Material selection should follow the service condition rather than the word “brass” in the initial request.

For the broader supplier-evaluation context, the related article Top 10 CNC Prototyping Services for Plastic and Metal Parts can connect this material-specific guide to the wider CNC prototyping service decision.

Many grades used for CNC machining brass are machinable, but behavior depends on alloy, condition, geometry, toolpath, workholding, and finish. “Easy to machine” is not a universal promise of burr-free edges, fixed cycle time, or identical results across grades.

There is no single best grade for every part. C360 is commonly associated with free-cutting machining, while C260 is often selected when ductility matters. The correct grade depends on strength, forming, corrosion, electrical, appearance, thread, and documentation requirements.

Identify tool-exit edges, thin sections, holes, grooves, and threads that matter to the assembly. Then review tool access, cutting direction, edge breaks, deburring, cleaning, and inspection together. Burr control should protect critical surfaces rather than remove material indiscriminately.

Include the complete material grade, CAD model, drawing, quantity, thread specifications, critical dimensions, finish, inspection expectations, packaging, and project purpose. Clear application context helps the supplier recommend a process without guessing which features are important.

CNC machining brass works best when material selection, part design, threading, burr control, finishing, and inspection are treated as one connected decision. A machinable alloy does not remove the need for a clear drawing or a functional acceptance plan. Define the part’s purpose first, then choose the brass grade and manufacturing approach that can produce evidence the next design decision can trust.
