Sheet metal processing—often called sheet metal fabrication—is how manufacturers turn flat metal sheets into durable parts and enclosures by cutting, bending/forming, joining, and finishing them in sequence. Think of it as a set of building blocks that, when arranged correctly, produce everything from server racks to aircraft panels and medical device housings.
Sheet metal processing combines cutting, forming, joining, and finishing to turn flat sheets into working parts.
Common routes include laser or waterjet cutting, press‑brake bending, welding or fasteners, and surface finishing such as passivation or powder coating.
A one‑stop workflow de‑risks scale‑up: start with DFM, prototype with production‑like methods, add fixtures/tooling, then validate with first‑article and sampling.
For medical device enclosures, cleanliness and traceability drive choices for materials, finishes, packaging, and documentation.
Choosing realistic design rules (bend radius, flange width, hole spacing) avoids delays and rework.
Sheet metal processing (sheet metal fabrication) is the multi‑stage manufacturing of parts from flat metal sheets via cutting (e.g., laser, waterjet, shearing, punching), bending and other forming, joining (e.g., welding, fasteners), and secondary finishing, coordinated to achieve the design’s geometry, function, and appearance.
If you want a deeper service overview, see Kaierwo’s concise explainer of capabilities in its Custom Sheet Metal Fabrication Service page.
A typical shop orchestrates these families in sequence. The exact route depends on thickness, alloy, tolerances, and volume.
What it is: Methods that separate material to create blanks and features. Lasers melt/vaporize along a CNC path; waterjets cold‑cut with an abrasive stream; shearing makes straight cuts.
When to use: Laser for thin‑to‑medium sheets and intricate geometry; waterjet for heat‑sensitive or thicker materials; shearing for fast, straight edges on standard blanks.
Trade‑offs: Lasers are fast with fine features but create a small heat‑affected zone; waterjet avoids heat but can be slower on thin sheet; shearing is limited to straight lines.
What it is: Punch presses make holes, slots, and louvers; stamping dies (including progressive tools) cut and form features at high speed.
When to use: Punching is efficient for repeated hole patterns; progressive stamping shines once geometry is frozen and volumes justify tooling.
Trade‑offs: Upfront tooling cost for stamping; incredible throughput later.
What it is: Press‑brake bending, roll forming, flanging, hemming, and deep drawing reshape the sheet without removing chips.
When to use: Boxes, brackets, and enclosures rely on press‑brake bends; deep drawing suits cup‑like shapes.
Trade‑offs: Bending introduces springback (parts open slightly after the load is removed).
What it is: Welding (MIG/TIG/spot), fasteners (screws, rivets, clinch nuts), and structural adhesives bring parts together.
When to use: Pick based on strength, appearance, heat tolerance, and service environment.
Trade‑offs: Welding adds heat and potential distortion; mechanical fasteners simplify service and reduce heat input.
What it is: Deburring, cleaning, and cosmetic/protective finishes like passivation for stainless, anodizing for aluminum, powder coating, or painting.
Why it matters: Finishes influence corrosion behavior, cleanability, and appearance—key for medical enclosures.

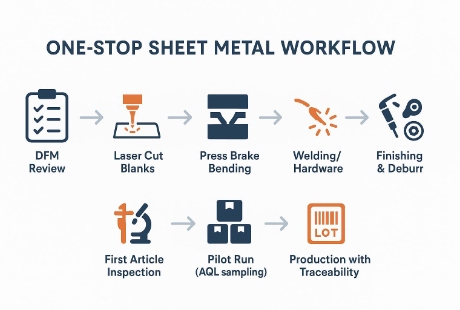

DFM review and scope
Share a 3D model, flat patterns, and a simple 2D drawing that marks critical‑to‑quality (CTQ) dimensions and inspection points. Keep bend radii, flange widths, and hole‑to‑edge distances realistic for your thickness.
Prototype using production‑like methods
Laser‑cut blanks and press‑brake bends yield functional prototypes. Add tack welds or hardware to verify fit and assembly. Trial finishes on coupons if appearance and cleanability matter.
Fixtures, tooling, and repeatability
Simple weld and bend fixtures lock datums and reduce variability. Once demand stabilizes, consider progressive dies or dedicated fixtures for cycle‑time and consistency gains.
Pilot build and capability checks
Run a small batch and measure CTQs to confirm the process holds target dimensions and angles consistently. Where applicable, complete a First Article Inspection (FAI/FAIR) package before ramp.
Sampling plans and acceptance
For ongoing lots, attribute sampling based on an Acceptance Quality Limit (AQL) is common. ISO 2859‑1 defines standardized AQL plans; quality bodies like ASQ and ISO describe how lot size, inspection level, and AQL interact (see the ISO Online Browsing Platform for ISO 2859‑1).

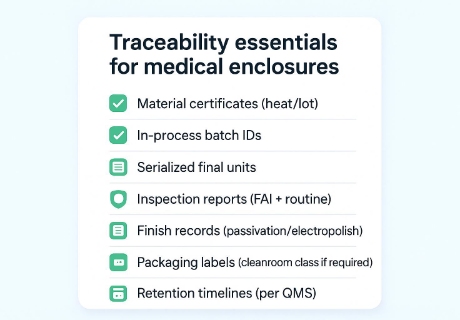

Traceability and documentation
Define lot controls early. Link material certificates, in‑process batch IDs, inspection records, and final serials. The FDA’s 2024 final rule harmonizing its Quality Management System Regulation (QMSR) with ISO 13485:2016 underscores record controls and traceability.
In practice, a one‑stop partner can simplify hand‑offs, prototypes, and inspections. For example, a partner like Kaierwo can support laser cutting → bending → welding → finishing for early builds and coordinate inspections before scaling.
A stainless steel enclosure for a benchtop device highlights how material and finish choices tie to hygiene and documentation.
Materials and finishes
304/316L stainless are common for corrosion resistance and cleanability. Chemical passivation enhances the chromium‑rich passive layer; electropolishing further smooths surfaces to improve cleanability. These are specified in standards such as ASTM A967/A967M for passivation and ASTM B912 for electropolishing.
Cleanroom handling and packaging
For assembly or packaging steps that must be particle‑controlled, teams reference cleanroom classes under ISO 14644‑1, with monitoring and operational guidance elsewhere in the series.
Traceability expectations
ISO 13485‑aligned systems and the FDA’s QMSR emphasize documented, risk‑based controls for cleanliness and robust traceability records rather than prescribing a single cleanroom class for every enclosure.
Typical pitfalls and simple fixes
Tight holes near bend lines that warp during forming → move holes at least two thicknesses away or pierce after bending.
Weld distortion creating leaks or misalignment → use fixtures, alternate weld sequences, and verify flatness after tack/finish.
Finish choices that do not tolerate cleaning agents → validate passivation/electropolishing on coupons and review cleaning protocols.
Below is a quick reference pairing frequent issues with plain‑English controls.
Risk or constraint | Why it happens | Simple control |
|---|---|---|
Bend radius too small; cracking | Material yields and cannot stretch over a sharp radius | Target inside radius ≈ thickness (1t) as a starting point; validate on coupons (see principles in Xometry’s bending guide) |
Flange too short to form | Press brake tooling cannot grip or bottoms out | Keep flange ≥ 3t–4t; add bend reliefs near corners |
Holes too close to edge or bend | Material thins or distorts during forming | Keep holes ≥ 2t from edges/bends; add features after forming if needed |
Welding distortion | Heat input causes warping | Use fixtures, stitch/sequence welds, and flatness checks |
Finish incompatibility with cleaning | Chemical attack or residue traps | Specify passivation/electropolishing for stainless; validate cleanability on sample coupons |
Traceability gaps | Records not linked across stages | Define lot IDs, serialize as required, and retain FAI + routine inspection reports per QMS |
Design files: 3D model plus flat patterns and a 2D drawing with CTQs, bend directions, angle tolerances, and finish callouts.
Material and thickness: e.g., 304 or 316L stainless; specify thickness and target inside bend radius.
Finish and appearance: Passivation (ASTM A967) and whether electropolishing (ASTM B912) is needed; any cosmetic standards.
Assembly and joining: Welding vs. fasteners; accessibility for cleaning in medical contexts.
Volumes and timelines: Prototype quantity, pilot batch size, production forecast, and target lead times.
Quality and documentation: Whether you need a FAIR/PPAP‑like package; AQL levels for sampling; retention timelines for records.
For later scaling options, see Kaierwo’s Rapid Prototyping Service and a broader view of prototype‑to‑production paths in the Solutions overview.
1.What is the difference between sheet metal processing and sheet metal forming?
Forming covers deformation steps like bending and deep drawing. Sheet metal processing (fabrication) includes forming plus cutting, joining, and finishing to build the complete part or assembly.
2.When should I choose sheet metal instead of CNC machining or injection molding for an enclosure?
Choose sheet metal when the geometry is mainly flat panels and bends and you want scalable cost for medium‑to‑high volumes. CNC machining fits intricate 3D solids at lower volumes, while injection molding makes sense for high‑volume plastic parts.
3.How do shops handle springback in bending?
They often overbend slightly, use bottoming or coining, and select tooling that manages elastic recovery. The exact compensation depends on alloy, thickness, and radius.
4.Do all medical enclosures require cleanroom manufacturing?
Not necessarily. Teams choose cleanliness controls based on risk and device use. Many perform final cleaning and packaging under defined ISO 14644 classes and maintain traceability per their QMS and applicable regulations.
By understanding the building blocks of sheet metal processing, aligning early on DFM, and planning for cleanliness and traceability where needed, you can move from prototype to production with fewer surprises. Vet one‑stop partners for capabilities, documentation discipline, and communication—your enclosure (and schedule) will thank you.
