Vacuum Casting Mold Selection: A Practical, Data-Backed Guide

Choosing the right path for vacuum casting mold selection can make or break a short-run program. If you’re an R&D engineer, a manufacturing lead, or a procurement partner, the goal is the same: hit cosmetic targets, hold dimensions across tens of parts, and keep lead time and cost in check. This guide distills proven practices and conservative numbers to help you decide between silicone molds for urethane casting and aluminum tooling as volumes and tolerances tighten.

Key takeaways

• Silicone urethane casting molds are typically most economical for roughly 1–200 parts (geometry-dependent), with RTV mold lifespans around 15–25 casts; HTV silicone can extend to ~200–500 under ideal conditions.

• For surface detail replication and fast iteration in rapid prototyping, silicone molds excel; aluminum molds win when repeatability and tighter tolerances dominate.

• Plan for vacuum levels below ~5 mbar during degassing and casting; manage pot life and mold temperature to reduce bubbles and drift.

• Expect general tolerances around ±0.010 in (±0.25 mm) or ±0.003 in/in for urethane casting; shrinkage often centers near +0.15% but varies by resin and geometry.

• Transition to aluminum tooling when you approach a few hundred parts, tighter GD&T, or when amortized per-unit cost overtakes silicone remolding.

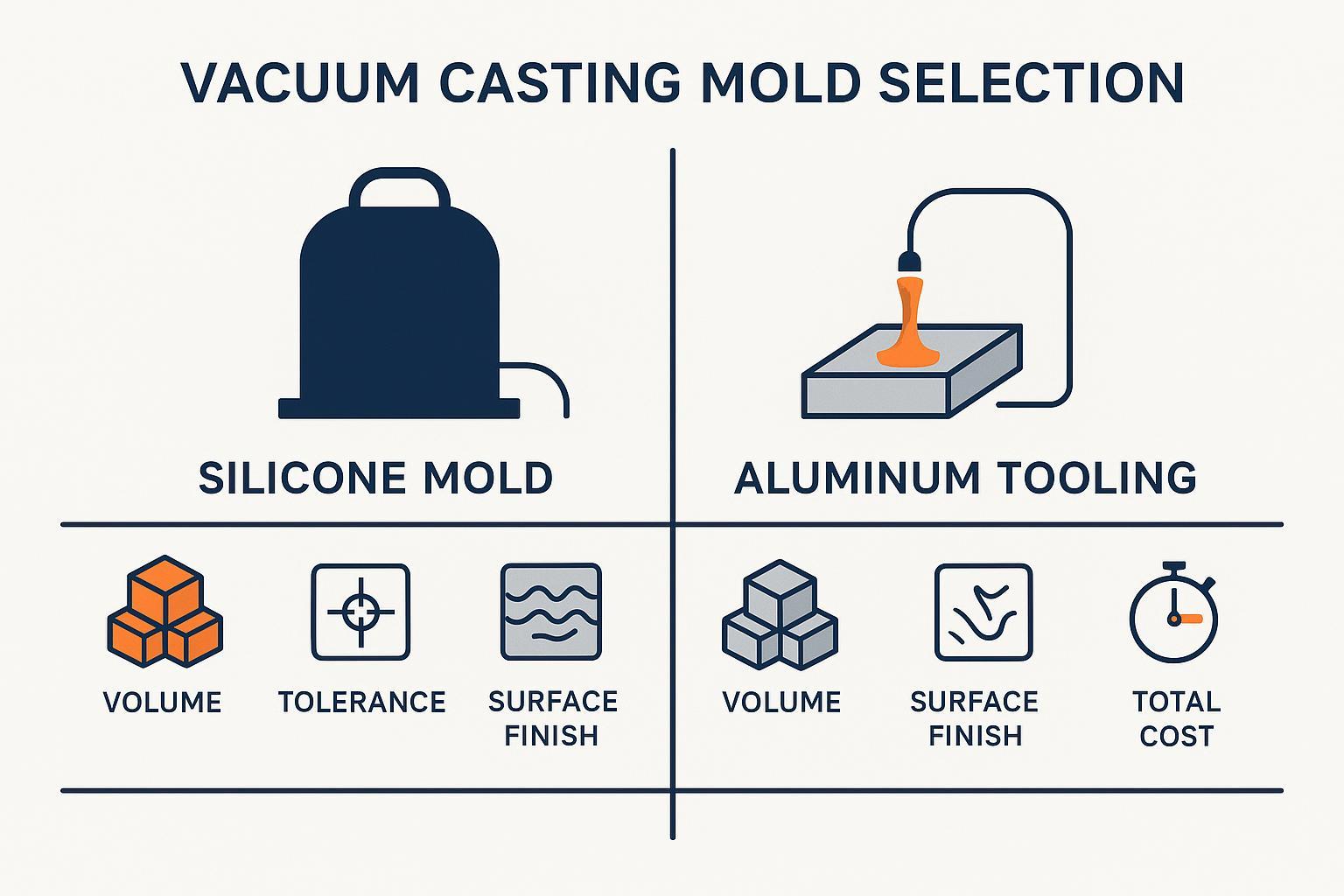

Silicone molds vs aluminum tooling — the fast decision matrix

When should you use silicone molds vs aluminum tooling? Think in terms of volume, tolerance, surface finish, lead time, and total cost. The table below summarizes conservative, widely cited ranges.

Mold types and what they’re best at

RTV platinum- and tin-cure silicone

Platinum-cure (addition-cure) RTV silicones generally offer lower shrinkage and better dimensional stability than tin-cure (condensation-cure) systems. Shore A hardness in the 40–50 range is common for balanced tear resistance and detail capture. With careful handling and moderate exotherm resins, you can expect about 15–25 casts per mold for standard urethane systems.

Pros

• Excellent replication of surface finish and fine features

• Low tool cost, fast iteration

• Flexible for undercuts with smart parting and cores

Watch-outs

• Limited mold life; dimensions can drift as molds age

• Exotherm and sharp features accelerate wear or tearing

• Sensitive to storage and temperature; release agents must be compatible

HTV silicone

High-temperature vulcanized (HTV) silicone—processed with heat and pressure—can deliver significantly longer life (≈200–500 cycles under ideal conditions), higher tear strength, and better temperature resistance than RTV. It’s not always necessary for early prototypes, but when cosmetic detail and mid-volume counts coincide, HTV can bridge the gap before aluminum tooling.

Urethane casting molds and inserts

In complex programs, teams sometimes make “rigid urethane” or composite molds/inserts to support specific features, jigs, or temporary cores. These are niche yet useful when the silicone’s flexibility needs local reinforcement or when you need to integrate metallic inserts for stability. Treat them as adjuncts, not primary production tooling.

Aluminum tooling (rapid tooling context)

Aluminum molds for injection molding sit on the other side of the decision line. They require higher upfront cost and longer lead time, but they yield superior repeatability and throughput once the design stabilizes.

Matching resins to function in urethane casting

Choosing the casting resin should track the part’s functional needs—rigidity, clarity, elasticity, or heat resistance—and the target surface finish.

Common families

• ABS-like rigid urethanes: balanced strength and machinability; good for housings and brackets.

• PC-like urethanes: higher impact and heat deflection; useful for clips and enclosures.

• PMMA-like clear urethanes: optical models, light pipes, clear covers.

• Elastomeric urethanes (Shore A20–90): seals, gaskets, grips; three-component systems offer wide hardness ranges.

Datasheet examples:

• ARRK Hei-Cast 8150 (ABS-like): post-cure around 60°C for ~1 h; HDT around 100°C at 1.8 MPa

• ARRK Hei-Cast 8400 (elastomeric; A20–90): pot life ~5–6 min (100 g, 25°C), cure ~60°C for 1–2 h, post-cure 2–3 h

Dimensional expectations

• General tolerances of ±0.010 in (±0.25 mm) or ±0.003 in/in are realistic for many geometries; several supplier guides align to ISO 2768-C for cast urethane parts.

• Shrinkage often centers near +0.15% (varies with resin, section thickness, and process).

Process parameters that protect quality and yiel

Master pattern prep checklist

• Choose a high-fidelity master: CNC machining or high-resolution SLA for crisp edges and a smooth base finish.

• Finish the master to the target surface finish: sand progressively to fine grit; polish or prime as needed.

• Design for casting: 1–2° draft  where possible, consistent walls (≈1–4 mm), generous radii, deliberate gates and vents.

Critical parameters

• Vacuum levels: Degas A/B components and the mix; aim for chamber pressures below ~5 mbar absolute during degassing and casting to minimize trapped air.

• Temperature control: Preheat resins to ~30–40°C for better flow; stabilize mold temperature ~60–80°C when recommended by the TDS. Follow product-specific schedules (e.g., Hei-Cast 8150/8400 above).

• Pot life and mixing: Respect pot life; mix thoroughly while minimizing air entrapment. Plan pour sequences to complete within the resin’s workable window.

• Post-cure: Follow TDS for time/temperature to reach full properties and stabilize dimensions.

Surface finish: from master to mold to part

Here’s the deal: your parts can only look as good as your master. Silicone transfers texture with striking fidelity, so spend the time on the master’s finish. If you need a gloss, prepare a gloss master and protect it with compatible release agents. For matte or textured parts, build that texture into the master or use controlled blasting on master surfaces.

Post-processing

• Flash trimming and light edge sanding are standard.

• For Class A cosmetics, wet-sand through fine grits, apply primer, and topcoat as required.

• Clear parts may need additional steps to achieve optical clarity (progressive sanding and polishing).

Troubleshooting common defects (and fixes)

Cost and crossover: when to move from silicone to aluminum

A simple way to think about cost is to separate tooling from per-part cost. Silicone molds cost less up front but wear out; aluminum tooling costs more up front but spreads that cost over hundreds or thousands of parts and runs much faster.

Illustrative assumptions (not universal, but grounded):

• Silicone mold: $500 per mold; 20 usable casts; $12 variable cost per part (resin, labor, finishing). Effective per-part cost at 100 units requires ~5 molds → tooling amortization ≈ $25/part + $12 variable ≈ $37/part.

• Aluminum tool: $6,000; $2 variable cost per injection shot. At 100 units → $60 tooling amortization + $2 variable ≈ $62/part (silicone cheaper). At 500 units → $12 + $2 ≈ $14/part (aluminum cheaper).

Your crossover depends on geometry, mold longevity, and labor rates, but the pattern holds: as you approach a few hundred units, aluminum’s per-part cost and repeatability start to win.

Practical workflow example (with disclosure)

Disclosure: Kaierwo is our product.

Consider a handheld enclosure that needs 50–150 parts for pilot testing with a fine-textured surface and snap features. A practical supplier workflow would be:

1. Master pattern: Machine the master via CNC for clean geometry and a crisp surface. For reference on master capabilities, suppliers like Kaierwo list CNC machining for master patterns.

2. Silicone mold: Build a two-part platinum-cure silicone mold at Shore A ~45. Degas the silicone, pour around the master, cure, then cut the parting line and add vents.

3. Casting: Select an ABS-like urethane (per part specs) and cast under vacuum at <~5 mbar with the mold warmed to ~60–70°C. Respect pot life; plan batch pours.

4. Post-cure and finishing: Post-cure per the resin TDS; trim flash and apply light texture-matched finishing.

A provider such as Kaierwo vacuum casting can support this short-run path and, when pilot demand increases toward a few hundred parts with tighter tolerances, quote rapid aluminum tooling and injection molding to control cost per unit and dimensional repeatability.

How to vet a vacuum casting supplier

• Capabilities and materials: Look for a full portfolio of urethane resins (ABS-like, PC-like, clear, elastomeric) and in-house silicone mold making.

• Quality systems and inspection: ISO 9001 is foundational; for medical or regulated parts, ISO 13485 and documented traceability are important.

• Lead time and communication: Clear first-article timing (often 3–15 days) and policies on mold replacement as cycles accumulate.

• Transition readiness: DFM support and guidance on when to move to aluminum tooling/injection molding as volumes increase.

FAQ

Q:How long do silicone molds last in urethane vacuum casting?

A:RTV molds often yield ~15–25 casts depending on resin exotherm, geometry, and care. HTV silicone can last far longer—on the order of ~200–500 cycles under ideal processing and maintenance.

Q:What vacuum level is needed for urethane casting molds?

A:Aim for chamber pressure below ~5 mbar during degassing and casting to purge bubbles. Lower pressures improve results; consult resin TDS and equipment limits.

Q:What tolerances can I expect from urethane casting?

A:A common rule is ±0.010 in (±0.25 mm) or ±0.003 in per inch, whichever is greater, with variations for larger parts and complex geometries.

Q:Silicone molds vs aluminum molds: which gives better surface finish?

A:Silicone molds generally replicate the master’s texture more faithfully because they copy the master surface directly; aluminum molds can achieve excellent finishes after polishing but involve machining marks that must be managed.

Q:How does shrinkage affect vacuum casting mold selection?

A:Typical urethane shrinkage centers near +0.15%, but factors like wall thickness and mold stiffness influence outcomes. Account for this in master dimensions and validate with first articles.

Q:Is vacuum casting good for rapid prototyping?

A:Yes—silicone molds are quick to produce and ideal for short-run validation with high-fidelity surfaces. As design stabilizes and volumes grow, aluminum/injection takes over.

Q:Can I cast clear parts with urethane?

A:Yes. Clear, PMMA-like urethanes produce optical models and light pipes. Achieving optical clarity requires meticulous master finishing and post-processing.

Q:When should I transition to aluminum tooling?

A:When you approach a few hundred units, need tighter GD&T, or when per-unit cost modeling shows silicone remolding is overtaken by aluminum amortization.

Q:What affects mold life the most?

A:Resin exotherm and chemistry, part geometry (sharp ribs/undercuts), mold hardness, and handling/storage all impact cycles. Monitoring and planned replacement maintain consistency.

Q:Are there special considerations for regulated industries like medical devices?

A:Yes. Additional quality controls, material certifications, and process validation are often required; consult ISO 13485-qualified suppliers and obtain SME review.
