Transparent Anodized Aluminum

Transparent anodized aluminum—often called clear anodized aluminum—refers to a non‑dyed Type II sulfuric acid anodic coating that remains substantially colorless while preserving the metallic look of the base aluminum. Engineers choose it when they need corrosion protection and wear resistance without obscuring light or the metal’s appearance. This guide focuses on how to specify and control transparency and haze from prototype through small‑batch production.

Key takeaways

• “Transparent” is primarily an optical outcome of thin, uniform Type II coatings on smooth substrates. The key knobs are alloy, pretreatment/polish, base roughness, film thickness, and sealing.

• For optical applications, practical film thickness bands are about 5–15 µm. Thicker films tend to raise haze and can introduce interference color.

• Keep clear‑anodize baths cool, well‑agitated, and clean. Favor sulfuric 12–18 wt% at roughly 15–20 °C with controlled current density and a gentle voltage ramp.

• Measure what matters. Map thickness using ASTM B244 eddy‑current and quantify haze and luminous transmittance with ASTM D1003. Validate seals, because uneven sealing can increase haze.

• Start with alloys that finish well in clear, like 1xxx, 5xxx, and 6xxx, and avoid 2xxx and 7xxx when visual clarity is critical.

If you are evaluating finishing choices more broadly, see our overview of anodizing and surface finishing.

What transparent anodized aluminum means in practice

In standards language, clear anodize corresponds to Type II sulfuric acid anodic coatings specified as Class 1 non‑dyed. Military and aerospace guidance lays out requirements for coating integrity and sealing.

For engineers, the takeaway is simple: transparent anodized aluminum is a non‑dyed sulfuric anodic film that can transmit light when the coating is thin and the substrate is smooth. It is distinct from dyed Type II, which adds color for aesthetics, and from Type III hard anodize, which is thicker and optimized for wear rather than optical clarity.

How the film creates clarity and haze

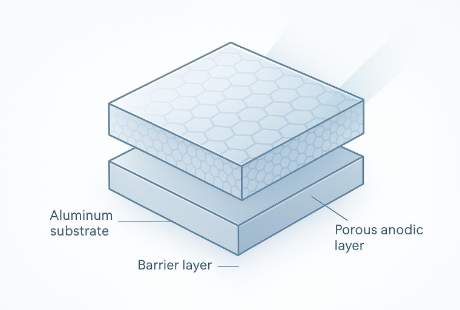

Anodic aluminum oxide has two layers: a dense barrier layer at the metal interface and a porous layer above it. The porous region forms hexagonally packed “cells” with a central pore. A useful rule of thumb from academic literature is that the pore spacing and diameter scale with formation voltage on the order of about one nanometer per volt in steady regimes; finer pores and tighter order correlate with better clarity.

Optically, three things primarily reduce transparency:

• Scattering at pore walls when pores are large or non‑uniform

• Scattering from base metal micro‑roughness and machining marks that telegraph through the film

• Thin‑film interference color when film thickness varies or remains unsealed

Sealing modifies the film’s refractive index and microtopography by hydrating or partially filling pores. Done well, it stabilizes appearance; done poorly, it can add localized haze.

Design decisions that control transparency

Alloy choices for optical clarity

Start with alloys known to produce uniform clear films. High‑purity 1xxx and many 5xxx and 6xxx alloys are reliable choices. 6061 and 6063 are commonly used for consumer‑visible components because they balance machinability with clear finishing behavior. By contrast, 2xxx and 7xxx families often contain intermetallics and copper‑rich phases that drive micro‑galvanic effects during anodizing, leading to tinting, mottling, or higher haze. Trade and association guidance echoes these trends; see the Aluminum Anodizers Council’s reference material and architectural finishing notes from Linetec for alloy suitability.

If your part is being machined from billet or plate, align the machining strategy with finishing goals. A stable upstream process helps the downstream finish. For background on prep and tolerances, see our primer on CNC aluminum machining.

Pretreatment and base finish

Pretreatment sets the optical floor. Thorough degreasing and a controlled, minimal etch preserve smoothness. Where high clarity is needed, a bright dip or fine mechanical polish is preferred to heavy alkaline etching, which raises micro‑roughness and diffusion. Directional sanding or brushing can be used intentionally for a satin look, but remember that those textures will remain visible through the clear film.

Surface roughness targets and measurement

For illuminated trims and viewing windows, keep pre‑anodize roughness low. As a starting point, target Ra ≤ 0.2–0.4 µm for general translucent effects, and lower if true viewing clarity is required. Verify with stylus or optical profilometry and include roughness limits in your supplier notes. Think of roughness like the difference between ground glass and polished glass—the smoother the base, the clearer the view.

Film thickness bands and trade‑offs

Thickness is the most powerful lever you can specify:

• About 5–8 µm: highest transmittance and lowest interference risk, but the least wear margin

• About 8–12 µm: balanced optics and durability; a common target for consumer‑visible parts

• About 12–15 µm: robust handling and corrosion resistance with a modest haze increase risk

Beyond roughly 20–25 µm, the porous layer becomes sufficiently thick that diffuse scatter increases and interference hues may appear. That’s fine for architectural durability but not ideal for optical clarity.

Process windows engineers can specify

Transparent anodized aluminum benefits from well‑controlled Type II conditions designed to favor fine pore structures and uniform growth. The following ranges are widely used in industry and trade practice; always tune to your alloy, part geometry, and equipment.

• Electrolyte chemistry: Sulfuric acid about 12–18 wt% for clear Type II films. Lower concentrations can support finer pores and clarity at a given temperature.

• Bath temperature: Approximately 15–20 °C to limit dissolution and prevent pore enlargement. Temperature creep above the low‑20s increases haze risk.

• Current density and voltage strategy: Maintain moderate current density and ramp voltage gently into the mid‑teens to around 18–22 V depending on load. Avoid spikes that cause pitting or “burning.”

• Time to thickness: Use the shop‑proven 720 Rule to estimate growth. As a planning aid, at typical Type II current densities you may see on the order of 0.4–0.6 µm per minute, which places 8–12 µm within roughly 15–25 minutes under steady control.

Sealing methods and their optical impact

Sealing stabilizes color and boosts corrosion resistance, but it also changes how light moves through the film.

• Hydrothermal sealing in hot deionized water converts the oxide to boehmite without adding foreign ions. It’s often preferred where optical neutrality or nickel avoidance is specified in aerospace and critical hardware.

• Nickel acetate sealing is widely used in decorative and architectural work. It can be efficient and robust, but nickel incorporation near pore mouths may raise diffuse scattering in some cases if conditions are not optimized. Technical finishing literature outlines how sealing parameters influence appearance.

In either case, uniform rinsing and temperature control matter. Non‑uniform seals are a common root cause of localized haze and iridescence.

Measuring thickness, transmittance, and haze

If transparency is a requirement, measure it. Don’t rely on eyeballs alone.

• Coating thickness: Use ASTM B244 eddy‑current measurement with calibration standards that match your alloy. Map multiple points to capture geometry effects and racking shadowing.

• Haze and luminous transmittance: Use ASTM D1003 with an integrating sphere hazemeter across the visible band. Record both total transmittance and haze to quantify diffusion.

• Optional spectral data: Where color or IR performance matters, capture spectral transmittance with suitable methods and document acceptance bands.

• Sealing adequacy: Validate with your specification’s seal tests or corrosion benchmarks. Architectural practice such as AAMA 611 uses thickness classes with performance testing.

Example acceptance bands for prototyping, to be validated on your hardware: for illuminated trims that need smooth glow without hot spots, consider total luminous transmittance high and haze in the 5–15 percent range at roughly 8–12 µm film thickness. For viewing windows, keep haze as low as practical and favor thinner films and mirror‑polished bases.

Application guidance for common scenarios

• Consumer electronics illuminated trims: 6061 or 6063 with fine polish or controlled satin. Aim for about 8–12 µm film and a hydrothermal seal when neutral clarity is the goal. Characterize haze and transmittance across three to five locations.

• Lighting diffusers and viewing windows: High‑purity or 5xxx/6xxx substrates, mirror polish, and thin films around 5–10 µm. Seal carefully to avoid added scatter. Where needed, add spectral measurements to your D1003 haze and transmittance checks.

• Medical and lab viewing ports: Prioritize cleanability and corrosion. Around 10–12 µm with robust hydrothermal sealing is common. Validate haze drift after repeated disinfectant exposure.

• Automotive interior light guides and illuminated panels: Focus on uniformity. Apply statistical process control to bath temperature and current ramps, and track color shift and haze per batch. Keep film thickness in the balanced 8–12 µm zone unless a design calls for stronger diffusion.

Troubleshooting defects that reduce transparency

Practical workflow example from a prototyping line

Here is how a prototyping line might run a clear optical finish on 6061 for an illuminated trim: machine and deburr the part, then fine‑polish to a low Ra. After thorough degreasing and a minimal, controlled etch, anodize in sulfuric acid around 15–20 °C with a gentle voltage ramp and moderate current density, targeting about 8–10 µm in the tank. Seal hydrothermally in hot deionized water with well‑controlled time and temperature, then map thickness and measure haze and transmittance at multiple points. This mirrors the day‑to‑day flow we support in our projects, where upstream machining and fixturing are planned in tandem with finishing.

If you are mapping your own handoff from machining to finishing, our short overview of the rapid prototyping workflow explains where to incorporate finish requirements and metrology checkpoints.

Transparent anodized aluminum gives you a tunable balance of durability and optical performance—as long as you control alloy, surface, thickness, and sealing, and measure the results. If you are exploring upstream preparation before finishing, our CNC machining services can support prototypes designed for clear anodize with the right surface readiness and tolerances.
