Rapid Prototyping:Structural Verification from Appearance to Functionality(Functional Prototype)

In rapid prototyping systems, the Functional Prototype is a crucial stage bridging the visual prototype and Engineering Verification Test (EVT). It addresses not just whether the product can be demonstrated or mass-produced, but the core engineering question: can it truly function?

The Functional Prototype needs to validate structural strength, motion coordination, machining accuracy, material behavior, thermal management, and durability in real-world operating scenarios. It represents the true dividing line between conceptual models and engineering design. In CNC rapid prototyping, the quality of the Functional Prototype often determines whether the product can successfully enter EVT and mass production engineering.

This article will systematically introduce the Functional Prototype's position within the CNC machining system, key design principles, validation methods, material selection, structural strategies, and common industry pitfalls, creating a professional reference document that can serve as an internal standard for enterprises.

The Role of Functional Prototype in Product Development

A functional prototype is the "engineering starting point" of product development, with the following objectives:

1. Verifying Core Functional Logic

Executing key actions or achieving key performance characteristics of the product, for example:

Whether the transmission system can move stably

Whether the hinge structure meets fatigue life requirements

Whether machined parts and plastic parts can fit stably

Whether the heat source operates within a safe temperature range

Whether load-bearing components meet design strength requirements

2. Verifying Material and Structural Compatibility

Ensuring that the selected materials and structures can function normally in the expected environment, for example:

Deformation of aluminum alloy frames

Coefficient of friction of engineering plastics such as PA and POM

Vibration behavior of stainless steel long shafts

Stability of structural glue spots, threaded holes, and assembly clearances

3. Verifying the Feasibility of Machining Processes

CNC machining plays a key role in the functional prototype stage:

Dimensional accuracy verification

Tolerance system verification

Assembly interference check

Feasibility verification of deep cavity machining

Machinability verification of boundary features (chamfers, R-angles, acute angles)

4. For EVT Establishing an Engineering Baseline:

Only after functional verification can a product qualify for Engineering Validation (EVT).

Functional prototypes must operate stably, but mass production cost control is not required.

Therefore, functional prototypes are typically the type of prototype with the highest manufacturing requirements and the greatest data value throughout the entire development cycle.

The Difference Between Functional Prototypes and Visual Prototypes

From "Looks Like" to "Works Really"

Visual Prototype addresses:

Product shape

Color and texture

CMF (Color, Material, Finish) presentation

Perceptual experience ("look & feel")

Typically, it can be achieved through a combination of CNC machining, 3D printing, painting, electroplating, and polishing.

Functional Prototype addresses:

Engineering structure

Functional operation

Performance under real-world loads

Material behavior

Dimensional tolerances and assembly stability

Kinematic friction, thermal management, vibration, etc.

It requires:

High-precision CNC machining (±0.01–0.05 mm)

Engineering-grade materials

Capable of withstanding real-world operating loads

Matching parts and assemblies consistent with mass-produced parts

In other words: Visual prototypes showcase "visual appeal," while functional prototypes showcase "engineering capabilities."

Structural design principles of functional prototypes

1. Prioritize the use of materials that can be machined with high precision.

Commonly used materials and their properties:

Principle: While alternative materials can be used for Proof-of-Concept (PoC), functional prototypes must use engineering-grade materials.

2. Adopt a tolerance system close to mass production.

Critical dimensions of the functional prototype must meet the following requirements:

Shaft tolerances: ±0.01 mm

Matching hole tolerances: H7 / h6

Assembly surface flatness: 0.05–0.1 mm / 100 mm

Sliding fit clearance: 0.02–0.10 mm

This is the advantage of CNC machining and the basis for functional verification.

3. Structural design must consider CNC machinability.

Avoid the following structures that would lead to machining difficulties or excessive costs:

Deep cavities without chamfers

Sharp right angles without radius (R)

Asymmetric thin walls

Large-area thin sheets

Narrow structures inaccessible to the tool

Collaborate with the machining facility for "DFM optimization" when necessary.

4. Maintainability and Iterability

Functional prototypes often require multiple rounds of testing. The following should be ensured:

Screws are removable.

Some components are replaceable.

The transmission structure is adjustable.

Data acquisition space is reserved at critical locations.

Functional Testing Strategy: From Static to Dynamic Engineering Verification

Functional prototypes must be able to operate and withstand real-world usage scenarios. Common tests include:

1. Static Testing

Dimensional Inspection (calipers, coordinate measuring machines)

Assembly Clearance Inspection

Tolerance Stacking Analysis

Torque Testing

Strength and Bending Testing

2. Dynamic Testing

Smoothness of Movement

Vibration and Noise

Long-Term Operational Stability

Deformation Under Load

Friction and Wear

Thermal Management Performance

3. Scenario Simulation or Extreme Testing

High/Low Temperature Operation

High Load Operation

Shock Testing

Environmental Testing (Moisture, Dust, etc.)

The core value of functional prototypes lies in exposing problems rather than pursuing "perfect performance."

CNC Machining Strategy for Functional Prototypes

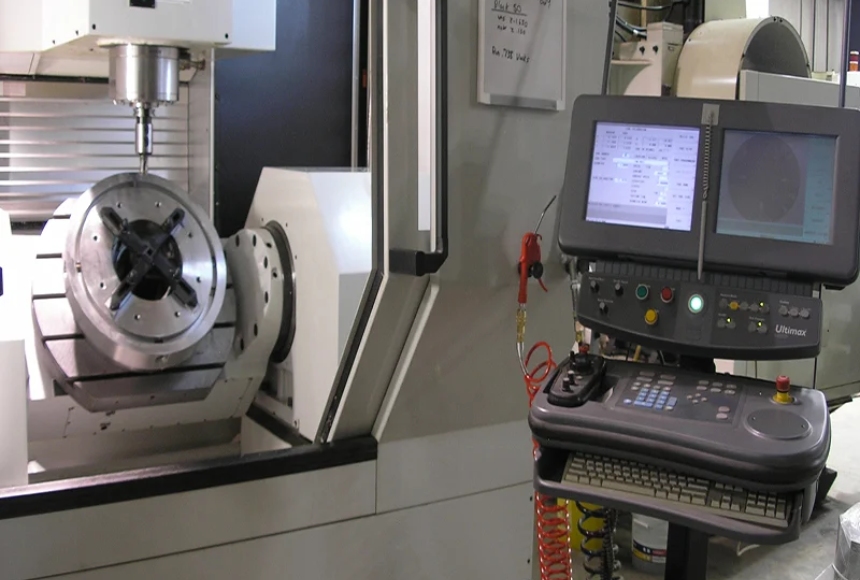

1. High-Precision Five-Axis Machining for Critical Components

Examples:

Long Axles

Complex Curved Surfaces

Integrated Frames

Multi-Face Fixture Machining Parts

Five-axis CNC ensures:

Lower clamping errors

Higher surface quality

More precise geometric relationships

2. Inspection-Based Machining Process

Unlike appearance parts, functional prototypes require dimensional checks after each critical machining step, including:

Checking shaft diameter after precision turning

Checking flatness after precision milling

Checking positional accuracy after T-slot machining

Checking coaxiality after hole machining

3. Tolerance Concentration Strategy

The tolerance design for functional prototypes must follow:

Concentrate transition tolerances on critical components

Relax tolerances in non-critical areas

Reduce machining costs and improve assembly accuracy.

4. Surface treatments are for performance, not aesthetics.

Common treatments used for functional prototypes include:

Anodizing (improves wear resistance and corrosion resistance)

Sandblasting (improves friction performance)

Heat treatment (improves strength)

Electrophoresis or phosphating (rust prevention)

This is completely different from the focus of painting and electroplating for exterior prototypes.

Assembly Strategy: From Individual Component Precision to System Precision

One of the most critical considerations for functional prototyping is the assembly strategy.

1. Pre-assembly Inspection

Perform the following checks on all CNC-machined parts:

Chamfer check

Hole alignment check

Flatness check

Ensure no jamming or interference during actual assembly.

2. Actual Assembly

Use production screws

Use standard bearings

Use actual lubricants

Use engineering adhesives

Adopt engineered torque standards

3. Post-Assembly Verification

Smoothness of movement

Noise

Heat generation

Vibration

Load capacity

The assembly results of the functional prototype are a key input for the EVT (Engineering, Propulsion, and Testing) phase.

Common Industry Misconceptions and Avoidance Strategies

Misconception 1: Treating Functional Prototypes as Mass Production Parts

Functional prototypes do not need to consider cost optimization, but must meet performance requirements.

Misconception 2: Over-reliance on 3D Printing

3D printing is suitable for appearance and PoC, but in the functional prototype stage:

Insufficient dimensional accuracy

Insufficient material stability

Poor dynamic load performance

CNC machining is the primary process for functional prototypes.

Misconception 3: Insufficient Spare Parts

Functional prototype testing often results in:

Friction and wear

Structural fatigue

Assembly damage

Spare parts must be prepared to support continuous testing.

Conclusion: Functional Prototypes are a Turning Point for Engineering Success

A functional prototype is a crucial leap from vision to engineering, a core hurdle for a product to enter Engineering Validation (EVT) and achieve mass production.

It answers the question not "Can it be demonstrated?", but "Can it actually work?"

It requires high-precision CNC machining, high-grade materials, system testing, and engineered assembly.

For companies pursuing rapid iteration, high-quality R&D, and low trial-and-error costs, establishing a standardized functional prototyping process is a vital foundation for building product competitiveness.
