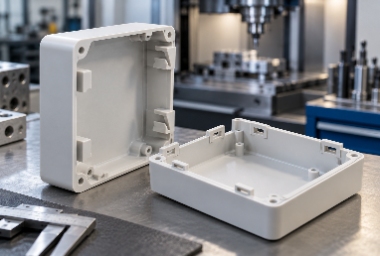

Snap-Fit Design for CNC Machined Plastic Prototypes: What Should You Consider?

Can you CNC machine a plastic snap-fit without breaking the flexible clips or compromising the assembly?

Yes, but a snap-fit that works in CAD is not necessarily easy to machine or assemble. Thin snap arms, inaccessible undercuts, incorrect clearances, and unsuitable materials can lead to broken clips, excessive insertion force, or loose connections.

For product designers developing plastic enclosures, covers, and functional prototypes, successful snap-fit design for CNC requires balancing flexibility, retention strength, and manufacturability.

This guide answers the most common questions about CNC-machined snap-fits and explains how to avoid design problems before ordering prototypes.

Can Snap-Fit Features Be CNC Machined?

Yes. CNC machining can produce functional snap-fit features in engineering plastics such as POM, nylon, ABS, and polycarbonate.

It is particularly useful when you need to:

• Test how two plastic components fit together.

• Evaluate snap engagement and assembly force.

• Check material flexibility before production.

• Produce functional prototypes without investing in injection molding tooling.

• Make design revisions during product development.

However, not every snap-fit geometry is suitable for CNC machining.

For example, a deep internal hook may be straightforward to design in CAD but difficult for a milling cutter to reach. Very thin cantilever arms can also deform during machining.

Practical recommendation: Before manufacturing, check whether the snap hook, slot, and mating surfaces are accessible to cutting tools.

For complex plastic parts, a review of the design through a plastic CNC machining service can help identify machining constraints before production begins.

How Do You Design a Snap-Fit That Won't Break?

One of the most common problems with plastic snap-fits is cracking during assembly.

A snap arm must flex enough to pass over its mating feature and then recover without permanent deformation. If the arm is too stiff or the required deflection is excessive, stress may concentrate at its base.

1. Avoid short, thick snap arms

Short, thick beams generally require more force to deflect than longer, thinner ones.

Where the product dimensions allow, increasing the effective beam length can reduce bending strain for a given deflection. However, excessively thin beams may create machining or durability problems.

2. Add a radius at the snap-arm base

Sharp corners at the root of a cantilever snap can create stress concentrations.

A suitable fillet helps distribute stress more smoothly, reducing the risk of cracking during assembly.

3. Control the engagement depth

A deeper hook does not always mean a better connection.

Excessive engagement may require the snap arm to bend too far during installation. The goal is to provide enough retention without creating unnecessary deformation.

4. Consider how the part will be removed

If the enclosure requires regular maintenance, the snap-fit must support repeated opening and closing.

Provide a release tab or tool-access feature where appropriate, and evaluate the expected assembly cycles.

Design tip: If a prototype shows whitening near the snap-arm root after assembly, investigate excessive strain, sharp corners, and material suitability before increasing the beam thickness.

Which Plastic Material Is Best for CNC Snap-Fit Parts?

The best material depends on how often the snap-fit will be used, how much it needs to flex, and the conditions in which the product operates.

POM is often worth considering for precision components, while nylon may be useful when toughness is important. Polycarbonate can be suitable for impact-resistant enclosures, and ABS is commonly used for functional product prototypes.

However, there is no single best material for every snap-fit design.

Material grade, beam geometry, temperature, humidity, and repeated loading all influence performance. For example, nylon's moisture absorption can change its dimensions and mechanical properties.

If you are unsure which material to use, compare candidate grades based on the application's deflection and retention requirements before ordering a complete prototype batch.

What CNC Machining Limitations Should You Consider?

A snap-fit may be mechanically sound but difficult or expensive to machine.

The following issues should be reviewed before finalizing the design.

Undercuts and tool access

CNC cutters need a practical path to reach the required surfaces.

Deep hooks, narrow internal slots, and hidden retaining features can require special tools, additional setups, or design modifications.

Where possible, position snap-fit features so their critical surfaces can be machined with accessible toolpaths.

Thin walls and flexible features

Thin snap arms may vibrate or deflect under cutting forces. This can affect dimensional accuracy and surface quality.

Avoid assuming that every thin feature shown in a CAD model can be machined reliably.

Internal corner radii

CNC milling tools leave radii at internal corners. A perfectly sharp internal corner is generally not achievable using conventional end milling.

Allow appropriate corner radii and verify that they will not interfere with the snap hook.

Surface finish

Rough machining marks or burrs can increase friction during assembly and cause inconsistent engagement.

Inspect contact surfaces and remove burrs where necessary.

For parts with complex slots, hooks, or thin sections, reviewing the design for CNC milling feasibility can reduce unnecessary machining operations and revisions.

How Much Clearance Should a CNC Snap-Fit Have?

There is no universal clearance that works for every CNC-machined snap-fit.

The required fit depends on the material, part dimensions, engagement depth, machining tolerances, and intended assembly force.

Too little clearance can cause excessive friction, difficult assembly, and snap-arm overstressing.

Too much clearance can result in loose connections, rattling, or insufficient retention.

When defining dimensions, pay particular attention to:

• Clearance between the hook and mating wall.

• Engagement depth of the retaining feature.

• Position and alignment of the two components.

• Dimensional variation across both mating parts.

Rather than applying an unnecessarily tight tolerance to the entire component, identify the dimensions that directly affect assembly and retention.

For example, a precision requirement may be necessary at the snap interface while general enclosure surfaces can use less restrictive tolerances.

The final clearance should be confirmed through physical prototype testing rather than relying only on nominal CAD dimensions.

Why Does a Snap-Fit Work in CAD but Fail During Assembly?

CAD software can verify that components fit geometrically, but it does not automatically establish how the plastic will behave during assembly.

Common problems include:

These problems demonstrate why a successful snap-fit design needs physical validation.

A small design change, such as adjusting the lead-in angle or increasing the root radius, may improve assembly performance without redesigning the entire enclosure.

Should You Use CNC Machining or 3D Printing for Snap-Fit Prototypes?

Both methods are useful, but they answer different development questions.

Choose 3D printing when the primary goal is to check enclosure dimensions, snap locations, or assembly concepts.

Choose CNC machining when you need to examine how a particular engineering plastic behaves during assembly or evaluate functional fit with machined surfaces.

For a product moving toward injection molding, a rapid prototyping process can help identify design weaknesses before production tooling is developed.

Remember that machined and molded plastic parts may still behave differently because of material processing history, shrinkage, and other manufacturing factors.

What Should You Prepare Before Ordering CNC Snap-Fit Prototypes?

You do not need to finalize every snap-fit dimension before discussing your project with a manufacturing supplier.

However, providing the right information makes it easier to evaluate feasibility and avoid unnecessary design revisions.

Before requesting a quote, prepare:

1. 3D CAD model: Include the snap hooks, slots, mating features, and overall enclosure geometry.

2. Material requirements: Specify the preferred plastic grade or operating conditions if the material has not been selected.

3. Prototype quantity: Indicate whether you need a single prototype, several design variants, or a small production batch.

4. Functional requirements: Explain whether the snap-fit is permanent or removable and how frequently it will be opened.

5. Critical dimensions: Identify clearances, engagement surfaces, and dimensions that affect assembly.

6. Testing expectations: State any required insertion force, retention checks, or repeated assembly testing.

A manufacturing review should help determine whether the geometry can be machined directly, whether special tool access is required, and which dimensions need closer inspection.

For more complex designs, consider producing a limited number of samples before ordering a larger batch.

Frequently Asked Questions About CNC Snap-Fit Design

Can CNC machining produce flexible plastic clips?

Yes. CNC machining can produce flexible clips from suitable engineering plastics. Their performance depends on the material grade, clip geometry, machining quality, and operating conditions.

Can snap-fits be used for repeated assembly?

Yes, provided the geometry and material are designed for repeated deflection. Reusable snap-fits should be tested for fatigue, wear, and retention after the expected number of assembly cycles.

Is CNC machining suitable for low-volume snap-fit production?

Yes, particularly for parts that do not justify dedicated tooling. However, machining time, geometry complexity, material cost, and required quantity should be evaluated before selecting the process.

If a design has passed prototype testing and requires additional production quantities, low-volume manufacturing may be a practical next step.

Can a CNC-machined snap-fit prototype be used for injection molding later?

It can help validate the functional concept, but the design may require changes before molding. Draft angles, wall thickness, material behavior, and mold-related constraints must be considered separately.
