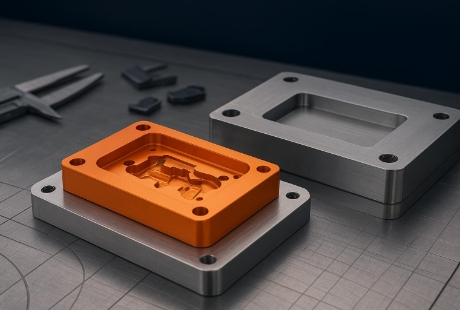

Rapid tooling applications: where it fits between prototype and production

Rapid tooling is one of those manufacturing “shortcuts” that’s only a shortcut if you use it for the right job.

Used well, it helps engineering teams ship production-representative parts fast—without committing early to hardened, expensive production tooling. Used poorly, it turns into a loop of tool changes, dimensional drift on critical features, and schedule slip right when you’re trying to hit EVT/DVT/PVT milestones.

This guide breaks down the most common rapid tooling applications, especially for injection molding, plus a practical framework for deciding when it’s the right move.

Key takeaways

• Rapid tooling is a speed-and-learning tool: validate manufacturability and de-risk CTQ before you commit to full production tooling.

• The best applications are functional prototypes, DFM validation, bridge production, market testing, and controlled low-volume replenishment.

• Aluminum rapid tooling often hits the sweet spot for short runs—fast to machine, good thermal performance—but tool life depends heavily on resin and geometry.

• Your success hinges on early DFM, venting/gating/ejection decisions, and a plan for inspection (FAI + CTQ checkpoints).







What rapid tooling means

Rapid tooling is any approach that shortens the time and cost to create a tool (or tool insert) so you can make a limited run of parts quickly—often to validate design, material choice, and manufacturability before scaling.

If you’re debating prototype vs production tooling, rapid tooling is usually the middle ground: fast enough to iterate, but capable of producing parts that behave like real molded production parts.

You’ll often hear rapid tooling used interchangeably with a few related terms:

• Prototype tooling: typically the earliest-stage tool used to validate geometry and basic function. The design is still moving.

• Soft tooling: a broad bucket for tooling made from materials that wear faster than hardened steel (for example aluminum or soft steels). “Soft” doesn’t mean low precision; it means shorter tool life.

• Bridge tooling: tooling meant to “bridge” the gap—supporting pilot runs or initial sales while production tooling is still being built, or while demand is being proven.

• Production tooling: hardened tooling built for longevity, repeatability, and high-volume throughput.

The main rapid tooling applications

Most rapid tooling projects fall into a few repeatable application buckets:

1) Functional prototypes in production-intent materials

3D prints are great for form and quick fit checks—but many failures only show up when parts are molded:

• shrink and warpage behavior

• snap fits and living hinges

• surface finish on cosmetic faces

• seal performance and assembly stack-up

Application fit: you need parts that behave like real molded parts (not “print-like” parts) to validate the design.

2) DFM validation before committing to hardened steel

If you have any critical-to-quality (CTQ) features—sealing surfaces, press fits, optical features, critical hole locations—rapid tooling helps you validate:

• gate location effects (flow lines, weld lines)

• venting sufficiency (burns, shorts)

• ejection strategy (pin witness marks, distortion)

• realistic tolerances over repeated cycles

Application fit: you want to discover manufacturability issues while they’re still cheap to fix.

3) Bridge production for EVT/DVT/PVT and early ramp

When the design is “stable enough,” but you’re not ready to invest in full production tooling (or you can’t wait for it), bridge tooling supports:

• pilot runs

• early customer builds

• field trials

• limited launch quantities

Application fit: you need real parts on a real timeline, but demand or design maturity doesn’t justify production tooling yet.

4) Market testing and low-volume launches

If you’re validating demand, you often need hundreds to a few thousand parts—not hundreds of thousands.

Rapid tooling is a good fit when:

• you need sellable parts quickly

• you expect revisions after feedback

• you want to avoid sunk cost if the product pivot is still possible

5) Service parts, spares, and controlled replenishment

Some products never justify high-volume tooling:

• legacy SKUs with intermittent demand

• niche industrial components

• replacement covers, brackets, clips

Application fit: you want a repeatable process for small re-orders without re-opening a full tooling program.

Rapid tooling for injection molding: where it shines

Injection molding is where rapid tooling delivers the most leverage because it lets you validate the whole system: part design, tool design, and the molding process window.

Aluminum rapid tooling: the practical sweet spot

For many teams, aluminum rapid tooling is the go-to option for short-run injection molding because it’s fast to machine and efficient for heat transfer (cooling time drives cycle time).

It’s a strong fit when:

• the resin isn’t unusually abrasive (for example, heavy glass-filled grades can accelerate wear)

• the part doesn’t require extremely aggressive high-speed cycling

• your goal is validation, bridge production, or controlled low-volume output

Bridge tooling: when schedule matters more than maximum tool life

Bridge tooling is the “get parts now, don’t paint yourself into a corner later” option.

Use it when:

• production tool lead time would block your launch

• you need a pilot run while the final tool is being built

• you expect one more design change after DVT feedback

When rapid tooling is a bad fit

Rapid tooling isn’t a universal answer. It’s the wrong tool when the physics (wear, heat, pressure) are working against you.

Red flags that push you toward production tooling

• Abrasive materials (high glass fill, mineral-filled compounds) that can wear gates and shutoffs quickly

• Very tight CTQ tolerances with low drift tolerance across the run

• High cosmetic demands with zero tolerance for flow marks, weld lines, or pin witness

• High volume where tool life and cycle optimization dominate total cost

A decision framework: pick the right rapid tooling approach

If you’re deciding whether to use rapid tooling (and which type), run this quick engineering check.

Step 1: Define your learning goal (what must be true after this run?)

Be specific:

• “Validate gate location + weld line risk on the cosmetic face”

• “Prove snap fit durability and assembly stack-up”

• “Verify sealing performance across temperature”

• “Get 500 parts for a field pilot by a fixed date”

If you can’t state the goal, you’ll overbuild the tool—or under-spec it and waste cycles.

Step 2: Classify CTQ features and inspection needs up front

Before cutting steel (or aluminum), identify:

• CTQ dimensions (and how you’ll measure them)

• required documentation: First Article Inspection (FAI), CMM reports, material certs

• acceptable variation across the run

This prevents the common failure mode: a tool that can make parts, but can’t make parts you can qualify.

Step 3: Estimate volume realistically (and include iteration)

Instead of “we need 1,000 parts,” ask:

• How many do we need for EVT/DVT/PVT builds?

• How many for spares + replacements?

• How many will we scrap during tuning and DOE?

Volume drives whether you should bias toward faster tooling (more learning) or longer-life tooling (more output).

Step 4: Choose the tooling level

A practical rule of thumb:

• Prototype/soft tooling: fastest learning, shortest runs

• Aluminum rapid tooling: balanced speed + part quality for low-to-mid runs

• Bridge tooling: pilot output while production tooling is built

• Production tooling: repeatability and durability for high volume

Common pitfalls

Pitfall 1: Treating rapid tooling like production tooling

Rapid tools can produce excellent parts, but they’re not designed for the same longevity.

Avoid it by: aligning the tool spec with the real objective (learning vs. long-run cost) and planning for maintenance or inserts if wear is expected.

Pitfall 2: Skipping DFM until after the tool is cut

Most “rapid tooling failures” are really late DFM.

Avoid it by: doing an engineer-to-engineer DFM review focused on:

• draft on all vertical faces

• uniform wall thickness and rib design

• shutoff risk areas

• gate location, venting, and ejection strategy

Pitfall 3: Under-venting (burn marks, shorts, unstable fill)

Venting problems show up fast in rapid tooling because you’re often moving quickly and iterating.

Avoid it by: explicitly reviewing end-of-fill zones and thin features for venting early, then validating with a small DOE during sampling.

Pitfall 4: CTQ drift during the run

Even when early shots look great, wear and thermal effects can move dimensions.

Avoid it by:

• setting CTQ inspection checkpoints (not just first-article)

• capturing a process window (temperature, pressure, pack/hold) that produces stable output

• planning insert changes if a feature is both CTQ and wear-sensitive

Pitfall 5: Paying “change costs” repeatedly

Rapid tooling is faster—but design changes still cost money and time.

Avoid it by: freezing the minimum viable geometry first, then iterating only what you must learn next.

If you’re trying to move from prototype to early production without juggling multiple vendors, a one-stop partner like Kaierwo can support rapid tooling alongside CNC machining and molding so you can validate parts and transition more smoothly when the design stabilizes.

FAQ

What is the difference between rapid tooling and rapid injection molding?

Rapid tooling describes the tool-building approach (how fast you can create a mold or insert). Rapid injection molding usually describes the overall service/output: quick-turn tooling plus short-run molded parts.

How many parts can you get from a rapid tool?

It depends on tool material, resin abrasiveness, part geometry, and maintenance. In practice, rapid tooling is commonly used for tens to low-thousands of parts, and sometimes more when conditions are favorable. If CTQ drift or wear risk is high, plan on a shorter effective run.

When should you switch to production tooling?

Switch when the design is stable and the business case favors long-life tooling—especially if you’re seeing wear risk, you need very tight repeatability over long runs, or volumes are high enough that cycle-time optimization and tool life dominate total cost.

What should I include in a rapid tooling RFQ?

At minimum:

• CAD + drawing with CTQ callouts

• target resin and expected annual volume

• surface finish requirements (cosmetic vs. non-cosmetic faces)

• inspection requirements (FAI, CMM, material certs)

• schedule target (EVT/DVT/PVT timing)
