I graduated from Jiangxi University of Science and Technology, majoring in Mechanical Manufacturing Automation.
Aluminum’s lightweight strength makes it ideal for aerospace, automotive, and electronics—but up to 60% of scrap in precision machining stems from warping and distortion. Why? The metal’s low hardness and high thermal expansion (23.1 µm/m·K) amplify vulnerabilities during CNC machining of aluminum parts, especially in thin-walled designs. For engineers and machinists, this isn’t just frustrating; it’s costly.
Deformation isn’t inevitable. By addressing three core areas—material prep, tool optimization, and thermal control—you can slash scrap rates and hit tolerances under ±0.05 mm. This article delivers actionable strategies from industry leaders, proven to stabilize even complex geometries. Start implementing them today with a trusted aluminum CNC machining service—and transform precision from a challenge into a guarantee.
While material prep reduces risks, knowing why deformation happens is essential. Aluminum distorts from four core issues. Each demands specific solutions.
High cutting speeds generate intense heat. Thin walls expand unevenly when temperatures spike. This uneven expansion warps parts. Heat concentrates most where tools contact the material. Without rapid cooling, distortion becomes unavoidable.
Raw aluminum blanks hold hidden tension from quenching or rolling. Machining releases this trapped energy. Internal stresses push material out of alignment as cutting removes sections. Stress maps show high-risk zones in thicker areas.
Tool pressure bends thin sections during cutting. Clamping devices squeeze parts too tightly. Vibration amplifies these forces. Rigid setups minimize movement but transfer pressure. Delicate features deflect under tool contact.

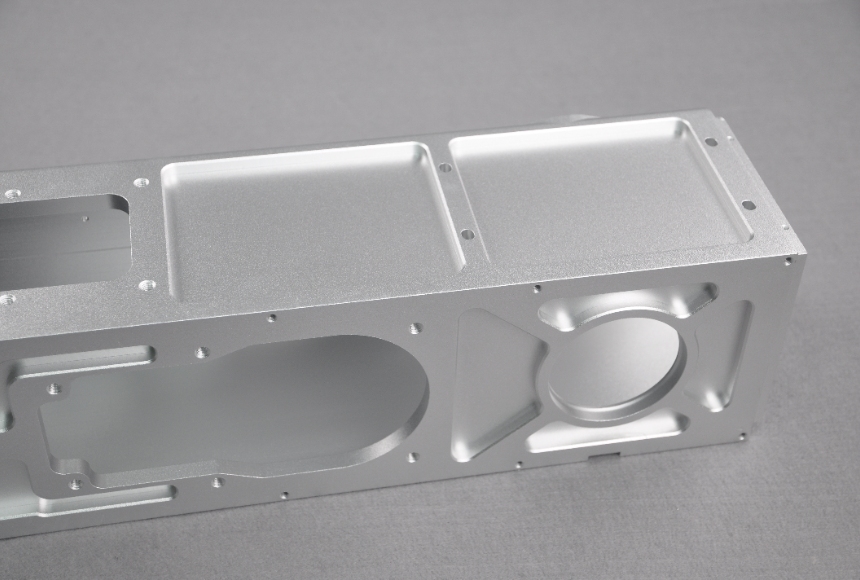

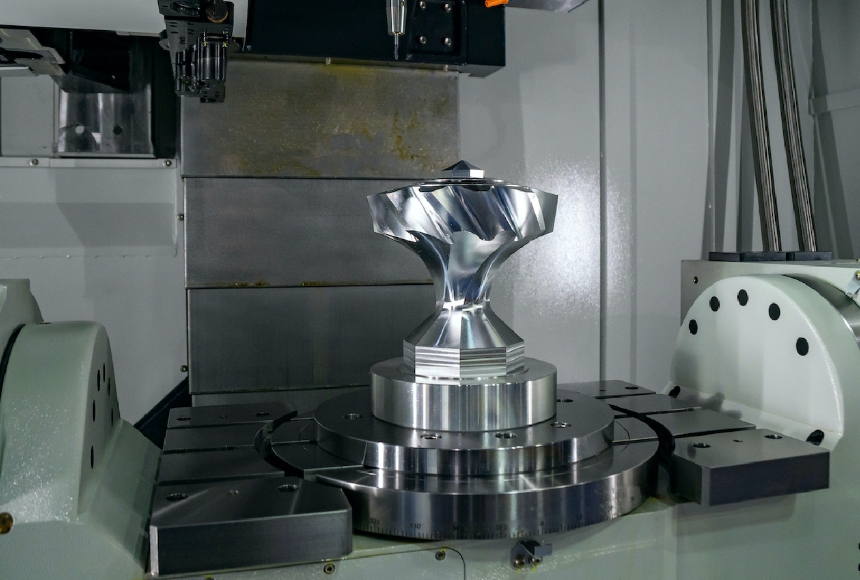

Thin walls lack structural support. Large surface areas magnify vibration effects. Asymmetric designs heat unevenly. Deep pockets trap heat and chips. These shapes amplify other stresses.
Understanding deformation causes is step one. Now we fix them at the source. Proper material prep stops problems before machining starts.
Natural aging takes weeks. Aluminum sits at room temperature. Stresses reduce slowly. Artificial aging is faster. Heat blanks to 175°C for 8 hours. This stabilizes the crystal structure. Both methods prevent later distortion.
Remove material evenly from both sides. The T3+B7 strategy works: machine 3 mm from the top, then 7 mm from the bottom. Alternate in small steps. This balances released stresses. Tests show 95% less warping than one-side cutting.
Cut away excess material first. Rough blanks to near-net shape. Leave 1–2 mm for finishing. This removes high-stress zones from raw stock. Internal tension drops before precision machining.
Material prep sets the stage. Now tools take center stage. Right tool choices prevent heat and force issues in aluminum machining.
Carbide end mills handle aluminum best. Coatings like TiN or DLC reduce friction. Less friction means lower temperatures. Cool tools last longer and cut cleaner. Uncoated tools fail faster against aluminum’s stickiness.
Rake angles above 10° slice metal smoothly. This reduces cutting heat. Helix angles of 35° or higher lift chips out fast. Stuck chips cause scratches and heat. Use 2–3 flute tools for best chip clearance. Tight spaces need fewer flutes.
Check tools every 50 parts. Measure edge wear with microscopes. Replace tools at 0.2 mm wear or less. Worn tools rub instead of cut. This builds heat and edge buildup. Fresh tools keep dimensions accurate.
Tool geometry alone isn’t enough. Precise cutting settings control heat and force during operations.
Run spindles at 500–600 m/min. Cut depths stay under 0.5 mm. High speed prevents work hardening. Shallow passes reduce tool pressure. Thin walls withstand these conditions.
Set feeds between 0.2–0.25 mm/rev. Slow feeds rub material and overheat it. Fast feeds increase vibration and tool deflection. Balanced feeds prevent both problems.
Parameter Impact on Deformation
Depth of Cut (mm) | Feed Rate (mm/rev) | Deformation (mm) |
2.0 | 0.1 | 3.5 |
0.5 | 0.25 | 1.2 |
Flood coolant at 1000+ PSI penetrates cuts. Cryogenic cooling uses liquid nitrogen. Both methods remove heat instantly. Effective cooling stops thermal expansion. Chip removal prevents re-cutting damage.
Cutting parameters set the foundation. Now implement smarter machining methods for complex parts.
Machine alternating sides of the part. Complete one pass on face A. Then switch to face B. Repeat until finished. This balances heat buildup. Even temperature distribution prevents warping in thin sections.
Divide deep cavities into layers. Cut each layer completely before going deeper. Remove 0.8 mm per layer in finishing passes. This spreads cutting forces evenly. Reduced pressure minimizes bending in tall walls.
Drill holes before milling cavities. Make holes 0.5 mm larger than end mills. This creates chip escape routes. Chips clear faster during milling. No trapped chips means less heat and friction.
Always finish with down-milling. The cutter moves with the feed direction. This shears material cleanly. Reduced tool pressure prevents part deflection. Final passes stay within ±0.02 mm tolerance.
Advanced techniques reduce stress during cutting. Physical support systems lock parts in place. They prevent distortion from start to finish.
Vacuum chucks hold delicate parts without pressure. Low-torque clamps use under 0.5 N·m force. Both methods secure thin walls without bending. Flexible fixtures adapt to complex shapes.
Clamp parts tightly for roughing. Release clamps after initial passes. Re-clamp gently at 30% original torque. This relieves internal stress before finishing. Final cuts stay distortion-free.
Fill hollow sections with urea–potassium nitrate. This mixture supports thin walls during machining. It solidifies at room temperature. After cutting, dissolve filler in 90°C water. No residue remains.
Validate stability with aluminum processing quality control. Measure part movement during clamping. Adjust fixtures until deflection stays below 0.01 mm.
Fixturing supports parts physically. Now manage heat and verify results. Heat causes expansion. Validation catches warping.
Minimum-quantity lubrication (MQL) sprays tiny oil droplets. Target flow: 50 ml/hour at 60 PSI. This cools tools without soaking parts. Heat drops by 40% versus dry cutting. Cooler tools mean stable dimensions.
Scan parts with CMM or laser systems. Measure warpage at 0.001 mm accuracy. Compensate for spring-back in CAD models. Adjust future toolpaths by 0.05–0.1 mm offset. This cancels out material memory distortion.
Freeze parts to –190°C for cryogenic processing. Hold for 6–8 hours. Slow warming follows. This realigns aluminum’s crystal structure. Residual stress drops below 5 MPa.
Aluminum processing quality control confirms stability. Track part dimensions for 24 hours post-machining. Movement under 0.02 mm passes validation.
Mastering deformation in CNC machining of aluminum parts demands precision at every stage: neutralize residual stresses through aging and asymmetric cutting, optimize tool geometry with high-helix end mills and coatings like DLC to slash heat, and deploy stratified cutting for force distribution. These proven methods—validated across aerospace and high-precision industries—deliver dimensional stability under ±0.05 mm.
