How to Select Datums for CNC Machined Parts: A Practical Design Guide

A hole pattern that measures correctly from one edge but misses its mating component can turn a finished CNC part into scrap. For CNC machining, consistent datum selection helps designers, machinists, and inspectors prevent that mismatch. This guide explains how to select a primary datum, plan fixture design around functional surfaces, and apply GD&T through a datum reference frame (DRF), 3-2-1 locating, and true position. It also covers CNC part datum selection for multi-setup machining and a practical datum scheme for CNC milling and turning.

What Are Datums and Datum Features?

A datum is a theoretically exact point, axis, or plane used as a reference for defining or measuring a part. A datum feature is the real surface, hole, slot, or other feature that establishes that reference. For example, a machined face is a datum feature; the ideal plane derived from it is the datum.

On an engineering drawing, datum feature symbols identify the physical features used to establish a datum reference frame. The frame commonly has a primary, secondary, and tertiary datum. Their order matters: the primary datum constrains the most motion, the secondary constrains additional motion, and the tertiary removes the remaining freedom. In a typical planar setup, this arrangement limits the part’s six degrees of freedom: three translations and three rotations.

The 3-2-1 locating method is a familiar way to visualize this constraint scheme. Three contact points support a primary plane, two locate a secondary plane, and one locates a tertiary plane. Real fixtures may use more contact points or different locating hardware, but the principle remains: constrain the part securely without unnecessarily restricting it twice. Datum selection and geometric dimensioning and tolerancing (GD&T) should follow the drawing standard specified for the job, such as ASME Y14.5 or the applicable ISO GPS standard.

Start with the Part’s Assembly Function

Start with the assembled part, not with the easiest surface to clamp. Identify the features that locate, mate, seal, rotate, or carry load in service. Those functional relationships should guide the datum scheme because a part inspected from a convenient but unrelated edge can pass inspection and still fail during assembly.

For each critical feature, ask what it must align with. A mounting-hole pattern may be located from two mating faces; a shaft may run from its bearing journals; a sealing face may need to remain perpendicular to a bore axis. If a hole’s position controls assembly, reference its position tolerance to the datums that locate the mating component—not automatically to the nearest outside edges.

Then review the manufacturing plan. A functional datum is not always the best surface to use in the first operation: it may still be raw stock, inaccessible, or unfinished. In that case, select a temporary machining datum that can be transferred reliably to the final functional datum. Record the relationship between them and avoid dimensioning each operation from a different, unrelated surface.

Six Steps for Datum Selection and Setup Planning

1. Map the functional interfaces

List the mating faces, locating bores, bearing seats, sealing surfaces, and fastener patterns. Mark which relationships control fit or performance. This is the foundation for CNC part datum selection for multi-setup machining.

2. Choose the primary datum feature

Select a stable, accessible feature that represents the part’s main seating or alignment condition. A broad, finished planar face often works for a prismatic component; a functional bore or journal axis may be more appropriate for a rotational component.

3. Add secondary and tertiary references

Choose features that locate the part in the directions the primary datum does not control. Make sure each reference contributes a distinct constraint. Do not use several datums that redundantly constrain the same motion unless the specified standard and datum simulator make that intent clear.

4. Check the fixture contact scheme

Compare the drawing’s datum order with the actual locators, supports, clamps, and workholding surfaces. Clamps should hold the part against locators; they should not push it away from them. Avoid clamping thin walls or unsupported areas in ways that distort the part.

5. Plan datum transfer between operations

Decide how the first setup creates or references a surface used later. Whenever possible, retain a common datum feature, use a machined locating feature, or probe a known reference. If a setup change introduces a new reference, account for the resulting tolerance stack rather than assuming it is zero.

6. Define inspection from the same scheme

Specify how the part will be seated and aligned during measurement. A CMM, height gauge, fixture, or machine probe can produce different results if it establishes the datums differently. The inspection method should reproduce the drawing’s datum reference frame and its applicable modifiers.

Apply a Datum Scheme for CNC Milling and Turning

Select Datums for CNC Milling Parts

For a plate or bracket made by CNC milling, a common arrangement is a finished bottom face as primary datum A, a long side as secondary datum B, and an end face as tertiary datum C. In a fixture, three supports establish A, two side locators establish B, and an end stop establishes C. This layout can make the part’s hole coordinates correspond to how it sits in an assembly.

That arrangement is not automatic. If the bottom face is not functional, is rough, or is likely to warp under clamping, another interface may be a better primary reference. Also consider whether a hole pattern should be located from the two mating faces rather than from the outer perimeter. The chosen datums should describe the intended assembly relationship and be practical to reproduce in both machining and inspection.

Select Datums for CNC Turning Parts

For a shaft produced by CNC turning, a functional journal may establish a datum axis, while a shoulder face establishes an axial reference. If two bearing journals jointly control rotation, the drawing and inspection plan must explain how their common axis is established. A center hole can help support and machine a shaft, but it should not become the design datum merely because it is convenient unless it represents the functional relationship.

For a turned housing, a bore axis may be the primary reference when the housing locates around a shaft or bearing. A flange face can then control axial position. Think about the mating condition and the inspection simulator before choosing a datum feature of size; the derived axis or center plane depends on the specified datum-feature requirements and standard.

Verify the Datum Scheme During Setup and Inspection

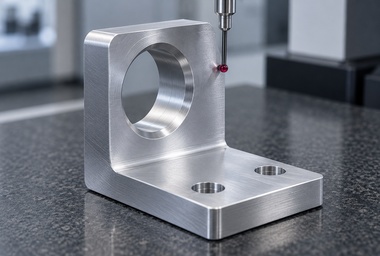

Datum planning is not complete until the shop can establish the references repeatedly. A machinist may use a vise, soft jaws, a fixture plate, a mandrel, or a collet, depending on the geometry. Indicators can check seating and alignment; a spindle probe can locate a surface or bore; a CMM can establish the specified datum reference frame for inspection. The right method depends on feature access, part rigidity, tolerance, and the inspection standard.

For a tight positional tolerance, the quality inspection plan should cover the full measurement chain: locator condition, clamping sequence, probe or indicator method, machine calibration, temperature, and part cleanliness. A stated tolerance alone does not establish achievable process capability. Verify repeatability on the actual part and equipment, and use measurement-system analysis where the quality plan requires it. Keep setup records and clear setup pictures that show locator positions, clamp direction, and the datum features being contacted; those records help operators reproduce the intended setup.

Worked Example: Datum Selection for a Mounting Plate

Consider a 100 × 60 × 20 mm aluminum mounting plate with four clearance holes that must align with a mating frame. Assume the plate seats on its bottom face, registers against a long side and an end, and the hole pattern controls assembly. A practical starting scheme is the bottom face as primary datum A, the long side as secondary datum B, and the end face as tertiary datum C.

The datum roles can be summarized as follows:

The machinist can locate the plate on supports against A, side locators against B, and an end stop against C. The hole positions are then defined relative to the same frame. If the plate is made in multiple setups, the process plan should preserve or re-establish A, B, and C—or use a documented transfer method. The inspector should simulate the same datum order before evaluating the hole-position tolerance.

Suppose the drawing gives the hole pattern a true-position tolerance of ⌀0.20 mm relative to A, B, and C. That value is an example, not a universal recommendation: the required tolerance must come from the mating-part clearance, assembly function, and applicable design rules. A tolerance stack should include the frame’s locating variation, the hole-making process, and the mating component’s variation. If the hole pattern is repeatedly near the tolerance limit, investigate datum contact, burrs, clamp distortion, and setup transfer before simply tightening the machining tolerance.

Common Datum Selection Issues and How to Avoid Them

Separate Design Datums from Process References

A cast or saw-cut surface may be useful to locate stock during roughing, but it may not be a reliable final reference. Label process references clearly on setup documentation and avoid confusing them with the drawing’s functional datums.

Account for Material Movement and Clamping Distortion

Thin sections can deflect under clamping, while castings and weldments may move as material is removed. Support the part near cutting forces, use a controlled clamping sequence, and consider stress relief or intermediate inspection when the material and geometry warrant it. A datum scheme cannot compensate for an unstable workpiece.

Check Datum Feature Modifiers

Where permitted by the drawing standard, material-boundary modifiers can affect how a datum feature simulator contacts a feature and how permissible variation is evaluated. They should be applied only when the functional requirement supports them and the inspection approach can interpret them correctly.

Keep the Datum Scheme Accessible for Inspection

A theoretically elegant datum that cannot be contacted by the intended fixture or measurement equipment creates ambiguity. Before release, have design, manufacturing, and quality review the same datum plan. For complex components, use a drawing review and a setup simulation to catch conflicts before production. During rapid prototyping, a trial setup can also help check locator access and repeatability before committing to production fixtures.

Choose a Practical Datum Plan for Your CNC Parts

The reliable approach is to work backward from assembly function, select a primary datum that reflects the main seating or alignment condition, and add secondary and tertiary references that constrain the remaining motion without overconstraint. Confirm that the fixture, machining sequence, and inspection method can all reproduce the same datum reference frame. A clear datum plan connects assembly requirements with repeatable workholding and inspection. Document datum transfers between setups, confirm the condition of locating surfaces, and review any material-boundary modifiers before releasing the drawing.

For support with a datum-sensitive component, contact us with your 2D drawing, 3D model, material, and critical assembly requirements. Kaierwo can review the proposed machining and inspection approach before production begins.
