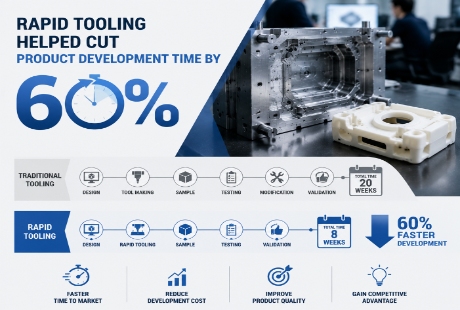

How Rapid Tooling Helped Cut Product Development Time by 60%

Rapid tooling helped cut product development time by 60% in this case-style example because the team replaced a long sequence of 3D-printed prototypes, delayed molded testing, late DFM changes, and production-tool waiting time with an early aluminum prototype mold. The original plan took about 30 weeks from design freeze to validated pilot parts. The rapid tooling for product development plan reached the same decision point in about 12 weeks, a 60% reduction. The time savings came from earlier molded parts, faster design feedback, parallel testing, controlled bridge production, and fewer late changes to production tooling.

The Starting Problem: Prototype Data Was Not Production Data

The product was a handheld industrial electronic housing with snap fits, a battery door, a gasket groove, threaded inserts, and cosmetic outer surfaces. The team had 3D-printed prototypes, but the printed parts did not accurately represent injection molded behavior. Snap stiffness, surface feel, gasket compression, screw boss strength, and drop-test performance all depended on molded resin and molded fiber orientation. Without rapid tooling for product development, the team would have waited for production tooling before discovering several high-risk issues.

This is a common problem. Additive manufacturing is excellent for early concepts, and NIST notes that additive manufacturing supports shorter-period prototyping and customized production. But molded validation is different from printed visualization. When the manufacturing process affects part behavior, rapid tooling for product development gives the team more relevant evidence before committing to final production tooling.

The Original 30-Week Timeline

The original plan looked normal on paper. Weeks 1 to 4 were used for final CAD cleanup and internal review. Weeks 5 to 8 were reserved for supplier sourcing and DFM. Weeks 9 to 18 were planned for production mold design and machining. Weeks 19 to 22 were first samples and inspection. Weeks 23 to 26 were engineering changes. Weeks 27 to 30 were pilot samples and validation. The schedule assumed that the first production-mold samples would be close to correct.

That assumption was risky. If snap fits were too stiff, if the gasket groove did not seal, or if the threaded bosses cracked during torque testing, the production mold would require expensive changes. The team also could not start real assembly tests until the molded parts arrived. In other words, the project sequence made manufacturing feedback arrive too late. Rapid tooling for product development was introduced to move that feedback earlier.

The Rapid Tooling Strategy

The team built a one-cavity aluminum rapid tool for the main housing and a simplified insert tool for the battery door. The goal was not full production efficiency. The goal was to produce molded parts from the intended resin, validate critical features, and learn before the steel production mold was finalized. The supplier performed DFM during the first two weeks, focusing on draft, wall thickness, gate location, ejector marks, weld lines, screw bosses, and gasket geometry. This early DFM reduced uncertainty before any metal was cut.

The aluminum tool produced the first usable molded samples in week 5. Protolabs publishes prototype tooling lead times as fast as seven days for certain projects, and quick-turn suppliers commonly use aluminum tooling to reduce mold-build time. In this case, the lead time was not the only benefit. Rapid tooling for product development created a physical decision platform. Engineers could test, modify, and retest while the production mold design was still flexible.

What the Molded Samples Revealed

The first molded parts showed four issues that printed prototypes had not exposed. First, the snap hooks were too stiff in molded PC/ABS and risked whitening after repeated use. Second, the gasket groove compressed unevenly near a corner because wall thickness created localized sink. Third, the threaded insert boss needed more support during torque testing. Fourth, the visible gate location created a cosmetic concern. These discoveries were valuable because they happened before steel tooling was released.

Each issue had a manageable solution. Snap geometry was softened, the gasket groove was adjusted, support ribs were added near the boss, and the gate was moved to a less visible area. Because the aluminum rapid tool was part of the rapid tooling for product development strategy, the team expected changes and budgeted for them. The modifications were completed without stopping the entire program.

How the 60% Reduction Was Calculated

The rapid timeline used weeks 1 to 2 for DFM and final rapid-tool design, weeks 3 to 5 for aluminum mold machining and first samples, weeks 6 to 8 for functional testing and tool modification, weeks 9 to 10 for second samples, and weeks 11 to 12 for pilot approval. The project reached validated pilot parts in 12 weeks instead of 30 weeks. The reduction was 18 weeks, and 18 divided by 30 equals 60%. This calculation is specific to the case, but it shows how rapid tooling for product development can change the order of learning.

The largest gain was not simply faster machining. It was the removal of waiting time. Testing began while the production tooling plan was still open. Design changes were made before final steel mold approval. Purchasing could prepare bridge-production quantities while engineering validated performance. Rapid tooling for product development turned a sequential process into a parallel process.

Business Impact Beyond the Calendar

The project also improved business decisions. Sales received molded demonstration parts earlier. Quality could define inspection points using real parts. Manufacturing could review assembly fixtures before production launch. The supply chain team could confirm packaging and shipment protection. These activities reduced launch risk, even though they were not all visible in the 60% time calculation.

McKinsey has described digital-twin technologies as tools that can help companies create better products faster. Rapid tooling for product development plays a complementary physical role. Digital simulation and 3D printing can reduce uncertainty, but molded parts reveal process-dependent behavior. When teams combine digital review, rapid prototyping, and aluminum rapid tooling, development decisions become faster and more grounded.

Lessons for Other Teams

The main lesson is to define what must be learned before production tooling. Rapid tooling for product development is most valuable when the part has process-sensitive features: snap fits, living hinges, seals, threaded inserts, clips, cosmetic surfaces, thin walls, high-wear zones, or tight assembly interfaces. It is less valuable when the part is purely visual or when the production design is already fully proven.

The second lesson is to plan rapid tooling as a project stage, not an emergency shortcut. The RFQ should include test goals, resin, sample quantities, critical dimensions, inspection needs, and change rules. The buyer should also decide whether the aluminum tool will be scrapped after validation, kept for spare parts, or used for bridge production. Clear intent makes rapid tooling for product development more effective.

Buyer Decision Note

When buyers connect rapid tooling for product development to the next development milestone, the discussion becomes more practical. rapid tooling for product development should clarify what the team must learn, which samples must be approved, and what evidence is needed before production decisions are made.

The business value of rapid tooling for product development also depends on avoiding poor learning. A rushed rapid tooling for product development plan without written assumptions may save days at the quotation stage but lose weeks during resin changes, mold repair, or repeated inspection.

Finally, rapid tooling for product development needs acceptance rules. The buyer and supplier should define sample quantity, critical dimensions, modification responsibility, maintenance expectations, and the point at which rapid tooling for product development should transition to production tooling.

Conclusion

In this case-style example, rapid tooling for product development reduced the timeline from 30 weeks to 12 weeks by moving molded validation earlier and allowing design changes before production tooling was locked. The 60% reduction came from parallel learning, not magic. Aluminum rapid tooling provided real molded samples, exposed hidden design issues, supported controlled modifications, and gave sales, quality, and manufacturing teams earlier evidence. For product teams under schedule pressure, rapid tooling for product development can be a practical way to learn faster without confusing prototype speed with production readiness. This is why rapid tooling for product development should be planned as a formal validation stage, not treated as a last-minute sourcing shortcut.
