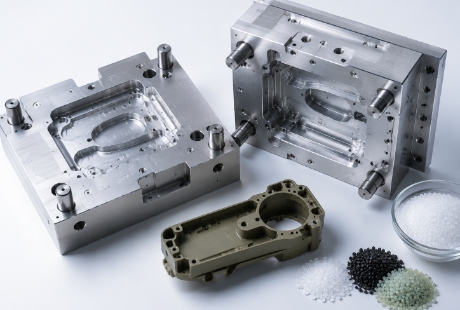

How Many Parts Can an Aluminum Rapid Tooling Mold Really Produce?

A realistic aluminum rapid tooling lifespan is usually planned in the low-thousands to tens-of-thousands of shots, although optimized aluminum tools, mild resins, careful maintenance, and selected steel inserts can extend useful life beyond the first estimate. The important point is that aluminum rapid tooling lifespan is not a fixed number printed on a purchase order. It is a performance range controlled by alloy selection, plastic material, part geometry, gate and runner design, cooling balance, venting, molding pressure, surface requirements, and maintenance discipline. Buyers should ask suppliers to quote an expected aluminum rapid tooling lifespan under the exact resin, quantity, tolerance, and inspection conditions of the project rather than accepting a generic answer.

Why Shot Count Is Only the Starting Point

Many buyers ask, ‘How many parts can this aluminum mold produce?’ The simple answer is useful, but incomplete. Industry sources often place aluminum prototype molds around 2,000 to 10,000 shots, while some modern aluminum tooling references describe 10,000 or more cycles and optimized cases that can go higher. Fictiv notes that aluminum tooling often supports 10,000 shots or fewer depending on design and material, and Protolabs describes aluminum molds as usable for 10,000 cycles or more in suitable low-volume programs. Prototek, in a recent tooling discussion, gives a broader 10,000 to 100,000+ shot range for optimized aluminum tooling. These figures show why aluminum rapid tooling lifespan must be treated as an engineered estimate, not a universal promise.

A better question is: how many acceptable parts can the tool make before dimensional drift, flash, surface damage, cycle instability, or repair cost becomes unacceptable? That question connects aluminum rapid tooling lifespan to quality requirements. A simple PP cap with generous tolerances may survive far longer than a glass-filled nylon connector with tight shutoffs. The shot count is only meaningful when it is tied to the acceptance criteria for the molded part.

The Role of Plastic Resin in Aluminum Rapid Tooling Lifespan

Plastic resin is one of the strongest drivers of aluminum rapid tooling lifespan. Commodity materials such as PP, PE, PS, and ABS are usually easier on aluminum than glass-filled nylon, glass-filled PBT, flame-retardant compounds, mineral-filled resins, or high-temperature engineering plastics. Abrasive fillers act like fine cutting media inside the cavity, gates, runners, and shutoffs. Corrosive or high-temperature resins can also attack the tool surface or accelerate wear. If the product requires a filled or demanding resin, the supplier should review whether aluminum rapid tooling lifespan can be protected with steel inserts, surface treatments, revised gate locations, or a steel tool instead.

Resin also affects process pressure and temperature. Higher injection pressure can stress thin shutoffs, slides, and delicate cavity details. Higher mold temperature can reduce the advantage of aluminum’s thermal conductivity and raise maintenance demands. For this reason, the quoted aluminum rapid tooling lifespan should identify the exact resin grade, filler percentage, colorant, drying requirements, and processing window. Changing resin after the mold is built can change the expected aluminum rapid tooling lifespan dramatically.

Geometry and Mold Design Factors

Part design has a direct effect on aluminum rapid tooling lifespan. Sharp internal corners concentrate stress and wear. Insufficient draft increases ejection force and can scrape the cavity surface. Deep ribs and thin walls require higher pressure, which may increase flash risk. Undercuts, lifters, and slides create moving interfaces that need alignment and lubrication. Small shutoffs in aluminum can wear faster than broad shutoffs, especially when glass-filled materials are used. A design that looks simple in CAD may still reduce aluminum rapid tooling lifespan if it forces aggressive molding conditions.

Good mold design can extend aluminum rapid tooling lifespan. Generous radii, suitable draft, balanced wall thickness, well-placed gates, stable parting lines, effective venting, and robust ejection reduce stress on the tool. In high-wear zones, steel inserts can protect gates, shutoffs, lifter faces, threaded features, and parting-line edges. Cooling design also matters because balanced cooling reduces warpage and pressure corrections. When DFM is done early, aluminum rapid tooling lifespan becomes a design outcome rather than a surprise discovered during production.

Maintenance, Sampling, and Production Discipline

The way the tool is used can be as important as the way it is built. Poor startup procedures, excessive clamp force, inadequate lubrication, dirty resin, short purge routines, and careless storage can shorten aluminum rapid tooling lifespan. A disciplined molding team will track shots, inspect critical features, clean vents, verify ejection, monitor flash, and record repairs. The buyer should ask whether the supplier will provide a maintenance plan and a shot-count log, especially when the mold may be reordered over several batches.

Sampling discipline also affects aluminum rapid tooling lifespan. First shots often require process tuning, and aggressive experimentation can damage a soft tool if it is not controlled. A professional supplier will use a structured trial plan: initial inspection, process window study, dimensional review, engineering adjustment, and approval run. This keeps the aluminum mold from being used as a casual experiment and protects the project from premature wear.

How Buyers Should Specify Expected Life

A clear RFQ should define the required aluminum rapid tooling lifespan in business terms. Instead of asking for ‘one aluminum mold,’ specify the resin, part quantity for the first run, total expected demand, inspection requirements, cosmetic standard, tolerance-critical features, number of cavities, and re-order plan. Ask the supplier to state expected shot life, guaranteed sample quantity, maintenance responsibility, repair pricing, and what happens if the tool wears before the agreed quantity. This is especially important when the project is moving from prototype validation to bridge production.

Buyers should also distinguish between minimum guaranteed life and practical usable life. A supplier may guarantee 2,000 parts but expect the tool to last much longer under normal conditions. Another supplier may advertise a high number but exclude abrasive resins, tight dimensions, or cosmetic surfaces. The best aluminum rapid tooling lifespan estimate is therefore conditional and transparent. It should describe assumptions, not just a number.

How to Build a Practical Safety Margin

A useful purchasing practice is to define a safety margin around aluminum rapid tooling lifespan before the order is placed. If the program needs 5,000 approved parts, do not choose a plan that assumes exactly 5,000 perfect shots. Include samples, setup parts, destructive tests, inspection reserves, and possible rework in the quantity model. For example, a buyer may need 5,000 saleable parts but 6,000 to 7,000 molded shots when trials, dimensional studies, color checks, and packaging validation are included. That difference changes the aluminum rapid tooling lifespan requirement. A responsible supplier should help calculate this buffer and recommend whether the mold should include steel inserts, improved cooling, or a more durable tooling material.

Conclusion

An aluminum mold can sometimes produce a few thousand parts, sometimes ten thousand or more, and in optimized cases significantly more. The true aluminum rapid tooling lifespan depends on resin, geometry, alloy, mold design, process control, maintenance, and quality expectations. For buyers, the safest approach is to treat aluminum rapid tooling lifespan as an engineered range supported by DFM, material review, shot tracking, and written assumptions. When those elements are handled well, Aluminum Rapid Tooling can be a reliable way to produce validation parts, market-test batches, and bridge-production quantities without the cost and time of full production tooling.
