How 5-Axis CNC Machining Improves Complex Part Manufacturing

5-axis CNC machining coordinates three linear axes—X, Y, and Z—with two rotary axes, usually A and B or B and C. This allows the cutting tool or workpiece to approach complex features from multiple directions during one setup. In my experience, this reduces re-fixturing errors, improves datum control, shortens cycle times, and provides better access to angled, curved, and multi-sided geometry.

For manufacturers producing aerospace components, medical device parts, robotics housings, automotive prototypes, or other complex components, this capability changes more than the cutting operation. It affects CAD/CAM programming, fixture design, tool selection, inspection planning, surface finishing, and supplier evaluation. The central question is not whether five-axis equipment can move in five directions, but whether those movements produce measurable manufacturing benefits for a specific part.

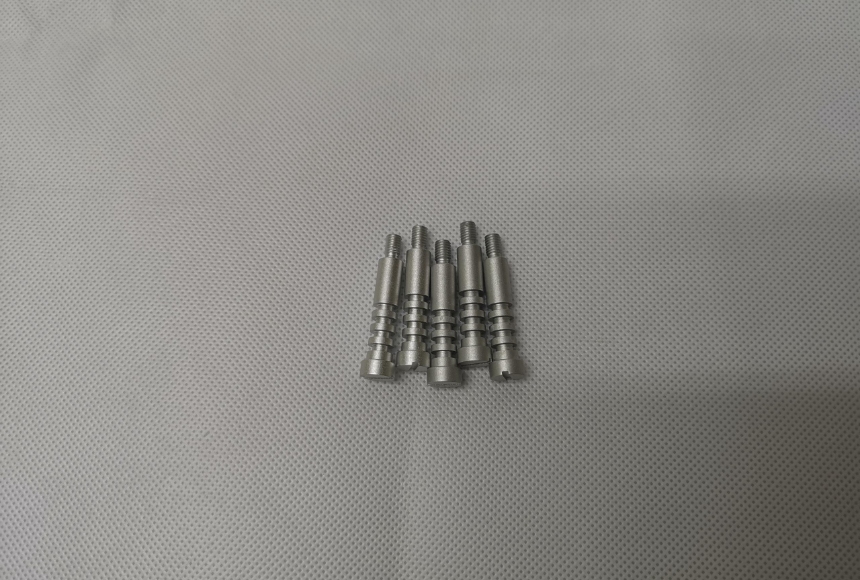

How 5-Axis CNC Machining Improves Complex Part Manufacturing

I evaluate five-axis machining through four practical outcomes: fewer setups, improved access to difficult features, stronger control of feature-to-feature relationships, and more efficient material removal. These benefits are most apparent when a part contains multiple angled faces, compound curves, deep cavities, undercuts, or tight positional relationships between features.

A five-axis machine does not automatically make every part more accurate. Accuracy still depends on machine calibration, thermal control, tool measurement, post-processor reliability, fixture stability, inspection methods, and operator experience. However, when the part design requires several orientations, five-axis machining can reduce the number of times the workpiece is removed and repositioned.

kaierwo describes its manufacturing scope as including 3-axis, 4-axis, and 5-axis CNC machining, along with turning, EDM, wire EDM, surface grinding, finishing, and prototyping services. Its published service information lists support for metals such as aluminum, stainless steel, brass, and titanium, as well as plastics including ABS, POM, and nylon. These capabilities are relevant when a complex part needs more than one process or material option.

How Does 5-Axis CNC Machining Work?

A five-axis CNC machine combines three linear movements with two rotary movements:

Some machine configurations use a rotary table, while others rotate the spindle head or combine spindle and table movement. The machine controller coordinates these axes through programmed toolpaths generated from CAD/CAM software.

There are two common operating methods. 3+2 machining positions the rotary axes at a fixed angle, then cuts using the three linear axes. Simultaneous five-axis machining moves the rotary and linear axes together during cutting, which is useful for compound surfaces, turbine blades, impellers, molds, and other continuously changing geometries.

The distinction matters because simultaneous machining requires more advanced CAM programming, collision checking, post-processing, and machine control. A component may be manufacturable with a five-axis machine but still use 3+2 positioning for some features. Selecting the simplest method that satisfies the design can reduce programming time and production risk.

The Main Benefits of 5-Axis CNC Machining

Fewer Setups and Better Datum Control

The most direct benefit is setup reduction. A three-axis process may require separate fixturing for the top, sides, angled faces, and underside of a component. Each re-fixturing operation introduces a new opportunity for workholding variation, accumulated location error, and damage during handling.

With five-axis machining, I can often reach several faces from a single fixture. This preserves the relationship between holes, pockets, reference surfaces, and external contours because those features are produced from the same work coordinate system. For parts with tight positional tolerances, maintaining the original datum relationship may be more valuable than simply reducing machining time.

Setup savings should be measured rather than assumed. A comparison should include fixture installation, probing, work offset verification, clamping, inspection between operations, and operator handling. A part that requires four three-axis setups may justify five-axis machining even when the hourly machine rate is higher.

Improved Tool Access for Complex Geometry

Tool access is a major limitation in conventional three-axis machining. When a tool approaches a deep wall or angled surface vertically, the tool holder may collide with the part, or the cutter may need to extend farther than is mechanically stable.

Five-axis positioning allows the tool to approach the surface at a more suitable angle. This can permit the use of shorter cutting tools, which generally provide greater rigidity than long-reach tools with the same diameter. Improved tool orientation can reduce deflection, vibration, and excessive step-over requirements.

For example, an aerospace bracket with sloped ribs and intersecting pockets may require long tools on a three-axis machine. A five-axis process can tilt the spindle to reach the same surfaces with shorter tools and more favorable cutting conditions. The result may include fewer passes, better wall control, and reduced risk of chatter.

Better Surface Finish on Curved Surfaces

Surface finish depends on tool geometry, feed rate, spindle speed, step-over, material, toolpath direction, and machine stability. Five-axis machining does not guarantee a particular roughness value, but it can maintain a more favorable tool-to-surface relationship across curved features.

On a complex contoured surface, a fixed three-axis tool orientation may cause the cutter to contact the material at an inefficient location. Tilting the tool can keep the cutting edge in a more controlled position and reduce sudden changes in engagement. This is particularly useful for molds, medical components, impellers, and freeform housings.

A practical manufacturing specification should identify a target roughness, such as Ra 3.2 μm for a general machined surface or Ra 0.8 μm where a finer finish is required. The supplier should then confirm whether the result will come from machining alone, additional polishing, grinding, bead blasting, anodizing, or another finishing operation.

More Efficient Machining of Multi-Sided Parts

Five-axis machining is well suited to parts that contain features on several faces. Examples include orthopedic instruments, sensor housings, robotic joints, aerospace fittings, and automotive prototype components.

Instead of designing multiple fixtures for each side, the machine can rotate the part or spindle to reach different surfaces. This reduces handling and may shorten the time between roughing, semi-finishing, drilling, and finishing operations. The economic benefit becomes stronger when the part has expensive raw material, strict traceability requirements, or a high risk of damage during repeated clamping.

5-Axis CNC Machining vs 3-Axis CNC Machining

The difference between five-axis and three-axis machining is not simply the number of motors. It is the number of directions from which the part can be approached and the number of setups needed to complete the design.

I would normally consider three-axis machining first for flat plates, simple housings, blocks, brackets, and parts whose critical features are accessible from one or two directions. Five-axis machining becomes more appropriate when the part requires several orientations, has difficult tool access, or contains surfaces that are expensive to produce through repeated setups.

The machine rate alone should not determine the decision. A lower hourly rate can be offset by additional fixtures, longer setup labor, repeated probing, more inspection stages, and greater scrap exposure. Conversely, five-axis machining may not be economical for a high-volume part with simple geometry if dedicated fixtures or transfer equipment can reduce three-axis cycle time.

A Decision Framework for Choosing Five-Axis Machining

I use the following questions before assigning a part to five-axis production:

1. How many sides contain functional features?
   If holes, pockets, ribs, or sealing surfaces appear on three or more orientations, calculate the setup burden for three-axis machining.

2. Do critical features share a common datum relationship?
   If the design depends on tight positional alignment between angled faces, holes, and bores, a single setup may reduce accumulated location variation.

3. Does the geometry require angled tool access?
   Check for undercuts, deep cavities, compound curves, tapered walls, and surfaces blocked by the tool holder.

4. What is the material value and scrap exposure?
   Titanium, nickel alloys, medical-grade materials, and large aluminum billets may justify setup reduction because each failed part carries a higher material and processing cost.

5. What production volume is required?
   For one prototype, programming and fixture preparation may represent a large share of total cost. For repeated batches, reduced handling and cycle time may provide a stronger return.

6. What inspection relationships must be verified?
   If multiple features must be inspected relative to one datum structure, preserving that structure during machining can simplify measurement and reduce uncertainty.

This framework prevents a common mistake: selecting five-axis machining because the geometry looks complicated without calculating the actual manufacturing benefit. Some visually complex parts still use simple planar operations, while a small part with several intersecting angled features may strongly justify five-axis processing.

From CAD and CAM to Inspection

The workflow begins with a manufacturability review of the CAD model. I check wall thickness, corner radii, tool clearance, access directions, datum selection, material condition, and tolerance distribution before programming begins. A design with a 0.5 mm wall, for example, may require different cutting parameters and support strategies from a design with a 2 mm wall, even when both use the same alloy.

CAM programming then converts the model into toolpaths. The programmer selects 3+2 or simultaneous five-axis operations, defines tool-axis vectors, sets collision limits, and verifies holder clearance. Simulation should include the machine model, spindle, tool holder, fixture, and raw stock rather than reviewing only the cutter tip.

Fixturing is equally important. A five-axis machine still needs a stable workholding solution that provides clearance for rotary movement and prevents deformation. Low-profile fixtures, soft jaws, modular workholding, and probing systems can help, but each must be matched to the part’s stiffness and cutting forces.

Inspection should be planned before production. Critical dimensions may require a coordinate measuring machine, optical measurement, probing, surface roughness testing, or a first-article inspection report. A supplier’s claim that it uses five-axis equipment does not prove that every part will meet tolerance; the inspection record and process controls provide stronger evidence.

Five-Axis CNC Machining Cost for Complex Parts

The cost of five-axis CNC machining includes more than machine time. I separate the estimate into programming, setup, tooling, cutting time, inspection, finishing, material, and expected scrap.

For prototypes, the higher programming cost may outweigh setup savings. For small manufacturers producing ten to several hundred complex parts, the decision depends on how many operations are eliminated and how much inspection or handling is avoided. For larger production runs, cycle-time reduction and repeatable fixturing become more important.

I recommend requesting an itemized quotation rather than comparing only the price per part. A reliable quote should state material, machine process, estimated cycle time, setup count, tolerance assumptions, surface finish, inspection documents, finishing method, and delivery schedule. Kaierwo presents its services as supporting quantities from one-off prototypes through larger production requirements, which makes this type of volume-based comparison especially relevant.

Common Misconceptions About Five-Axis Machining

One misconception is that five-axis machining automatically guarantees greater accuracy. In reality, accuracy depends on calibration, thermal compensation, rotary-axis alignment, fixture stability, tool condition, probing, and inspection. Five-axis capability can reduce setup-related variation, but it cannot correct poor programming or weak process control.

Another misconception is that every operation should use simultaneous five-axis movement. In many cases, 3+2 positioning is sufficient and easier to verify. Simultaneous cutting should be selected when continuously changing tool orientation provides a clear benefit for surface access, finish, tool loading, or cycle time.

Some buyers also assume that a five-axis quote should always be more expensive than a three-axis quote. The machine rate may be higher, but the complete cost can be lower when the process eliminates fixtures, handling, secondary machining, and repeated inspection. The correct comparison is total manufacturing cost, not hourly rate alone.

Selecting a 5-Axis CNC Machining Service

When I compare suppliers, I review technical capability and process evidence together. The supplier should be able to explain its machine configuration, rotary-axis travel, maximum part size, tool measurement method, CAD/CAM software, collision-avoidance process, inspection equipment, and finishing options.

I also ask for examples involving similar geometry rather than generic claims about five-axis machining. An aerospace component with thin walls requires different process controls from a stainless-steel medical instrument or an aluminum automotive prototype. Material experience, tolerance history, inspection documentation, and communication during design review all influence the final result.

Kaierwo states that it has operated since 2011 and supports CNC machining, 3D printing, vacuum casting, injection molding, sheet metal fabrication, and surface finishing. Its published CNC information also identifies ISO 9001:2015 certification, inspection services, and support for prototype and production quantities. I would still verify current equipment, inspection records, tolerance capability, and project-specific lead time before placing an order.

Conclusion

How 5-Axis CNC Machining Improves Complex Part Manufacturing depends on the relationship between geometry, tolerance, setup count, material, production volume, and inspection requirements. The technology coordinates three linear axes with two rotary axes, allowing a tool to reach angled, curved, undercut, and multi-sided features with fewer workpiece repositioning operations.

For suitable parts, the main gains come from preserving datum relationships, improving tool access, reducing long-tool use, shortening setup time, and limiting secondary operations. The higher programming and machine cost can be justified when those savings exceed the additional process expense.

Before choosing a supplier, I recommend reviewing the CAD model, counting required orientations, identifying critical datums, comparing three-axis and five-axis process plans, and requesting an itemized cost estimate. Ask for tolerance records, inspection methods, surface-finish targets, fixture details, and a clear explanation of whether the process will use 3+2 positioning or simultaneous five-axis machining.
