High-Speed CNC Machining: When Does It Improve Production Efficiency?

When a CNC machine spends too long cutting aluminum housings, mold cavities, or thin-wall parts, increasing spindle speed may look like the obvious fix. High-speed CNC machining for aluminum and high-speed CNC machining for thin-wall parts can shorten cutting time, but only when the machine, cutter, toolpath, and workholding can handle the change. This guide explains when to use high-speed machining, how to test it safely, and how to judge the result using CNC cycle time and material removal rate rather than a headline spindle-speed figure. It also covers chip load, radial engagement, and toolpath smoothing, the details that often determine whether a faster cut becomes a better production process.

What high-speed CNC machining means in production

High-speed machining generally refers to cutting with higher cutting speeds and feed rates than a conventional process for the same material and operation. There is no single spindle-speed threshold that makes every process high speed. A suitable speed depends on the work material, cutter diameter and design, tool coating, operation, machine capability, and the manufacturer's cutting data.

It is also important to distinguish spindle speed from cutting speed. Spindle speed is measured in revolutions per minute. Cutting speed is the speed at which the cutting edge moves relative to the workpiece, commonly expressed in meters per minute. For the same cutting speed, a smaller-diameter tool needs a higher spindle speed than a larger tool.

For a milling operation, a useful planning relationship is:

Spindle speed in rpm = 1000 x cutting speed in meters per minute / (pi x cutter diameter in millimeters)

Feed rate is also tied to the cutter's tooth count and chip load:

Feed rate in millimeters per minute = spindle speed x number of teeth x feed per tooth

These relationships are consistent with the cutting calculations presented in Sandvik Coromant's Modern Metal Cutting: A Practical Handbook. They are planning tools, not a substitute for the cutter maker's data or a shop-floor test. Actual results depend on engagement, machine limits, tool condition, and material behavior.

When high-speed machining improves production efficiency

High-speed machining for aluminum and other productive materials

Aluminum is a common candidate because many aluminum grades can be machined at relatively high cutting speeds with appropriate geometry and chip evacuation.

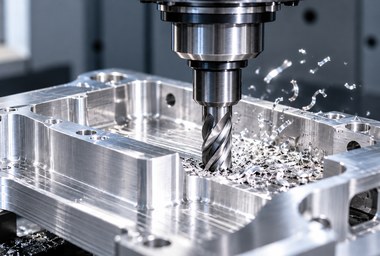

High-speed milling can raise the feed rate and material removal rate when the spindle, holder, cutter, and workholding remain stable. The opportunity is especially clear in operations with long, repeatable cutting paths and frequent production runs, where a modest saving per part can add up across a batch.

Do not assume all aluminum alloys or operations accept the same settings. Alloy, temper, cutter geometry, coolant or air strategy, and chip recutting risk all matter. Start with the cutter manufacturer's recommendations for the specific tool and material, then test the parameters on the actual machine.

High-speed machining for thin-wall parts and mold finishing

Thin walls can deflect under cutting force, leaving dimensional errors, chatter marks, or inconsistent wall thickness. A high-speed strategy can help when it uses a light radial engagement and a smooth toolpath to limit force peaks while maintaining feed. The result depends on the complete setup: wall support, fixture stiffness, tool reach, cutter sharpness, and the direction of the cut all affect stability.

High-speed finishing is also useful for mold and die surfaces when the machine can maintain the programmed feed through curved paths and small direction changes. A CAM program that calls for a high feed rate will not deliver it if the controller repeatedly slows down at short segments. Check the machine's acceleration, look-ahead, interpolation, and toolpath smoothing capabilities, and inspect the finished surface before removing a slower finishing pass.

High-speed machining where cutting time dominates the cycle

Higher cutting rates produce the clearest efficiency gain when actual cutting occupies a substantial share of the total cycle. If a part spends most of its time in loading, probing, tool changes, or inspection, faster milling may make little difference to total output. Separate cutting time from non-cutting time before investing in new tooling or programming.

Use this simple model:

Total cycle time = cutting time + tool-change time + handling time + inspection and other required time

For example, suppose a 100-minute cycle contains 70 minutes of cutting and 30 minutes of other required work. If a validated process cuts machining time by 40 percent while the other work remains unchanged, cutting drops from 70 to 42 minutes and the total cycle drops to 72 minutes. That is a modeled reduction of 28 percent, not a guaranteed shop-floor result. The calculation shows why a large reduction in cutting time may translate into a smaller reduction in total cycle time.

When high-speed CNC machining is not the right move

Higher speed can increase heat, cutting forces, vibration, and tool wear if the process is poorly matched to the machine or material. It can also expose limits in the spindle, toolholder, bearings, workholding, or part rigidity. In those cases, a faster spindle command may lead to a lower-quality part, more tool changes, or unplanned stoppages rather than higher output.

The machine cannot reach or maintain the target: Confirm maximum spindle speed, spindle power and torque across the operating range, axis acceleration, and controller behavior. A machine's maximum rpm alone does not establish its ability to sustain a productive cut.
The setup is not sufficiently rigid: Long tool overhang, a flexible fixture, or a thin unsupported section can create chatter or deflection. Improve support or reduce engagement before raising speed.
Tool life or quality deteriorates: Track tool life, edge condition, dimensions, burrs, surface finish, and scrap. Faster cutting is not efficient if it creates more tool changes or rejected parts.
Chips cannot clear the cut: Recut chips can damage the surface and cutting edge. Adjust the toolpath and coolant or air strategy to suit the material and operation.
Non-cutting time is the real bottleneck: If loading, setup, or inspection dominates the schedule, address those steps first.

How to validate a high-speed CNC machining process

High-speed machining baseline and controlled trial

Record the current process before changing it. Include spindle speed, feed rate, axial and radial depth of cut, tool and holder details, material grade, cutting time, total cycle time, tool life, dimensional results, and surface finish. Use the same part, setup, and inspection method for the trial so that the comparison is meaningful.

Change one main variable at a time when practical. Follow the cutter manufacturer's data, then make a controlled increase in cutting speed or feed while monitoring spindle load, sound, vibration, chip shape, temperature indications, and part quality. Stop and investigate if the process becomes unstable or quality moves outside the drawing requirements.

High-speed machining example with stated assumptions

Consider a theoretical milling example using a 12 mm, four-flute cutter, a feed per tooth of 0.04 mm, an axial depth of cut of 4 mm, and a radial width of cut of 3 mm. At a cutting speed of 300 meters per minute, the calculated spindle speed is about 7,960 rpm and the calculated feed rate is about 1,274 mm per minute. At 600 meters per minute, the corresponding values are about 15,920 rpm and 2,547 mm per minute.

If axial depth and radial width remain unchanged, the theoretical material removal rate rises from about 15,300 cubic millimeters per minute to about 30,600 cubic millimeters per minute. This calculation assumes that the machine can sustain the speeds and feeds, the cutter and holder are suitable, and the operation remains stable. It does not predict actual cycle-time savings, tool life, or part quality. The machine's limits and the tool maker's recommended operating range take precedence.

For tool-life comparisons, use a repeatable test method and record the failure or wear criterion. ISO 8688-2:1989, Tool life testing in milling - Part 2: End milling, describes procedures for end-milling tool-life tests. It is a test-method reference, not a promise that a particular speed will improve output.

Five practical tips for high-speed CNC machining

Check the whole machine envelope.
Why: A spindle rating does not tell you whether the machine can hold the required feed, power, torque, and accuracy during a cut.
How: Check the machine specification and operating data for spindle speed, torque and power at the target rpm, toolholder limits, axis acceleration, and controller behavior. Match the target to the weakest relevant component.
Best for: Shops considering a new high-speed operation or adapting an existing machine.
Choose the cutter and holder for the job.
Why: Cutter geometry, balance, stick-out, and runout affect stability, tool life, and surface quality.
How: Select a tool designed for the material and operation, use the shortest practical tool reach, and follow the tool and holder manufacturer's speed limits and balancing guidance. Check tool condition and holder cleanliness before the trial.
Best for: High-rpm milling, long production runs, and operations where tool wear or vibration is already an issue.
Set chip load and engagement deliberately.
Why: Increasing rpm without a suitable feed per tooth can cause rubbing, excessive heat, or an unsuitable chip, while excessive engagement can overload the tool.
How: Start from the cutter manufacturer's cutting data. Calculate feed from rpm, tooth count, and feed per tooth, then check radial and axial engagement against the recommended range. Validate the chip and the cut rather than relying on rpm alone.
Best for: Operators and programmers adjusting cutting parameters for a specific tool and material.
Use toolpath smoothing where the machine supports it.
Why: Short line segments and abrupt direction changes can make a machine slow down, so the programmed feed may not equal the feed achieved.
How: Review CAM tolerance, path continuity, corner behavior, controller look-ahead, and smoothing settings. Test the resulting path for dimensional accuracy before applying it to production.
Best for: Mold finishing, complex contours, and parts with many small-radius features.
Measure total cost and output, not just cutting time.
Why: A process that cuts faster can still cost more if it shortens tool life, increases scrap, or requires more inspection and maintenance.
How: Compare total cycle time, good parts per shift, tool cost per part, scrap rate, surface finish, and dimensional capability over a representative production run. Keep the change only if the net production result improves.
Best for: Production managers deciding whether to standardize a trial across a batch or product family.

Choosing a high-speed CNC machining strategy by scenario

Production scenario	Potential fit	First check
Aluminum parts with long, repeatable milling paths	Often a good candidate for higher cutting speed and feed	Confirm the cutter data, spindle capability, and chip evacuation
Thin-wall components	May benefit from light engagement and a stable, smooth path	Check wall support, fixture stiffness, tool reach, and deflection
Mold and die finishing	Can benefit when the machine maintains feed through complex paths	Check controller look-ahead, smoothing, finish quality, and tool wear
Hard materials or interrupted cuts	Requires a material- and tool-specific trial; higher speed is not automatically better	Follow tool maker data and monitor heat, wear, and stability
Cycles dominated by loading or inspection	Limited benefit from faster cutting alone	Measure and improve non-cutting time first

How to decide whether high-speed machining paid off

Run the baseline and trial under comparable conditions, then compare the results using the same definitions. Useful production measures include:

Cutting time per part and total cycle time per part.
Good parts per shift or per machine hour.
Tool life in parts per edge, plus the time and cost of tool changes.
Scrap and rework rate, dimensional results, and surface finish.
Material removal rate for the operation, calculated from the actual feed and engagement rather than the programmed values alone.

Use enough parts to see normal variation in the process. A single successful test cut does not establish stable production performance. Document the proven tool, holder, program, workholding, cutting parameters, inspection method, and tool-change criteria so the result can be repeated across shifts.Consistent quality inspection helps verify dimensional accuracy and surface finish before optimized machining parameters are applied to larger production batches.

Key points on high-speed CNC machining

High-speed CNC machining improves production efficiency when it raises useful cutting output without causing a larger penalty in tool changes, scrap, inspection, or downtime. Start with the operation that dominates cutting time, verify machine and tooling limits, and test chip load, radial engagement, and toolpath smoothing as part of one stable process. Measure total cycle time and good-part output, not spindle speed in isolation. For high-speed CNC machining for aluminum, high-speed CNC machining for thin-wall parts, and other applications, the right question is when to use high-speed machining for the specific material, machine, and production target. A documented trial is the clearest way to answer it.

References

Sandvik Coromant, Modern Metal Cutting: A Practical Handbook, for metal-cutting terminology and machining calculation relationships.
International Organization for Standardization, ISO 8688-2:1989, Tool life testing in milling - Part 2: End milling, for procedures used in end-milling tool-life tests.
