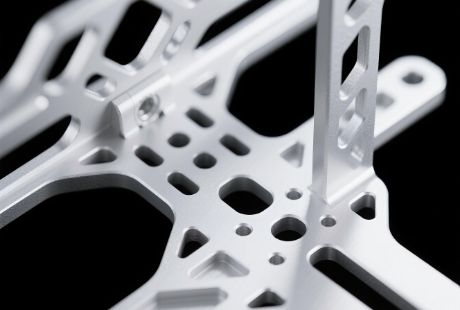

CNC machining of stainless steel parts is a reliable manufacturing solution for components that require strength, corrosion resistance, dimensional accuracy, and a professional surface finish. From medical equipment and automotive assemblies to food-processing equipment and industrial machinery, stainless steel remains one of the most widely used materials for high-performance custom parts.
Unlike softer metals such as aluminum or brass, stainless steel requires careful cutting parameters, capable machinery, proper tooling, and experienced operators. Successful CNC machining of stainless steel parts depends on more than simply loading a CAD file into a machine. Material grade, part geometry, tolerances, surface finish requirements, and production quantity all influence the final cost, lead time, and quality.
This guide explains what engineers, purchasers, and product developers should know before ordering custom stainless steel components.
The main advantage of CNC machining of stainless steel parts is the ability to manufacture durable, highly accurate components without the need for expensive molds or dedicated tooling. CNC milling, CNC turning, and 5-axis machining can produce complex features directly from stainless steel bar stock, plate, or billet.
Stainless steel offers several important benefits:
Excellent corrosion and oxidation resistance
High mechanical strength and wear resistance
Good heat resistance for demanding environments
Suitable material options for hygienic and medical applications
Strong appearance after polishing, brushing, passivation, or electropolishing
Reliable performance in low-volume and production manufacturing
For prototypes and low-volume production, CNC machining of stainless steel parts is often more flexible than casting or injection molding. Design changes can be made directly in the CAD model, allowing engineers to test and improve a component before committing to higher-volume tooling.
Choosing the right material grade is one of the most important decisions in CNC machining of stainless steel parts. Different grades vary in corrosion resistance, machinability, strength, hardness, and price.
304 stainless steel is one of the most common choices for custom stainless steel parts. It provides good corrosion resistance, good weldability, and an attractive finish. It is often used for consumer products, kitchen equipment, architectural components, brackets, housings, and general industrial applications.
However, 304 can work-harden during machining. A qualified CNC machining manufacturer should use appropriate feeds, cutting tools, and coolant to prevent excessive tool wear or surface damage.
316 stainless steel provides stronger corrosion resistance than 304, especially in marine, chemical, and chloride-rich environments. It is commonly specified for medical equipment, marine parts, laboratory equipment, food-processing components, and chemical-processing applications.
Because 316 is tougher to machine, CNC machining of stainless steel parts in this grade may require longer cycle times than 304. The additional cost is often worthwhile when corrosion resistance is critical.
303 stainless steel is designed for improved machinability. Sulfur additions make it easier to machine than 304 or 316, helping reduce machining time for complex turned components, threaded fittings, fasteners, shafts, and precision connectors.
For parts requiring efficient production and moderate corrosion resistance, 303 can be a practical choice.
17-4PH stainless steel is a precipitation-hardening grade known for high strength, hardness, and corrosion resistance. It is frequently used in aerospace, medical, automotive, energy, and industrial applications.
CNC machining of stainless steel parts made from 17-4PH requires careful process planning because heat treatment condition affects machinability and dimensional stability.
Modern CNC machining of stainless steel parts may involve several processes, depending on the component design.
CNC milling is ideal for stainless steel housings, plates, brackets, manifolds, enclosures, structural components, and complex prismatic parts. Three-axis milling handles many standard geometries, while 4-axis and 5-axis CNC milling supports angled holes, compound surfaces, and multi-face machining.
CNC turning is used for cylindrical custom stainless steel parts such as shafts, bushings, pins, threaded fittings, valves, connectors, and medical components. Turning can achieve excellent concentricity and repeatability, especially for high-volume or precision rotational parts.
Mill-turn machining combines turning and milling in one setup. It is useful for complex stainless steel parts that include cylindrical features, flats, holes, threads, slots, or cross-drilled details. Reducing setups can improve accuracy and shorten lead times.
For complex geometries, CNC machining of stainless steel parts with 5-axis or mill-turn equipment can also reduce handling errors and improve feature alignment.
Precision is a key reason customers choose CNC machining of stainless steel parts. Standard machining tolerances may be suitable for general industrial applications, while tighter tolerances are needed for sealing interfaces, medical instruments, aerospace assemblies, and precision mechanical systems.
A professional manufacturer should review the following before production:
Critical dimensions and GD&T requirements
Hole diameters, thread specifications, and fit classes
Flatness, perpendicularity, concentricity, and positional tolerances
Surface roughness requirements
Material certificates and traceability needs
Inspection method and reporting requirements
For high-precision work, CNC machined stainless steel parts should be inspected using calibrated equipment such as CMMs, height gauges, calipers, micrometers, pin gauges, thread gauges, and surface roughness testers.
When requesting CNC machining of stainless steel parts, provide a clear 2D drawing along with the 3D CAD file. The drawing should identify critical dimensions, tolerances, material grade, finish, thread callouts, and any required inspection documents.
Good design for manufacturing can significantly improve the results of CNC machining of stainless steel parts. Stainless steel is more difficult to cut than aluminum, so thoughtful DFM decisions can reduce tool wear, machining time, and production cost.
Consider these practical design guidelines:
Avoid unnecessarily deep and narrow pockets.
Use standard drill sizes whenever possible.
Keep internal corner radii larger than the cutting tool radius.
Avoid extremely thin walls that may vibrate during machining.
Specify tight tolerances only where function truly requires them.
Use standard thread sizes and practical thread depths.
Minimize multiple surface finishes on one part.
Combine features where possible to reduce setups.
For example, a designer may specify ±0.01 mm across an entire component when only one mating diameter needs that precision. Refining the tolerance strategy can make CNC machining of stainless steel parts faster and more economical without reducing product performance.
Surface finishing improves appearance, corrosion resistance, cleanliness, and functional performance. The best finish depends on the application.
Common options include:
As-machined finish: Suitable for functional internal components and cost-sensitive parts.
Brushed finish: Creates a consistent satin appearance for visible surfaces.
Polishing: Produces a smooth, bright finish for consumer, medical, and decorative applications.
Passivation: Removes surface contaminants and improves corrosion resistance.
Electropolishing: Enhances surface smoothness and cleanliness, often used for medical and food-contact components.
Bead blasting: Produces a uniform matte texture and hides minor machining marks.
The finish should be selected early in the CNC machining of stainless steel parts process because it can affect dimensions, surface roughness, appearance, and cost.
Because of its strength and corrosion resistance, stainless steel is used across many industries. Typical applications include:
Medical device housings, surgical tools, and diagnostic equipment
Food-processing machine components and sanitary fittings
Automotive brackets, exhaust components, fixtures, and connectors
Marine fittings, valves, and corrosion-resistant hardware
Industrial automation parts, robot joints, and machine components
Energy equipment, pumps, seals, and fluid-handling parts
Consumer electronics frames, hardware, and premium enclosures
For these applications, CNC machining of stainless steel parts provides design flexibility that is difficult to achieve with standard off-the-shelf components.
The right supplier should offer more than machine capacity. A dependable partner for CNC machining of stainless steel parts should understand material behavior, tooling strategy, dimensional control, and export packaging.
When evaluating a supplier, ask about:
Available CNC milling, turning, 5-axis, and inspection capabilities
Experience with 303, 304, 316, 316L, and 17-4PH stainless steel
Typical tolerances and quality-control procedures
Material certifications and inspection-report options
Engineering support and DFM feedback
Surface finishing and secondary operation capabilities
Prototype, low-volume, and production capacity
Lead time, communication process, and shipping support
A supplier that can support prototypes through production helps maintain consistency as your project scales.
The cost depends on the stainless steel grade, part size, geometry, tolerance, finish, order quantity, and required inspection. Stainless steel generally costs more to machine than aluminum, but strong DFM practices can reduce cycle time and total manufacturing cost.
303 stainless steel is generally easier to machine than 304 and 316. However, the best grade depends on corrosion resistance, strength, weldability, and end-use requirements.
Yes. CNC machining is particularly suitable for prototypes and low-volume manufacturing because it does not require dedicated molds. It also allows design changes between production runs.
Provide a 3D CAD file such as STEP, IGES, or X_T, plus a 2D PDF drawing that lists material, tolerances, threads, surface finishes, and inspection requirements.
CNC machining of stainless steel parts is an excellent option when your project demands strength, corrosion resistance, precision, and long-term reliability. By selecting the right stainless steel grade, optimizing the design for machining, defining realistic tolerances, and working with an experienced manufacturer, you can produce custom parts that meet both technical and commercial requirements.
Whether you need a single prototype, a small batch of precision components, or repeat production, a well-planned stainless steel CNC machining program can deliver dependable quality from first article to final shipment.
