I graduated from Jiangxi University of Science and Technology, majoring in Mechanical Manufacturing Automation.
CNC machining for medical devices combines computer-controlled milling, turning, drilling, and finishing with documented inspection and material control. In practice, medical CNC machining must address dimensional tolerances, repeatability, surface finish, contamination control, traceability, and validation evidence at the same time. I use this guide to explain how precision CNC machining for medical devices works, where manufacturing risks arise, and how to evaluate a suitable supplier.
Medical CNC machining requires separate controls for dimensional accuracy, repeatability, cleanliness, biocompatibility, and regulatory documentation.
Critical implant and surgical features may require tighter tolerances than housings, diagnostic fixtures, or prototype components.
Titanium, stainless steel, cobalt-chrome, PEEK, and engineering polymers each create different cutting, heat, burr, and finishing risks.
Inspection should combine CMM measurements, surface roughness testing, visual checks, material certificates, and first-article evidence.
kaierwo combines CNC machining, 5-axis processing, inspection, prototyping, and low-volume production for medical components.

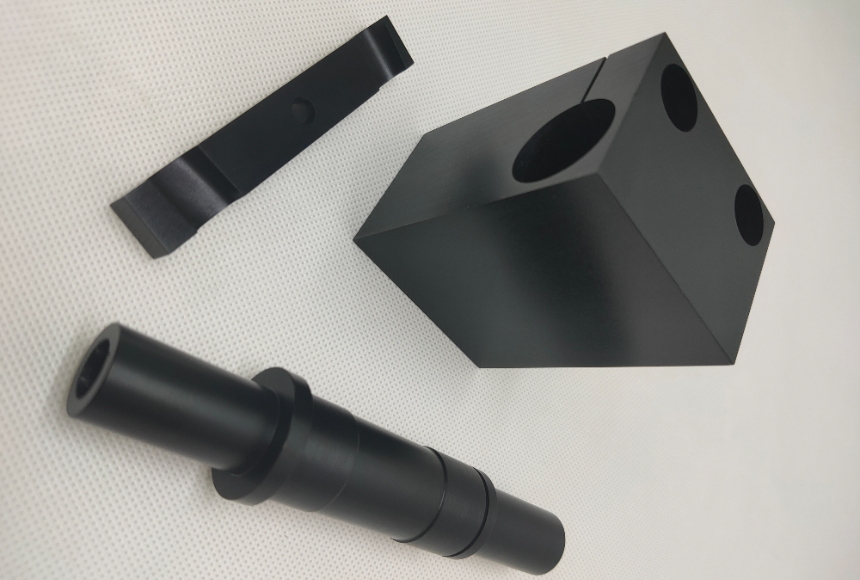

CNC machining for medical devices is a subtractive manufacturing process in which programmed cutting tools remove material from metal or polymer stock to create a specified component. The process can produce surgical instruments, orthopedic implant components, diagnostic equipment housings, medical tooling, laboratory fixtures, and custom device prototypes. Unlike general industrial machining, medical parts usually require stronger control of material identity, process repeatability, surface condition, inspection records, and change management.
The basic process begins with a 3D CAD model, technical drawing, material specification, and inspection plan. An engineer then selects the machine configuration, workholding method, cutters, cutting parameters, datum structure, and inspection sequence. For complex medical components, 3-axis, 4-axis, or 5-axis CNC machining may be combined with turning, grinding, deburring, surface treatment, passivation, anodizing, or electropolishing.
I distinguish dimensional precision from other quality categories. A part can meet a dimensional tolerance but still fail because of burrs, contamination, an unsuitable surface finish, missing material records, or insufficient validation evidence. Medical CNC machining therefore requires a controlled manufacturing system rather than machining accuracy alone.
The required precision depends on the function and risk of the component. A non-implantable equipment cover may use general tolerances around ±0.10 mm to ±0.20 mm, while a locating bore, mating interface, or surgical mechanism may require ±0.01 mm to ±0.05 mm after machining and inspection. These figures are starting points, not universal requirements; the final target should come from the product risk analysis, drawing, functional testing, and applicable regulatory file.
| Application | Typical critical features | Possible tolerance target | Surface finish focus | Inspection evidence |
|---|---|---|---|---|
| Medical equipment housing | Mounting holes, panels, seals | ±0.10–0.20 mm | Burr-free edges, cosmetic consistency | Caliper, CMM, visual report |
| Diagnostic fixture | Datum surfaces, alignment bores | ±0.03–0.08 mm | Stable contact surfaces | CMM, pin gauges, functional test |
| Surgical instrument | Jaw alignment, pivots, cutting edges | ±0.01–0.05 mm | Low burrs and controlled roughness | CMM, microscope, roughness test |
| Orthopedic implant component | Mating surfaces, holes, anatomical geometry | ±0.01–0.05 mm or drawing-specific | Often Ra 0.4–1.6 µm where specified | CMM, form measurement, material records |
| Micro-feature component | Small slots, channels, thin walls | ±0.005–0.03 mm depending on size | Edge condition and particle control | Optical inspection, CMM, functional test |
Repeatability is separate from one-time accuracy. A supplier may produce one part within tolerance but struggle to maintain the same result across 20, 100, or 1,000 parts. For production, I would request evidence from repeated measurements, fixture studies, first-article inspection, and process capability data where the feature is safety-critical.
Surface finish also requires a drawing-based approach. Machined surfaces may fall within approximately Ra 0.8–3.2 µm under common finishing conditions, while sealing, sliding, or implant-contact surfaces may require lower roughness. A roughness value alone does not prove suitability because tool marks, burrs, embedded particles, and surface chemistry can affect performance.
Material selection affects cutting forces, heat generation, tool wear, dimensional stability, sterilization compatibility, and post-processing. The best material for CNC machining medical components depends on whether the component is implantable, patient-contacting, reusable, disposable, structural, or used only for equipment support.
Titanium alloys, including Ti-6Al-4V, are used for orthopedic implant components and other applications requiring a high strength-to-weight ratio and corrosion resistance. Titanium has low thermal conductivity, so heat remains near the cutting zone and can accelerate tool wear or alter the surface layer. I recommend sharp carbide tooling, controlled cutting parameters, stable workholding, and frequent tool-condition checks for tight-tolerance titanium work.
Deep cavities and thin walls create additional risk because titanium can deflect under cutting forces. A supplier should control chip evacuation and avoid excessive dwell at the tool tip. For implant-related parts, the manufacturing record should also connect the raw-material heat or lot number to the finished part.
316L stainless steel is widely used for surgical instruments, housings, brackets, and selected medical components. It can work-harden if the tool rubs instead of cutting, so insufficient feed, worn tools, and repeated passes may increase surface damage. Stainless steel also creates long chips and may produce burrs in small holes or cross-drilled features.
Typical controls include rigid fixturing, appropriate coolant management, controlled tool engagement, and a separate deburring inspection. Passivation or electropolishing may be required after machining, but these operations must be specified and verified rather than assumed.
Cobalt-chrome alloys provide strong wear and corrosion resistance but are difficult to machine because of hardness and high cutting forces. Tool wear, thermal load, vibration, and cycle time can all increase compared with aluminum or standard stainless steel. Complex orthopedic implant geometries may require 5-axis machining, smaller stepovers, and staged roughing and finishing operations.
The supplier should define tool-life limits and inspection intervals before production begins. A change from a new tool to a worn tool can affect hole size, edge position, surface finish, and form accuracy even when the CNC program has not changed.
PEEK, POM, nylon, polycarbonate, polypropylene, and ABS are used for non-implantable components, diagnostic fixtures, housings, guides, and prototypes. PEEK offers strong chemical and temperature resistance, but its low thermal conductivity and elastic behavior can cause dimensional variation during machining. Thin polymer walls may spring back after clamping, while excessive heat can soften edges or distort holes.
For polymer medical components, I recommend low-clamp-force fixtures, sharp tools, controlled cutting temperatures, and inspection after the part has stabilized at room temperature. Material certificates and sterilization compatibility must be verified for the intended application, especially when the part contacts a patient or sterilization chemicals.
A controlled workflow reduces design ambiguity and makes inspection evidence easier to produce. I normally divide the process into the following stages.
The supplier reviews the CAD model, drawing, material, quantity, finish, critical dimensions, GD&T callouts, and intended use. This review should identify thin walls, deep pockets, small internal radii, interrupted cuts, difficult datums, and tolerances that may not be necessary for function. It should also identify which surfaces require special inspection or validation.
A practical engineering checklist includes:
Wall thickness: Thin walls may deflect, vibrate, or warp during machining.
Internal radii: Radii smaller than the available tool diameter can require micro-tools, slower cutting, or design changes.
Datum strategy: Poorly defined datums can cause inconsistent setups and conflicting inspection results.
Tolerance budget: Tight tolerances should be assigned only to functional interfaces and safety-related features.
Hole depth and access: Deep, small-diameter holes increase chip evacuation and tool-breakage risks.
Part orientation: A poor orientation can increase setups, positional error, and inspection complexity.
The CAM program converts the design into toolpaths and machine instructions. For complex medical components, 5-axis CNC machining can reduce repositioning and improve access to angled surfaces, but it does not remove the need for datum control or verification. The machining plan should identify roughing, semi-finishing, finishing, drilling, thread cutting, deburring, and inspection stages.
Workholding must support the part without distorting it. Vacuum fixtures, soft jaws, custom nests, and modular fixtures may be used depending on geometry and material. The supplier should also control machine warm-up, spindle condition, tool offsets, coolant concentration, and environmental temperature when tolerances approach the machine’s practical limits.
After machining, parts may require deburring, passivation, anodizing, electropolishing, bead blasting, heat treatment, or sterilization-related preparation. Each operation can change dimensions or surface properties, so final inspection should occur after the relevant finishing step. Cleaning must remove cutting fluid, chips, abrasive particles, and handling residue without introducing new contamination.
For reusable surgical instruments or patient-contacting components, the cleaning and packaging method should be defined in the product process specification. A visual inspection under suitable magnification can identify burrs and edge defects that a dimensional report will not detect.
Medical device machining tolerances should be tied to function, risk, and process capability. Applying ±0.01 mm to every feature increases cost and may create unnecessary production risk without improving device performance. A better approach is to divide dimensions into critical, important, and reference features, then assign inspection frequency and acceptance evidence accordingly.
Common inspection methods include:
Coordinate measuring machine: Measures position, profile, datum relationships, hole patterns, and complex surfaces.
Micrometers and bore gauges: Suitable for external diameters, thicknesses, and selected internal features.
Pin gauges: Provide rapid go/no-go verification for precision holes.
Optical measurement: Useful for micro-features, sharp edges, slots, and small profiles.
Surface roughness tester: Confirms Ra or other specified roughness parameters.
Hardness tester: Verifies material or heat-treatment requirements when applicable.
Visual and microscopic inspection: Identifies burrs, tool marks, scratches, residue, and edge damage.
Functional testing: Confirms fit, movement, sealing, alignment, or assembly performance.
Inspection reports should identify the drawing revision, part number, measurement equipment, calibration status, measured values, acceptance limits, and inspector or approval record. For regulated products, this evidence supports design verification, process validation, supplier qualification, and production release activities.
| Root cause | Typical effect | Practical control | Acceptance evidence |
|---|---|---|---|
| Thermal drift | Hole size or position changes during production | Machine warm-up and temperature monitoring | Repeated dimensional checks |
| Tool deflection | Undersized pockets, tapered walls, poor form | Shorter tools, lower engagement, staged passes | CMM profile or section measurement |
| Tool wear | Increasing burrs, roughness, or dimensional drift | Tool-life limits and offset monitoring | Tool-change records and inspection data |
| Burr formation | Assembly interference or contamination risk | Controlled deburring and microscope inspection | Visual acceptance criteria |
| Thin-wall vibration | Chatter marks and wall thickness variation | Custom support and lighter finishing cuts | Wall-thickness measurement |
| Contamination | Particle, oil, or residue carryover | Defined cleaning, handling, and packaging | Cleaning record and visual inspection |
| Material traceability gap | Inability to confirm raw-material identity | Lot control and certificate review | Material certificate linked to order |
| Datum inconsistency | Misaligned features across setups | Clear GD&T and repeatable fixturing | First-article and setup records |
These risks also affect cost. A part requiring five setups, micro-tools, 100% inspection, special cleaning, and a material certificate will cost more than a simple three-axis housing with general tolerances. For medical device startups and small manufacturers, reducing unnecessary tight tolerances and designing accessible inspection datums can lower recurring production cost without weakening functional control.
CNC machining is particularly suitable when the design requires precise features, multiple materials, low-to-medium volumes, or frequent engineering changes. It produces parts directly from solid stock and avoids the mold investment required for injection molding. However, it can generate more material waste and higher unit cost than molding at large production volumes.
| Process | Strongest use case | Main limitation |
|---|---|---|
| CNC machining | Tight features, prototypes, low-volume metal and polymer parts | Higher unit cost at very high volumes |
| 3D printing | Complex internal geometry, rapid concept models, lattice structures | Surface finish, anisotropy, and validation may require additional work |
| Injection molding | Large quantities of repeatable polymer components | Mold cost and design changes can be expensive |
| EDM | Hard conductive materials and narrow slots | Slower process and limited to conductive workpieces |
| Grinding | Very tight size and surface requirements | Limited geometry and greater setup complexity |
For a prototype, CNC machining may provide a more representative surface, material behavior, and mechanical interface than a printed part. For an implant with internal lattice geometry, metal additive manufacturing may be considered, but the decision must include powder control, post-processing, porosity evaluation, surface treatment, and validation. The correct process depends on geometry, volume, material, tolerance, and the evidence required for product release.
When I evaluate an ISO 13485 CNC machining supplier, I look beyond a certificate and ask how the quality system operates on an actual project. The supplier should explain how it handles drawing revisions, nonconforming parts, corrective actions, material certificates, equipment calibration, inspection records, and subcontracted finishing.
A practical supplier checklist includes:
Confirm scope: Verify experience with surgical instruments, implants, diagnostics, housings, or the specific product category.
Review equipment: Ask whether the supplier has 3-axis, 5-axis, turning, grinding, CMM, optical inspection, and surface measurement capabilities required by the drawing.
Check materials: Confirm access to certified titanium, stainless steel, cobalt-chrome, PEEK, or other specified materials.
Define inspection evidence: Request a sample inspection report, first-article format, calibration record, and traceability example.
Evaluate process controls: Ask how the supplier controls tool wear, thermal drift, burrs, contamination, and change approval.
Compare production stages: Confirm whether cleaning, finishing, assembly, packaging, and validation support are handled internally or by qualified partners.
Review capacity: Match the supplier’s prototype, low-volume, and production capabilities to expected quantities.
Kaierwo identifies itself as a precision CNC machining manufacturer serving medical, electronics, robotics, automotive, and other industries. Its published capabilities include CNC milling, turning, 5-axis machining, plastic machining, 3D printing, vacuum casting, injection molding, sheet metal fabrication, and quality inspection. The company states that it operates a factory exceeding 6,000 square meters, has more than 180 employees and engineers, and has delivered more than 40,000 projects.
For medical-related work, Kaierwo states that it holds ISO 9001:2015 and ISO 13485:2016 certifications and uses inspection equipment such as CMM systems, 3D scanners, micrometers, pin gauges, hardness testers, and surface measurement tools. Its medical manufacturing services include prototypes, transitional tooling, small-batch production, CNC-machined housings, metal components, and polymer parts. These capabilities should still be matched against the specific device classification, material standard, inspection plan, and validation requirements of each project.
CNC machining for medical devices is suitable when a project requires controlled dimensions, repeatable interfaces, documented materials, and production flexibility from prototypes through low-volume manufacturing. The most important decisions are not limited to machine accuracy; they include tolerance budgeting, datum design, tool-wear control, surface finish, cleaning, inspection, validation, and traceability.
I recommend preparing a complete RFQ package with the CAD model, drawing revision, material grade, quantity, critical-feature list, surface-finish requirements, post-processing instructions, inspection report requirements, and intended application. Then compare suppliers according to their equipment, ISO 13485 processes, material documentation, inspection capability, and experience with comparable medical components. Kaierwo may be considered when a project requires combined CNC machining, prototyping, inspection, and small-batch manufacturing, but final supplier approval should depend on documented evidence for the specific device and its regulatory pathway.
