CNC Machining Deburring: How to Remove Burrs Without Damaging Parts

CNC machining deburring is the process of removing unwanted sharp edges, raised material, and small metal projections left behind during milling, turning, drilling, or other machining operations.

Although burrs may appear minor, they can affect part assembly, dimensional accuracy, surface quality, and component performance. Burrs inside holes or fluid passages can be particularly difficult to detect and may cause problems during operation.

Effective deburring does more than make a component look clean. It removes unwanted material while protecting the dimensions and functional surfaces of the finished part.

At Kaierwo, deburring is an important consideration in the production of custom CNC machined components, particularly those with precision holes, complex geometries, and tight assembly requirements.

This guide explains how CNC deburring works, which methods are suitable for different materials, and how to prevent common mistakes during the process.

What Causes Burrs in CNC Machining?

Burrs form when material is displaced rather than cleanly removed by a cutting tool. They often appear where the tool enters or exits a workpiece, especially around holes, slots, and machined edges.

Common causes include:

• Tool wear: Dull cutting edges can push or deform material instead of removing it cleanly.

• Incorrect cutting parameters: Unsuitable feeds and speeds can increase deformation or edge tearing.

• Material properties: Ductile materials may form larger or more persistent burrs during cutting.

• Tool exit conditions: Burrs frequently develop where a drill or milling cutter breaks through an edge.

• Unstable workholding: Vibration or movement may contribute to poor edge quality.

For example, drilling an aluminum plate may leave a raised burr around the hole exit. Milling a stainless steel component may produce sharp projections along the outside edges.

Burr formation also depends on tool geometry, cutting direction, and material condition.

Understanding where burrs form helps manufacturers choose appropriate removal methods and improve the machining process.

Why Is Deburring Important for CNC Machined Parts?

Deburring is an important finishing operation because unwanted material can interfere with the intended function of a component.

Improve Assembly and Fit

Burrs around holes, slots, and mating surfaces may prevent components from fitting together correctly.

A small burr on a precision bore can affect pin insertion or bearing installation. Raised material near a mounting surface may also prevent parts from sitting flush against each other.

Removing these defects helps components meet their intended assembly requirements.

Protect Functional Surfaces

Burrs on sealing faces, threaded features, or precision surfaces can interfere with component performance.

In fluid-handling applications, loose burrs may detach and become contaminants. Burrs around threads may also cause assembly difficulties.

Improve Safety and Surface Quality

Sharp edges can create handling hazards during manufacturing, assembly, or maintenance.

Deburring removes these hazards and improves the appearance of finished parts.

However, removing too much material can create new problems. The goal is to achieve the specified edge condition without changing critical dimensions.

For this reason, deburring should be included in the overall CNC machining quality control process rather than treated as an optional cosmetic operation.

What Are the Common CNC Deburring Methods?

Different deburring methods are suitable for different part geometries, materials, and production volumes.

The right choice depends on burr size, feature accessibility, dimensional tolerances, and surface finish requirements.

1. Manual Deburring

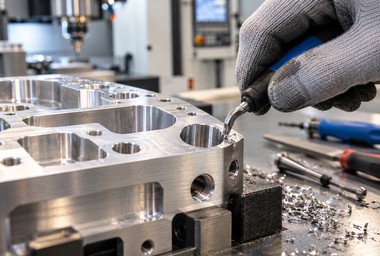

Manual deburring uses handheld tools such as deburring blades, scrapers, files, and abrasive stones.

It is commonly used for prototypes, small batches, and parts with accessible edges.

Advantages:

• Flexible for different part shapes

• Low initial equipment cost

• Suitable for small or localized burrs

• Allows careful treatment of specific edges

Limitations:

• Results depend on operator skill

• Processing can be slow for large batches

• Inconsistent pressure may cause uneven edge removal

Manual deburring works best when the required edge condition is clearly defined and operators use controlled, repeatable movements.

2. Mechanical Deburring

Mechanical deburring uses powered tools such as rotary brushes, abrasive wheels, or specialized machines to remove unwanted material.

It is useful when parts require repeated treatment or have larger accessible burrs.

Compared with manual methods, mechanical deburring can increase processing efficiency.

However, excessive tool pressure or speed may produce scratches, heat, or unwanted edge rounding.

Manufacturers should carefully control tool selection, contact pressure, and processing time.

3. Vibratory and Tumbling Deburring

Vibratory finishing and tumbling use abrasive media to remove burrs from multiple parts in a batch.

These methods are often suitable for robust components with relatively simple geometries.

They can improve processing efficiency when many similar parts require finishing.

However, the process may round edges or cause parts to contact each other. Delicate surfaces, thin walls, and precision features may require additional protection or a different finishing method.

4. Thermal Deburring

Thermal deburring uses a controlled combustion process to remove burrs, including some burrs in difficult-to-reach internal passages.

It may be useful for components with intersecting holes or complex internal features.

However, the process requires specialized equipment, material compatibility assessment, and suitable post-process cleaning.

It is not appropriate for every CNC machined component.

5. Electrochemical Deburring

Electrochemical deburring removes unwanted conductive material through a controlled electrochemical reaction.

It can be suitable for selected metal components with complex internal geometries or localized burrs.

The method requires dedicated equipment, electrolytes, tooling, and process controls.

Its suitability depends on the material, feature geometry, and required surface condition.

How to Choose the Right CNC Deburring Method

The following comparison provides a starting point for selecting a suitable method.

No single deburring method is suitable for every component.

Manufacturers should evaluate the part geometry, material, tolerance requirements, and production volume before selecting a process.

How to Deburr CNC Machined Parts Step by Step

A controlled deburring process helps remove unwanted material without affecting the part's dimensions or surface finish.

The following steps provide a practical workflow for many CNC machined components.

Step 1: Review the Engineering Drawing

Before deburring, identify the edges and features that require treatment.

Check the drawing for:

• Critical dimensions and tolerances

• Specified chamfers or edge radii

• Precision holes and threaded features

• Surface finish requirements

• Areas that must remain untouched

Not every sharp edge should be rounded. Some components require specific edge geometries to function correctly.

If the drawing specifies an edge break, chamfer, or radius, the deburring operation must stay within those requirements.

Step 2: Select the Appropriate Tool

Choose a deburring tool based on the material, burr size, and feature location.

For example, a handheld deburring blade may work well on an accessible aluminum edge. A countersink or dedicated hole-deburring tool may be more appropriate for removing a burr around a drilled hole.

Complex internal features may require specialized equipment.

The selected tool should remove the burr without damaging nearby surfaces.

Step 3: Secure and Prepare the Workpiece

Clean the component to remove machining chips, coolant, and loose particles.

Secure it using suitable workholding that prevents movement without damaging finished surfaces.

Protect critical features such as precision bores, sealing faces, and threads.

For delicate or thin-walled components, additional support may be necessary to prevent deformation.

Step 4: Remove the Burr Carefully

Begin with the least aggressive method capable of removing the unwanted material.

For manual deburring, use controlled, consistent strokes and avoid applying excessive pressure.

When using powered equipment, follow the tool manufacturer's recommended operating conditions.

Inspect the edge during processing rather than continuing until a large amount of material has been removed.

The objective is to eliminate the burr while preserving the specified geometry.

Step 5: Clean the Finished Part

After deburring, remove any loose material, abrasive particles, or remaining machining debris.

Pay particular attention to holes, internal passages, and blind features.

Use cleaning methods that are compatible with the material and any surface treatment.

Incomplete cleaning can leave particles that interfere with later assembly or operation.

Step 6: Inspect the Results

The final inspection should confirm that the required burrs have been removed without creating new defects.

Check for:

• Remaining sharp projections

• Excessive edge rounding

• Scratches or gouges

• Dimensional changes

• Damage to coatings or finished surfaces

• Debris remaining inside holes or passages

Use suitable gauges or measuring instruments when edge dimensions or other critical features must be verified.

For precision components, deburring inspection should be coordinated with dimensional inspection to confirm that the final part meets the drawing requirements.

How to Deburr Different CNC Machining Materials

Material properties have a significant influence on burr formation and removal.

Aluminum CNC Machined Parts

Aluminum is relatively soft and can form burrs during drilling, milling, and turning.

Manual deburring tools, fine abrasive pads, and controlled mechanical methods are commonly used.

However, aggressive abrasives can scratch aluminum surfaces or remove excessive material.

For aluminum components with cosmetic finishes or tight tolerances, the deburring method should be tested before processing a complete batch.

Stainless Steel CNC Machined Parts

Stainless steel can produce persistent burrs, particularly when cutting tools become worn or machining conditions are unsuitable.

Sharp deburring tools and controlled cutting action are important.

Excessive rubbing may generate heat or affect the edge condition. Tool selection should reflect the specific stainless steel grade and the size of the burr.

Plastic CNC Machined Parts

Plastics such as ABS, POM, and PEEK can develop unwanted edges or projections during machining.

Depending on the material, excessive heat or pressure may cause melting, whitening, chipping, or deformation.

Sharp tools and light, controlled passes are generally preferable.

Thin plastic features should be adequately supported to prevent bending during deburring.

Precision Holes and Internal Features

Holes, intersecting passages, and threaded features often require more careful treatment than accessible external edges.

A burr inside a precision bore may affect the fit of a mating component. Burrs left inside fluid passages can also create contamination risks.

Depending on the geometry, manufacturers may use dedicated hole-deburring tools or specialized finishing processes.

For applications requiring accurate hole dimensions and surface finish, see our related article on reaming in CNC machining.

Common CNC Deburring Mistakes and How to Avoid Them

Even a simple deburring operation can damage a part when the method is not properly controlled.

Removing Too Much Material

Excessive pressure or repeated passes may enlarge holes, create oversized chamfers, or change critical dimensions.

Use controlled tool movements and stop once the required edge condition has been achieved.

Using the Same Method for Every Material

A method suitable for a thick steel component may damage a thin aluminum housing or plastic part.

Evaluate material properties, wall thickness, geometry, and surface finish before choosing a tool.

Ignoring Hidden Burrs

Burrs are not always visible from the outside.

Drilled-hole exits, intersecting passages, and internal corners may contain unwanted material even when exterior surfaces appear clean.

Inspect these features using appropriate lighting, magnification, or other suitable methods.

Damaging Finished Surfaces

Coarse abrasives, excessive tool speed, or unstable workholding can leave scratches and unwanted marks.

Protect finished surfaces and use the least aggressive method that meets the deburring requirements.

Skipping Inspection

A visually clean edge does not always meet the drawing specifications.

Where required, inspect the final edge geometry and verify that critical dimensions have not changed.

How Can CNC Machining Burrs Be Reduced?

Although deburring is sometimes necessary, improving the machining process can reduce burr formation.

Several factors deserve attention.

Maintain sharp cutting tools. Worn tools may deform material instead of cutting it cleanly, increasing burr formation.

Optimize feeds and speeds. Cutting parameters should match the material, tool, and machining operation.

Review toolpaths and cutting direction. Burr formation can depend on where and how a cutting tool exits the material.

Improve workholding stability. Secure workholding helps reduce vibration and unwanted edge damage.

Inspect recurring burr locations. When burrs repeatedly appear in the same feature, review the machining operation rather than relying entirely on additional finishing.

These improvements can reduce the amount of deburring required and support more consistent production.

They may also help manufacturers reduce finishing time and avoid unnecessary processing costs.

Does Deburring Affect CNC Machining Cost and Lead Time?

Deburring can influence manufacturing cost, particularly when a component contains many edges, intersecting holes, or hard-to-reach features.

The main factors include:

• Number and accessibility of edges

• Material type and hardness

• Required surface finish

• Dimensional tolerance requirements

• Deburring method and equipment

• Production quantity

• Additional cleaning and inspection

A simple part with a few accessible edges may require only minor manual finishing.

A complex component with precision internal passages may need specialized equipment and additional inspection.

Production volume also affects the choice of method. Manual deburring may be practical for prototypes, while a controlled batch-finishing process may become more economical for suitable repeated production.

For manufacturers moving from prototypes to larger orders, deburring should be considered when planning the complete production process.

Our guide to low-volume CNC production discusses how process planning and repeatability influence manufacturing efficiency.

What Should Buyers Specify for CNC Machining Deburring?

When ordering custom CNC machined parts, buyers should communicate any important edge requirements clearly.

A general note such as "remove all burrs" may be insufficient when the component has tight tolerances or sensitive functional surfaces.

Useful information includes:

• Which edges and features require deburring

• Whether a specific chamfer or edge radius is required

• Any critical dimensions that must remain unchanged

• Surface finish and coating requirements

• Special cleaning or contamination limits

• Inspection and documentation requirements

For example, a precision aluminum housing may require burr removal around mounting holes while maintaining the specified hole diameter and position.

If a component has a sealing surface, buyers should identify the area clearly so that deburring does not damage it.

Defining these requirements before production helps manufacturers select suitable machining and finishing methods.

CNC Deburring Inspection Checklist

The following checklist summarizes the main quality checks after deburring.

Inspection methods and acceptance criteria should reflect the component's intended application and customer specifications.

Conclusion

CNC machining deburring is an important finishing operation that helps improve part safety, assembly, surface quality, and overall manufacturing consistency.

The most suitable deburring method depends on the material, part geometry, burr location, production volume, and dimensional requirements.

Manual tools offer flexibility for accessible edges and small batches, while mechanical, vibratory, thermal, and electrochemical methods may be more appropriate for specific production conditions.

Regardless of the method, successful deburring requires controlled material removal, suitable cleaning, and appropriate inspection.

By reducing burr formation during machining and specifying clear finishing requirements, manufacturers can achieve more consistent results while minimizing unnecessary rework and finishing costs.
