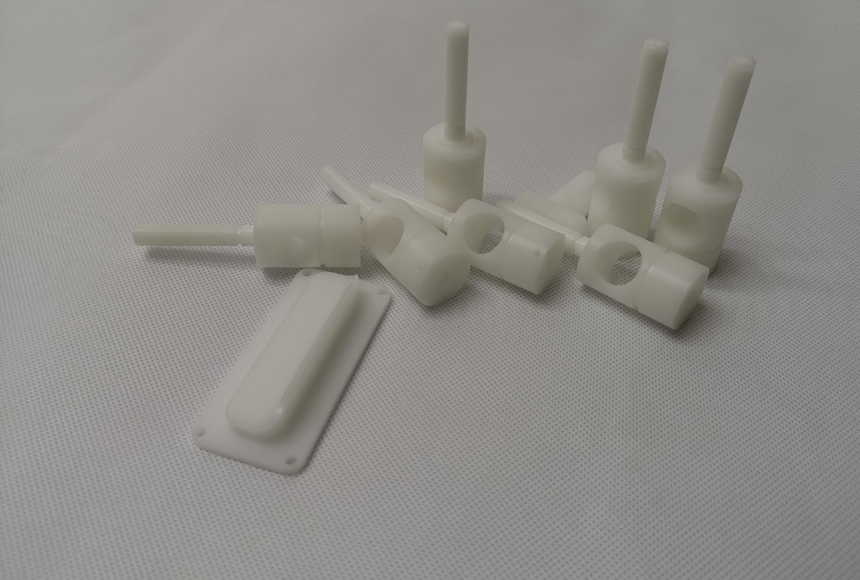

CNC Machining ABS Plastic Guide: Design, Tolerances, and Finishing

An ABS housing can leave the machine looking correct, then bow after unclamping, bind during assembly, or lose a critical edge during finishing. These outcomes usually trace to an incomplete material specification, cutting heat, weak support, released stock stress, or an undefined acceptance condition.

This CNC machining ABS plastic guide uses those failure modes to explain how to diagnose machined ABS parts, redesign vulnerable features, assign tolerances, and decide what a CNC prototype can prove. Universal feeds, speeds, wall thicknesses, and tolerances are excluded because they depend on the grade, stock, geometry, equipment, and inspection method.

A thin shell cut from a thick blank may measure differently once fixture pressure disappears. Uneven removal can release stress already present in the stock. ABS CNC machining should distinguish dimensions controlled while supported from dimensions accepted after the part stabilizes in its free state.

Thermoplastics generally retain more cutting heat than metals. Dull edges or trapped chips can cause local softening and chip welding around burrs, slots, holes, and detailed surfaces. Sharp plastic-cutting geometry, adequate flute space, and chip evacuation are established general practices, not a universal recipe for all ABS plastic parts.

A vise can flatten a bowed wall during cutting. After release, the wall returns toward its unstressed shape and changes the measured relationship. Excessive pressure can also mark visible ABS CNC parts. Distributed support, sacrificial features, and fixtures that locate stable regions are often better than greater clamp force.

Sanding, blasting, painting, and chemical treatments can alter edge sharpness, coating build, texture, or dimensions. A cover may pass before paint but interfere afterward. Machined ABS parts should be accepted in the condition that enters assembly, not only immediately after milling.

ABS is an amorphous terpolymer of acrylonitrile, butadiene, and styrene, but commercial formulations differ. Manufacturers separate general-purpose, extrusion, high-heat, painting or plating, flame-retardant, and other grades. A defensible ABS CNC machining request names the maker, grade, color or additives, stock product and form, and required material evidence.

Stock history matters. Semi-finished ABS is sold as sheet, plate, and rod, and some suppliers offer both extruded and compression-molded forms. Product pages may report properties from injection-molded specimens even when the purchased item is thick stock. Such data can screen a grade but cannot prove every machined blank behaves identically.

A part inspected warm from machining can differ at a defined reference condition. ISO 1 establishes 20°C as the reference temperature for geometrical and dimensional properties, but it neither sets an ABS tolerance nor specifies stabilization time. When temperature affects a close fit, define the relevant inspection state.

Heat-deflection temperature also needs careful interpretation. It describes a specified specimen under stated load and heating conditions; it is not automatically an enclosure's continuous service temperature. Grade-specific thermal data apply only when their methods and intended use match the decision.

Roughing every open area first can leave a flexible wall for the final pass. A stable strategy may retain support, balance removal, or machine related features before the structure weakens. The design question is not merely whether a cutter reaches a face, but whether the part remains supported while that face is finished.

Separate the part into a stable datum core and flexible outer features. Mounting faces, locating holes, connector axes, and sealing interfaces should reference assembly datums. Cosmetic walls can use wider limits where function allows. This prevents a flexible exterior from controlling every important relationship.

A rotating cutter leaves an internal radius. No universal minimum applies to ABS CNC machining because access, depth, adjacent walls, and finish all matter. If a square mating component needs clearance, use a feasible radius, corner relief, separate insert, or revised assembly instead of an unexplained sharp-corner callout.

Deep pockets, intersecting holes, and tall ribs deserve the same review. Specify what each feature does and which surface matters. A locating hole, clearance hole, cable opening, and threaded hole may share a diameter in CAD yet require different edge, position, access, and inspection controls.

Cut threads are possible in machined ABS parts, but a prototype assembled once differs from a service cover opened repeatedly. Define the fastener, torque, engagement, assembly count, temperature, and failure mode. Do not infer joint life from wall thickness alone.

Metal inserts can improve wear behavior, but “use an insert” is incomplete. Hole geometry, boss support, installation, access, torque, and pull-out requirements should follow the selected insert maker's guidance and be validated in the actual grade.

A useful drawing groups features as locating, mating, clearance, cosmetic, or post-finish. Close tolerances belong where fit, sealing, alignment, or motion requires them. One demanding limit for every face adds cost and obscures critical interfaces. No authoritative standard sets a universal machining tolerance for ABS plastic parts.

Connect each critical tolerance to a datum, method, and acceptance condition. A gauged bore, optically measured flexible wall, and painted connector opening pose different metrology problems. Consider measurement force and support when the instrument can deform the feature.

Features machined in one stable setup may preserve relationships better than transferred features. One setup is not always possible; the plan should identify which axes, faces, and patterns must remain related. Extra decimal places cannot repair ambiguous datums.

Ask the shop to assess critical features against stock dimensions, removal strategy, setup plan, and final inspection state. Supplier “standard tolerances” describe an offering, not an inherent property of ABS CNC machining.

If paint, blasting, sanding, insert installation, or assembly can affect a requirement, inspect afterward or define pre-finish and final limits. Record the revision, grade, part condition, datum, method, result, and acceptance criterion.

As-machined surfaces show stock condition, cutter paths, and edge breaks. Abrasion may improve appearance but removes material and rounds corners. Blasting can unify texture, yet media, pressure, masking, and edge retention need representative trials. For visible ABS CNC parts, approve a sample instead of relying on “smooth.”

Painting, plating, and metallizing capability is grade-specific. Check the complete cleaner, primer, coating, and cure stack for compatibility and adhesion. Mask precision fits, threads, datum faces, and contacts where required; budget for coating build; inspect the final condition.

Acetone can soften compatible polymer surfaces and presents fire and exposure hazards. Available vapor-smoothing guidance mainly concerns printed parts and does not prove dimensional stability on dense CNC stock. A chemically altered surface needs a qualified provider, exact-grade trials, safety controls, and post-process inspection—not a workshop recipe.

Do not specify flame polishing for ABS without explicit approval from the stock maker and finishing provider. Unusual chemical, adhesive, welded, or thermal finishes need qualification on the actual grade and geometry.

ABS CNC machining avoids mold tooling and supports revisions, functional interfaces, and selected low-volume uses. It demonstrates the named stock in its machined condition. It does not reproduce molding shrinkage, flow, parting lines, ejection, or molded texture.

A molded design adds draft, shrink compensation, gate strategy, ejection, and wall-balance concerns absent from the CNC version. Molded-part tolerance and shrinkage standards do not govern machined ABS parts. If the question depends on production geometry or resin flow, production-intent molding provides more relevant evidence.

Fused-deposition ABS is not equivalent because it shares a family name. A 2025 ABS-M30 data sheet shows marked differences between build orientations under stated machine, tip, layer, and test conditions; the manufacturer says these typical values are not design specifications or quality-control limits. Record the filament and build condition rather than transferring results to ABS CNC parts.

ABS is machinable, but success depends on grade, stock form, geometry, sharp tooling, chip evacuation, workholding, and temperature. Calling it “easy” cannot replace feature-level process review.

There is no universal ABS tolerance. Confirm critical dimensions from grade, blank, geometry, setup, finish, and measurement conditions. Reserve close limits for functional interfaces.

No. Related grades still experience different material histories and process effects. CNC removes stock; molding introduces flow, cooling, shrinkage, draft, gating, and ejection. Validate the final route's required characteristics.

A compatible solvent may alter an ABS surface, but grade and process govern the result. Because acetone is hazardous and chemically changes the surface, use a qualified procedure, trials, and final inspection—not an assumed cosmetic treatment.

A reliable CNC machining ABS plastic guide connects visible failures to grade, stock history, heat, support, measurement, and finishing. Successful ABS CNC machining does not come from a universal tolerance or cutting recipe. It comes from defining what the part must prove, protecting functional features, and validating the final condition against the intended process.
