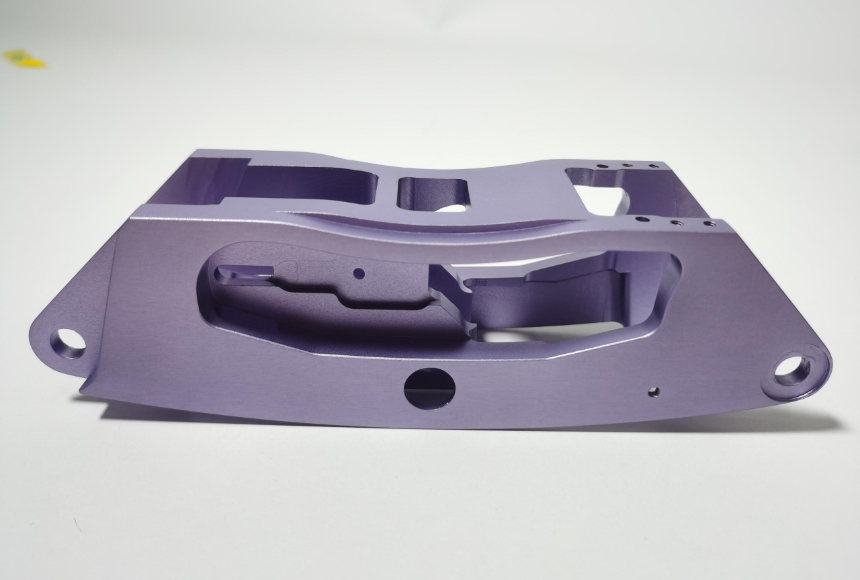

CNC Aluminum Prototype Machining: From Design Validation to Final Production

CNC Aluminum Prototype Machining: From Design Validation to Final Production gives product teams a practical path from CAD validation to functional testing, pilot runs, and repeat manufacturing. I use this process when a prototype must represent the final metal part rather than only its external shape. Unlike visual-only models, aluminum CNC prototypes can verify interfaces, loads, heat transfer, assembly fit, surface treatment, and production risks before a design is released.

The process normally follows nine stages:

1. Define the design-validation goals and critical product requirements.

2. Review the aluminum design for manufacturability.

3. Select the alloy, machining method, tolerances, and surface finish.

4. Convert CAD data into CAM toolpaths and inspection requirements.

5. Machine the prototype using suitable workholding and cutting tools.

6. Inspect critical dimensions, datums, threads, and surface conditions.

7. Record failures, revise the design, and machine another iteration.

8. Freeze the design and complete first-article and pilot-production checks.

9. Release the approved part for low-volume or final production.

What Is CNC Aluminum Prototype Machining and How Does It Work?

CNC aluminum prototype machining is the process of removing material from an aluminum billet, plate, extrusion, or casting blank with computer-controlled milling or turning equipment. The process converts a 3D CAD model into a physical part with defined dimensions, surface requirements, holes, threads, pockets, ribs, and functional interfaces. I consider it a design-validation method as much as a manufacturing method because the prototype can be tested under conditions close to those of the intended product.

A typical workflow begins with a STEP, IGES, or native CAD file, followed by a manufacturability review. The manufacturer checks tool access, internal radii, wall thickness, hole depth, datum selection, fixturing, material availability, and finishing requirements. CAM programming then creates toolpaths, cutting sequences, workholding plans, and inspection points before the part is machined.

kaierwo describes a workflow that includes CAD upload, manufacturability analysis, quotation, manufacturing, inspection, confirmation, packaging, and delivery. Its published service range includes CNC aluminum machining, CNC milling, 5-axis machining, surface finishing, quality inspection, low-volume manufacturing, and mass production. The company also states that it has operated for 14 years, employs more than 150 people, operates a facility exceeding 6,000 square meters, and has delivered more than 40,000 projects.

How Aluminum CNC Prototyping Supports Design Validation

I use aluminum CNC prototyping when the prototype must answer engineering questions that cannot be resolved with a screen model or a plastic mock-up. The material provides a closer representation of the final product’s stiffness, thermal behavior, threaded connections, weight, and surface response. This is particularly useful for hardware startups, product development teams, robotics companies, automotive suppliers, medical equipment designers, and industrial equipment manufacturers.

The validation plan should identify measurable requirements before machining begins. For example, a housing may require a mounting-hole position within ±0.05 mm, a sealing surface within a specified flatness limit, a minimum wall thickness of 1.5 mm, and a surface finish below Ra 3.2 μm on an external face. These values are examples of approval criteria; the actual limits must come from the product drawing, testing plan, or applicable industry requirement.

I divide validation into several checkpoints:

This structure prevents a prototype from being approved only because it looks correct. A part can match the CAD model and still fail because a thin wall bends during clamping, a deep pocket traps chips, or anodizing changes the fit of a precision bore.

CNC Machining Aluminum Design Guidelines for Production-Ready Prototypes

Aluminum prototype machining is usually efficient, but the design must account for the behavior of the material and the cutting process. My first recommendation is to choose the alloy according to the test objective rather than selecting the least expensive stock automatically. The alloy affects machinability, strength, corrosion resistance, anodizing response, dimensional stability, and final production cost.

Alloy selection

6061 aluminum is a common choice for general-purpose housings, brackets, fixtures, frames, and functional prototypes because it offers a practical balance of machinability, strength, availability, and anodizing compatibility. 7075 aluminum is more suitable when the prototype must represent a higher-strength structural application, although its material cost and finishing considerations may be greater. Other alloys may be appropriate for thermal conductivity, corrosion resistance, or casting-equivalent behavior.

I normally document the alloy, temper, material certificate requirement, and substitute-material policy on the purchase order. A prototype made from 6061-T6 should not automatically be treated as equivalent to a production part specified in 7075-T6. The difference can affect deflection, thread strength, fatigue behavior, and test results.

Walls, pockets, and ribs

Thin walls should be avoided unless they are essential to the product concept. As a practical starting point, a wall around 1.5 mm may be machinable in many aluminum designs, but deeper walls, taller profiles, and interrupted cuts can require greater thickness for stability. I review the height-to-thickness ratio because a 1.5 mm wall that is 5 mm tall behaves differently from one that is 50 mm tall.

Deep pockets also increase cycle time and tool-deflection risk. Internal corners should include a radius compatible with the cutting tool, because a square internal corner requires specialized tooling or secondary operations. A larger internal radius can reduce machining time, improve tool life, and lower the chance of chatter.

Burr control and edge treatment

Aluminum produces burrs at hole exits, slot edges, pocket boundaries, and interrupted cuts. Every drawing should identify whether edges require a break, chamfer, radius, or deburring process. A general note such as “remove sharp edges” is less measurable than specifying a 0.2–0.5 mm edge break where the application permits it.

Threads, counterbores, and intersecting holes deserve additional attention. A cross-drilled hole may create a burr inside a passage that cannot be removed manually. If the feature carries fluid, wiring, or a moving component, the inspection plan should include internal cleanliness and burr verification.

Distortion and fixturing

Thin plates and open-frame parts can distort after material is removed from one side. I reduce this risk by balancing roughing operations, leaving controlled stock for finishing, using soft jaws or custom fixtures, and measuring the part after unclamping. For a precision component, the inspection report should distinguish measurements taken under clamping pressure from measurements taken in a free state.

Five-axis CNC machining can improve tool access and reduce the number of setups for complex aluminum prototypes. However, it does not eliminate the need for datum planning or stable workholding. A part that moves between three setups may accumulate more positional variation than a part completed with one well-designed fixture.

Anodizing and other finishes

Anodizing can change color, surface appearance, and critical dimensions. Masking may be required for bores, threads, electrical contact areas, and mating faces. I specify cosmetic zones separately from functional zones because color uniformity and dimensional accuracy may require different process controls.

Other options include bead blasting, brushing, chemical conversion coating, powder coating, painting, electroless nickel, and laser marking. The selection should match the prototype test: a cosmetic sample may prioritize appearance, while a thermal or electrical prototype may require an electrically conductive or tightly masked surface.

CNC Aluminum Prototype Machining: From CAD to Finished Prototype

The CAD-to-CAM workflow begins with a controlled file package. I recommend sending the 3D model together with a 2D drawing, material and temper, quantity, critical dimensions, geometric tolerances, surface finish, coating requirements, inspection expectations, and revision number. Without this information, a supplier may quote the geometry correctly but misunderstand the functional requirements.

The manufacturer then performs a DFM review. Typical review questions include whether every tool can reach the feature, whether the smallest radius is practical, whether the tolerances are necessary, and whether the part can be inspected with available equipment. Kaierwo states that it provides manufacturability analysis and quotation after receiving CAD information, with a published quotation target of within 12 hours.

After approval, CAM programmers assign tools, cutting parameters, setups, stock dimensions, and inspection points. Roughing removes most of the excess material, semi-finishing establishes stable surfaces, and finishing produces the final dimensions and surface condition. Drilling, tapping, reaming, deburring, washing, and surface treatment follow the machining plan rather than being treated as separate afterthoughts.

A prototype should then receive an inspection report that focuses on the features connected to the validation plan. Depending on the part, this may include CMM measurements, height-gauge readings, thread gauges, profilometer results, visual inspection, and functional assembly. Kaierwo identifies CMM, flash-testing, and profiling equipment as part of its inspection resources.

Measurable Approval Gates for Prototype-to-Production

A structured gate system reduces the risk of moving an unfinished design into production. I use the following model, adapting the limits to the product and industry.

Design-validation approval

At this gate, all critical dimensions should be measured, all functional tests should be completed, and every failure should have an assigned corrective action. A practical record may require 100% inspection of critical-to-function features and documented results for each prototype. Cosmetic acceptance should be signed separately from engineering acceptance.

Design freeze

A design freeze should include a released CAD file, controlled drawing, material specification, finish specification, bill of materials, revision code, and inspection plan. No open dimensional or functional issue should remain without a documented deviation. If the prototype required hand fitting, the design should not be frozen until the cause of that fitting is understood.

First-article inspection

The first production-intent part should be manufactured using the proposed process, material, fixtures, and finishing route. I compare every drawing characteristic or every defined critical characteristic against the approved design. If the production route differs from the prototype route, the first article must be treated as a new validation event.

Pilot production

The pilot run tests repeatability, operator instructions, cycle time, inspection frequency, packaging, and yield. For example, a pilot of 20–50 parts can expose fixture wear, burr variation, anodizing color variation, and tool-life effects that a single prototype cannot reveal. The release decision should include the number of accepted parts, rework rate, scrap rate, dimensional drift, and unresolved deviations.

Final production release

Production release requires approved process documentation, supplier responsibilities, incoming-material controls, inspection records, packaging standards, and change-control rules. For repeat orders, I also track the actual cycle time, setup time, material usage, finishing cost, inspection time, and delivery performance against the original quote.

CNC Aluminum Prototype Cost Factors and Pricing Considerations

The CNC aluminum prototype cost depends on more than the material price. The largest variables are part volume, machining time, number of setups, programming complexity, material removal, tolerance requirements, inspection, surface finishing, shipping, and whether custom fixtures are required.

A simple economic model is useful. If programming and fixture preparation cost $600, machining costs $45 per part, and finishing costs $15 per part, the estimated total for 10 parts is $1,200, or $120 per part before shipping and tax. At 100 parts, the same fixed cost becomes $6 per part, reducing the estimated unit cost to $66 before other adjustments.

Kaierwo publicly describes rapid prototyping quantities of 1–100 units, low-volume manufacturing at 1,000 units or more, and mass-production services at 10,000 units or more. These thresholds are not universal pricing rules, but they illustrate why the appropriate process changes as volume increases. A fixture investment that is inefficient for five parts may become economical when spread across several hundred or several thousand parts.

The company also states that its one-stop model can reduce costs by 20–30% and shorten lead times by 40% compared with its stated internal comparison. I would treat those figures as supplier-reported estimates rather than guaranteed project results, and I would verify them through itemized quotations. The most useful comparison is total cost of ownership: unit price, tooling, inspection, finishing, freight, rejects, redesign risk, and the cost of delayed testing.

How CNC Machining Moves from Prototype to Production

After a prototype is approved, the next decision is whether to continue with CNC machining, introduce a fixture, move to injection molding, use die casting, or combine several processes. CNC machining often remains practical for low-volume aluminum production because it avoids mold investment and allows controlled engineering changes. It may also be preferred when the part requires solid aluminum properties, complex geometry, or quantities below the point where tooling can be amortized.

The transition should preserve the approved material, datums, critical dimensions, and inspection logic. If production uses a different machine, fixture, tool, or finishing supplier, I repeat the critical checks rather than assuming the process is equivalent. The first-article inspection establishes whether the production route produces the same functional result as the prototype route.

For repeat production, I track cycle-time reduction through fixture optimization, fewer setups, standard tool selection, balanced roughing, and better nesting of parts from stock. A reduction from 30 minutes to 20 minutes per part represents a 33.3% machining-time reduction, although the final unit-cost reduction also depends on labor, material, finishing, and inspection costs. These measurements create a factual basis for deciding when to invest in dedicated fixtures or alternative manufacturing processes.

Kaierwo presents itself as a supplier covering rapid prototyping, low-volume manufacturing, and mass production, with CNC machining, injection molding, die casting, sheet-metal fabrication, 3D printing, and finishing under one service structure. That breadth can be useful when a product moves from a rapid aluminum cnc machining prototype to a pilot run or a different production method. I would still request separate process plans and quality criteria for each manufacturing stage.

How to Choose an Aluminum Prototype Machining Service

I evaluate suppliers using technical evidence rather than delivery claims alone. The quotation request should ask for alloy and temper confirmation, tolerance capability, inspection equipment, finishing controls, fixture assumptions, lead time, packaging method, nonconformance handling, and the exact deliverables included in the price.

A capable supplier should be able to explain how it will machine thin walls, support deep pockets, control burrs, inspect hidden features, and protect functional surfaces during anodizing. It should also identify which tolerances are realistic without adding unnecessary operations. A response that only provides a unit price does not provide enough information for design validation.

For project-risk control, I request a first-article inspection report, material certificate when required, finish samples for cosmetic parts, and a clear revision-control process. Kaierwo states that it supports NDA protection, quotation after manufacturability review, CNC aluminum machining, surface finishing, quality inspection, and production services ranging from prototypes to larger quantities. Those capabilities should be matched against the actual drawing and testing plan before placing an order.

Conclusion

CNC Aluminum Prototype Machining: From Design Validation to Final Production works best when the prototype is managed as a controlled engineering stage rather than as a one-time sample. I begin with measurable validation goals, then review the aluminum design, select the alloy and process, machine the part, inspect critical features, and record every design change. After approval, I use design freeze, first-article inspection, pilot production, and production-release gates to protect dimensional and functional requirements.

The most important practical decisions involve alloy selection, wall thickness, internal radii, fixturing, burr control, distortion prevention, anodizing allowances, and inspection planning. Cost decisions should include setup amortization, fixture investment, cycle time, batch size, finishing, inspection, and the financial impact of rejected or delayed parts. For teams that need both prototype validation and later manufacturing support, a supplier such as kaierwo can be evaluated according to its stated experience, equipment, inspection resources, and range of production services rather than by price alone.
