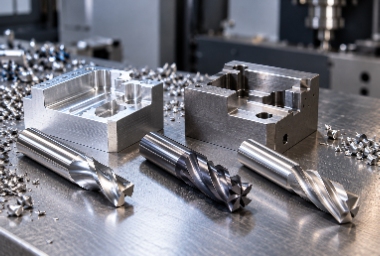

Choosing CNC Milling Cutters for Aluminum, Steel, and Plastic Parts

Choosing the right CNC milling cutters starts with the material. A tool that cuts aluminum cleanly may wear quickly in steel. A cutter designed for metal may also cause plastic to melt or leave rough edges.

The right choice depends on more than cutter size. Flute count, cutting-edge geometry, tool material, chip removal, and machine rigidity all affect the result. This guide explains how to choose an end mill for aluminum, steel, or plastic, and how to check whether it is working well. These principles also apply when planning precision CNC milling for custom parts.

What Matters When Choosing an End Mill?

An end mill removes material as it rotates. Its shape determines how it cuts and how easily chips leave the workpiece.

Before selecting a tool, check five features:

• Tool material: Solid carbide is stiff and resists wear. High-speed steel (HSS) may suit less demanding or lower-speed work.

• Flute count: Fewer flutes leave more room for chips. More flutes can improve productivity in suitable materials and stable setups.

• Cutting-edge geometry: Sharp, positive cutting edges often suit softer materials. Tougher cutting edges are useful for some steel operations.

• Coating: Coatings can improve wear resistance, but they must suit the material. A coating intended for steel is not always appropriate for aluminum.

• Tool runout: A cutter that does not rotate concentrically puts more load on some cutting edges. This can shorten tool life and reduce finish quality.

Helix angle also matters. It affects cutting forces and chip flow. There is no one geometry that performs best for every material and toolpath.

Which Milling Cutters Work Best for Aluminum?

Aluminum is usually easier to machine than steel, but it can stick to the cutting edge. This is called built-up edge. It can leave marks on the part and reduce tool performance.

For many aluminum jobs, start by evaluating a sharp, polished carbide end mill with two or three flutes. The open flute spaces help chips escape. A single-flute cutter may be useful when chip clearance is especially important, provided it suits the machine and operation.

Look for:

• Sharp edges designed for nonferrous materials

• Polished flutes that discourage chip adhesion

• Enough space to evacuate chips

• A tool diameter and flute length that fit the feature

Deep pockets and full-width slots need special care because chips can remain trapped. Check chip evacuation before increasing cutting speed or feed.

The best tool also depends on the specific aluminum alloy and the part geometry. For example, thin walls may need lighter cutting forces to prevent deflection. These issues are relevant to custom metal components as well as prototype parts.

Which End Mills Should You Use for Steel?

Steel generally needs a stronger cutting edge and good machine rigidity. The right tool depends on the steel grade, hardness, and type of cut.

Four- or five-flute carbide end mills are common starting options for stable side milling. They provide more cutting edges, but leave less room for chips. Deep slots may need fewer flutes or a toolpath with lower radial engagement.

When choosing a steel milling cutter, check:

• The steel grade and hardness

• The cutter manufacturer's recommended carbide grade and coating

• The cutting-edge strength and flute count

• Tool overhang, holder condition, and workholding rigidity

• Whether the operation is roughing, slotting, or finishing

If the machine chatters, do not immediately increase or decrease the feed at random. First check workholding, tool overhang, and runout. Then adjust the cutting conditions in a controlled test.

How Do You Choose a Cutter for Plastic Parts?

Plastics are not all alike. Acrylic, polycarbonate, nylon, acetal, and reinforced polymers respond differently to heat and cutting forces.

A sharp single- or two-flute tool is often a useful starting point. Open flutes help remove chips before they soften or stick to the cutter. The edge geometry should suit the specific resin.

When milling plastic, watch for three problems:

• Melting or smearing: The tool may be rubbing instead of cutting, or chips may be staying in the cutting zone.

• Rough or chipped edges: The cutter geometry may be unsuitable, especially for brittle plastics.

• Part distortion: Thin sections can bend under clamping pressure or cutting heat.

Clean air or a material-compatible coolant may improve chip removal and temperature control. Follow the material and tool suppliers' advice. Lowering the feed too much can make rubbing worse, so it is not always the solution to melting.

For functional plastic parts, cutter selection should be evaluated together with the design and tolerances. Kaierwo's CNC machining services cover metal and engineering plastic components.

CNC Milling Cutter Comparison: Aluminum vs. Steel vs. Plastic

These are starting points, not fixed rules. Use the cutter maker's data for the material grade and operation.

How to Set Cutting Speed and Feed Rate

After choosing a cutter, calculate a starting spindle speed and feed. Use the tool manufacturer's recommended cutting speed (Vc) and feed per tooth (fz).

Spindle speed (rpm):

n = (1000 × Vc) / (π × D)

Table feed (mm/min):

Vf = n × z × fz

Here, D is cutter diameter in millimeters, z is the number of flutes, and Vc is cutting speed in meters per minute.

Example: A 10 mm, two-flute end mill running at 300 m/min gives about 9,550 rpm. At a feed per tooth of 0.05 mm, table feed is about 955 mm/min.

This is only a calculation example. It is not a recommended setting for every aluminum alloy. Confirm the tool's operating limits, machine capability, cutting depth, and workholding before machining.

A Simple Step-by-Step Tool Selection Process

1. Identify the Material and Operation

Record the exact alloy or plastic grade. Then decide whether the cut is a slot, pocket, profile, shoulder, or finishing pass. Different cuts place different loads on the tool.

2. Match the Cutter to the Material

Choose the edge geometry, flute count, coating, and tool material recommended for that workpiece. Check whether the tool has enough reach without excessive overhang.

3. Check the Machine Setup

Make sure the holder is clean, the cutter is secure, and the workpiece is firmly clamped. Excessive runout or tool stickout can damage the finish even when the cutter type is correct.

4. Start with Verified Cutting Data

Calculate speed and feed from the tool supplier's guidance. Select a reasonable depth and width of cut. Avoid using a speed from a different material or operation without checking it.

5. Test and Inspect

Run a controlled first cut. Watch chip flow, sound, vibration, and spindle load. Inspect the surface, dimensions, and cutting edge. Change one parameter at a time so you can identify what improves the result.

This approach is useful in both prototype and repeat production. For early-stage products, rapid prototyping can help teams check part geometry and manufacturability before committing to a larger run.

Common Milling Problems and How to Fix Them

If a problem continues, record the tool type and settings before making further changes. This makes future troubleshooting easier.

How Can You Improve Tool Life and Consistency?

A successful first cut is useful only if it can be repeated. Keep a record of the material, cutter model, tool diameter, flute count, holder, speed, feed, cutting engagement, and cooling method.

Inspect the tool at regular intervals. Look for chips welded to the edge, wear, damage, or changes in surface finish. For repeat production, compare parts against the same dimensional and visual requirements.

Tool price alone is not a complete measure of cost. A cutter that lasts longer or produces fewer rejected parts may reduce cost per acceptable component. However, this must be confirmed on the actual job.

Final Thoughts: Match the Cutter to the Job

There is no universal end mill for aluminum, steel, and plastic. Aluminum often benefits from sharp tools with good chip clearance. Steel typically requires stronger edges and a rigid setup. Plastic machining depends heavily on heat control and material-specific geometry.

Start with the exact material and the type of cut. Then choose the tool, verify cutting data, and inspect the first finished part. For help evaluating drawings and manufacturing requirements for custom milled parts, contact Kaierwo.
