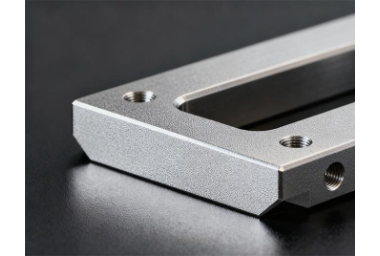

Bead Blasting CNC Aluminum Parts: How to Specify a Consistent Finish

Bead blasting CNC aluminum parts is a common surface finishing process used to achieve a uniform matte appearance, reduce the visibility of minor machining marks, and create a consistent surface texture. However, achieving the same finish across different parts or production batches requires more than simply selecting a blasting medium.

For buyers and engineers sourcing CNC machined parts, important considerations include surface appearance, material condition, masking requirements, dimensional tolerances, and inspection standards.

This guide explains how to specify bead blasting for CNC aluminum parts, control finish consistency, and establish clear acceptance criteria before production.

1. Define the Required Surface Finish

Describe the Expected Appearance

Terms such as matte, satin, smooth, and uniform can be interpreted differently by manufacturers. A clear surface finish specification helps avoid inconsistencies between samples and finished products.

Before requesting a quotation, define:

• Surface appearance: Specify whether the required finish is fine matte, satin, or another approved texture.

• Blasting coverage: Identify which surfaces require treatment.

• Reference samples: Provide an approved physical sample or reference image where possible.

• Batch consistency: Indicate whether the appearance must match across different production batches.

•


• Inspection conditions: Define lighting and viewing distance when cosmetic appearance is important.




For aluminum components with visible exterior surfaces, an approved sample is often more reliable than a general description alone.

Separate Appearance from Dimensional Requirements

Bead blasting changes the surface texture and may affect sharp edges, small features, or tight-tolerance areas.

Therefore, visual requirements should be specified separately from dimensional tolerances. Critical mating surfaces, precision holes, threads, and sealing areas may need protection during finishing.

2. Prepare a Complete Bead Blasting Specification

Before production begins, buyers should provide the technical information required for machining, surface treatment, and inspection.

For complex aluminum components, finishing requirements should be considered during the initial rapid prototyping stage. Evaluating the finish on representative parts can help identify masking difficulties and potential dimensional risks before larger production batches.

Confirm Inspection Requirements

If surface roughness must be measured, specify the roughness parameter, acceptable range, inspection locations, and measurement method.

For cosmetic surfaces, an approved sample and consistent lighting conditions can help establish a repeatable visual inspection standard.

3. How to Specify Bead Blasting for CNC Aluminum Parts

A clear specification process helps manufacturers understand the required finish and maintain consistency during production.

Step 1: Identify the Aluminum Material and Initial Surface Condition

Specify the aluminum alloy, temper, and incoming surface condition.

Different machining operations may leave visible tool marks, burrs, or surface irregularities. Bead blasting can reduce the visibility of some minor marks, but it should not be relied upon to remove deep scratches or correct machining defects.

Step 2: Identify Blasted and Protected Surfaces

Mark each surface on the engineering drawing according to its finishing requirements.

Pay particular attention to:

• Precision holes and bores

• Internal and external threads

• Sealing and bearing surfaces

• Electrical contact areas

• Mating features and tight-tolerance surfaces

Clear drawing annotations help prevent unintended blasting of functional areas.

Step 3: Select the Blasting Media

Glass beads are commonly used when a relatively uniform, non-directional matte finish is required on CNC aluminum parts.

However, the final appearance depends on media size, equipment settings, surface condition, and part geometry.

If the blasting medium has already been validated, specify it in the production documentation. Otherwise, the manufacturer can propose a suitable process for sample approval.

Step 4: Define Surface Texture and Acceptance Criteria

Surface roughness and visual appearance are related but are not identical.

When a numerical roughness requirement is necessary, specify the measurement parameter, tolerance, method, and inspection locations.

For cosmetic components, combine measurable requirements with an approved reference sample.

Step 5: Confirm Masking and Dimensional Protection

Identify all surfaces that must remain untreated and define acceptable masking boundaries.

Critical dimensions should be inspected after finishing where required. This is particularly important for components with precision-fit features.

Step 6: Approve a First Article Sample

Before batch production, inspect a representative sample manufactured from the specified material.

Evaluate:

• Overall surface uniformity

• Texture consistency

• Masking boundaries

• Edge condition

• Critical dimensions

• Compatibility with subsequent surface treatments

Retain the approved sample as a reference for future production.

Step 7: Document the Approved Production Process

Once the finish is approved, record the agreed process conditions and inspection requirements.

For repeat orders, the supplier should maintain the approved settings and communicate significant process changes before implementation.

4. What Affects Bead Blasting Finish Consistency?

Several factors influence the final texture of bead blasted aluminum parts.

Blasting Media and Equipment

Media type, particle size, cleanliness, and equipment condition affect the resulting surface texture.

Worn or contaminated media may contribute to inconsistent appearance. Regular equipment maintenance and appropriate media management help support repeatability.

Pressure, Distance, and Exposure Time

Blasting pressure, nozzle distance, impact angle, and exposure time influence how the media interacts with the aluminum surface.

There is no single process setting suitable for every aluminum component. Parameters should be established using representative parts and validated against the required finish.

Part Geometry

Deep pockets, narrow slots, internal corners, and complex contours may receive different levels of media exposure.

For complex parts produced through 5-axis machining, the manufacturer should evaluate whether all required surfaces can be blasted consistently without affecting functional features.

Additional Surface Treatments

When bead blasting is followed by anodizing or coating, the final appearance may differ from the blasted surface alone.

Specify the complete finishing sequence and approve the appearance after all required treatments have been completed.

5. How to Protect Critical Features During Bead Blasting

Although bead blasting is primarily used for surface finishing, it can influence small features, edges, and precision surfaces.

Use Masking for Functional Areas

Threads, precision bores, sealing surfaces, and contact areas may require masking.

The drawing should clearly identify protected areas and acceptable transitions between blasted and unblasted surfaces.

Evaluate Dimensional Tolerances

Blasting may affect edge sharpness or small details, depending on the process conditions.

For tight-tolerance components, manufacturers should validate the finishing process using first article inspection.

If necessary, sensitive features can be masked or the machining and finishing sequence can be adjusted.

Classify Cosmetic Surfaces

Not every surface requires the same visual quality.

Consider dividing surfaces into three categories:

• Primary cosmetic surfaces: Highly visible areas requiring consistent appearance.

• Secondary cosmetic surfaces: Visible areas where minor variation may be acceptable.

• Non-cosmetic surfaces: Internal or hidden areas where appearance is less important.

This approach helps establish practical inspection requirements without unnecessarily increasing finishing complexity.

6. How to Inspect Bead Blasted CNC Aluminum Parts

A consistent inspection method is essential for confirming that finished parts meet the approved specification.

Visual Inspection

Compare the finished components against the approved reference sample under consistent lighting and viewing conditions.

Common defects to check include:

• Uneven surface texture

• Missed blasting areas

• Streaks or visible shadowing

• Surface contamination

• Handling marks or scratches

• Irregular masking boundaries

Surface Roughness and Dimensional Inspection

If roughness is specified, measure the designated surfaces using the agreed method.

Critical dimensions should also be inspected after blasting to confirm compliance with engineering drawings.

For precision CNC milling components, particular attention should be given to mating surfaces, holes, and other functional features that may be sensitive to finishing operations.

Cleaning and Packaging

After blasting, remove residual media and contamination using the approved cleaning method.

Finished components should be handled and packaged carefully to prevent scratches, fingerprints, and contact damage during storage and transportation.

7. Common Mistakes When Specifying Bead Blasting

Incomplete specifications can lead to inconsistent appearance, unnecessary rework, or production delays.

Bead Blasting Specification Checklist

Before approving production, confirm the following:

• Material and drawings: Specify the aluminum alloy, material condition, and latest drawing revision.

• Surface coverage: Clearly identify blasted, masked, and untreated areas.

• Appearance requirements: Define the desired surface texture and visual finish.

• Reference sample: Approve a representative sample when appearance consistency is important.

• Dimensional tolerances: Identify critical features and post-finishing inspection requirements.

• Process requirements: Confirm the blasting media and approved process parameters.

• Inspection standards: Establish clear acceptance criteria and measurement methods.

• Cleaning and packaging: Specify appropriate cleaning, handling, and packaging requirements.

These requirements help manufacturers maintain consistent bead blasting results while reducing the risk of surface defects, dimensional issues, and unnecessary rework.

Conclusion

Achieving a consistent finish on bead blasted CNC aluminum parts requires clear surface specifications, appropriate process controls, and repeatable inspection methods.

By defining the required appearance, protecting critical features, and approving representative samples before production, buyers and engineers can reduce finishing inconsistencies and improve the repeatability of CNC aluminum components.
