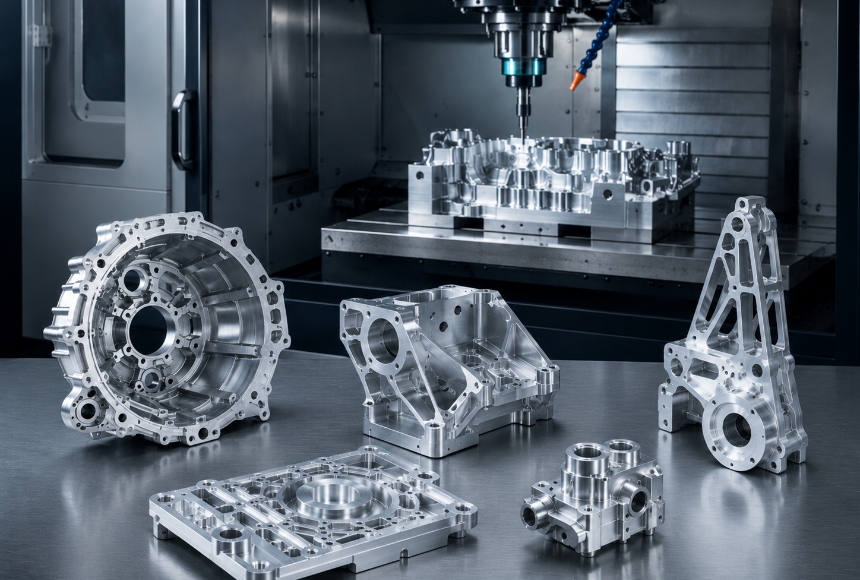

Precision aluminum machining is no longer limited to aerospace and defense applications. Today, industries such as medical equipment, robotics, semiconductor manufacturing, industrial automation, electric vehicles, optical systems, and advanced instrumentation all require increasingly complex aluminum components with tight tolerances and high repeatability. As component geometry becomes more sophisticated, the manufacturing challenge is no longer simply "Can the part be machined?" but rather "Can the part be produced consistently, economically, and repeatedly throughout the entire production lifecycle?"
An experienced aluminum precision machining service for complex parts combines engineering knowledge with manufacturing capability. Success depends on much more than owning advanced CNC machines. Material selection, design optimization, workholding, machining strategy, tool management, in-process inspection, statistical process control, and final verification all work together to ensure every critical feature meets specification.
For procurement engineers and project managers, understanding how these factors interact makes supplier evaluation more objective and helps avoid quality issues, unexpected costs, and production delays.
Not every CNC machined component should be considered "complex."
A part generally falls into the precision machining category when it combines several of the following characteristics:
Tight dimensional tolerances
Multiple datum references
Deep pockets
Thin-wall structures
Complex 3D surfaces
High positional accuracy requirements
Multiple machining orientations
Strict surface finish specifications
Critical assembly interfaces
Difficult inspection requirements
Examples include:
Robotic arm components
Semiconductor equipment
Medical instrument housings
Aerospace brackets
Optical positioning systems
EV battery cooling plates
Precision automation fixtures
These components require significantly more planning than standard CNC machined parts.
Many dimensional problems originate during product design rather than machining.
A professional CNC aluminum machining service should perform a DFM review before production begins.
The objective is not to redesign the product but to identify features that unnecessarily increase machining difficulty or cost.
One of the most common issues is designing sharp internal corners.
Because CNC cutting tools are round, perfectly square internal corners cannot be produced without EDM or secondary operations.
Increasing internal corner radii allows manufacturers to:
Use larger cutting tools
Improve rigidity
Increase material removal rates
Reduce machining time
Improve surface finish
Whenever functional requirements allow, corner radii should be larger than the cutter radius.
Deep cavities significantly influence machining efficiency.
As tool length increases:
Tool deflection increases.
Vibration becomes more likely.
Surface finish deteriorates.
Machining time increases.
A common engineering guideline is to keep pocket depth below four times the cutter diameter whenever possible.
If deeper pockets are unavoidable, machining strategy should include roughing, semi-finishing, and finishing operations to maintain dimensional stability.
Thin aluminum walls are susceptible to deformation caused by cutting forces.
Recommended practices include:
Maintaining uniform wall thickness
Avoiding unnecessary thin ribs
Reducing unsupported wall height
Using symmetrical machining strategies
For extremely thin structures, manufacturers often leave additional stock during rough machining and remove it gradually during finishing.
Material selection directly affects machining performance.
The four most common alloys include:
Advantages:
Excellent machinability
Good corrosion resistance
Stable dimensional accuracy
Excellent anodizing quality
Competitive cost
Typical applications:
Automation
Electronics
Medical equipment
Industrial machinery
Advantages:
Very high strength
Excellent fatigue resistance
High rigidity
Applications:
Aerospace
Robotics
Defense
Precision tooling
Because of its greater hardness, machining 7075 generally requires lower cutting parameters and more frequent tool monitoring.
Best suited for:
Marine environments
Chemical equipment
Welded structures
Its excellent corrosion resistance makes it ideal for sheet-metal-based assemblies rather than heavily machined structural components.
Frequently selected for:
Aircraft structures
Fatigue-loaded components
High-performance engineering assemblies
However, additional corrosion protection is usually required.
Machine capability should always match part complexity.
Suitable for:
Flat components
Standard brackets
Simple housings
Although economical, multiple setups may be necessary for complex geometry.
Provides better productivity when machining multiple sides.
Benefits include:
Reduced repositioning
Improved consistency
Faster production
For precision aluminum components, five-axis machining often provides the best balance between accuracy and efficiency.
Advantages include:
Fewer setups
Improved geometric accuracy
Better surface finish
Shorter machining cycles
Reduced fixture complexity
Five-axis machining is especially beneficial for aerospace components, impellers, medical devices, and complex structural parts.
Even the most advanced machining center cannot produce accurate parts without proper fixturing.
Fixture design affects:
Position repeatability
Vibration control
Tool accessibility
Thermal stability
For production machining, dedicated fixtures often improve both quality and productivity.
Typical fixture considerations include:
Primary datums should remain consistent throughout machining whenever possible.
Changing reference systems between operations increases accumulated positional error.
Excessive clamping may distort aluminum components.
Insufficient clamping allows vibration.
Manufacturers should balance holding force with component rigidity.
Many precision parts require rough machining before finishing.
Removing excessive material during finishing increases distortion risk.
A typical sequence includes:
Rough machining
Stress relief (when required)
Semi-finishing
Finish machining
Inspection
One of the most common mistakes in engineering drawings is applying unnecessarily tight tolerances to every dimension.
Precision should be allocated according to function.
Examples include:
| Feature | Typical Tolerance |
|---|---|
| General dimensions | ±0.10 mm |
| Mounting holes | ±0.05 mm |
| Bearing bores | ±0.01–0.02 mm |
| Cosmetic surfaces | Standard machining |
Applying ±0.01 mm universally increases machining time without improving product performance.
Experienced suppliers review tolerance allocation during DFM to reduce unnecessary manufacturing cost.
Many complex aluminum components rely on Geometric Dimensioning and Tolerancing (GD&T) rather than dimensional tolerances alone.
Important GD&T controls include:
Position
Flatness
Parallelism
Perpendicularity
Profile
Circularity
These controls improve assembly accuracy by defining how features relate to one another rather than measuring each dimension independently.
Manufacturers familiar with GD&T can interpret engineering intent more accurately and avoid unnecessary machining adjustments.
Surface finish affects more than appearance.
Typical functional considerations include:
Sliding surfaces may require:
Hard anodizing
Fine polishing
Outdoor equipment often specifies:
Clear anodizing
Powder coating
Consumer products frequently combine:
Bead blasting
Black anodizing
Laser engraving
Selecting the appropriate finish early prevents unnecessary rework after machining.
Tool wear is one of the primary causes of dimensional variation.
Professional manufacturers monitor:
Tool life
Tool offset
Cutting load
Spindle condition
Critical finishing operations are often performed using new or recently indexed cutting tools to maintain consistent accuracy.
Modern machining centers may include automatic tool breakage detection and tool life management systems.
Waiting until production is complete to inspect dimensions increases scrap risk.
Instead, experienced manufacturers perform inspection throughout production.
Typical checkpoints include:
The first completed part is fully measured before batch production proceeds.
Operators verify:
Critical diameters
Hole positions
Datum locations
Surface finish
This allows machining offsets to be adjusted before dimensional drift occurs.
Every production batch should undergo comprehensive verification.
Equipment commonly includes:
Coordinate Measuring Machine (CMM)
Height gauges
Micrometers
Thread gauges
Bore gauges
Surface roughness testers
Measurement reports provide traceability and simplify customer acceptance.
For medium and high-volume production, dimensional consistency is often more important than achieving a single accurate part.
Statistical Process Control monitors production trends before defects occur.
Benefits include:
Early detection of tool wear
Improved process stability
Lower scrap rates
Better repeatability
SPC is particularly valuable for automotive, aerospace, and medical manufacturing.
Complex precision components generally require longer lead times than standard machined parts.
Lead time depends on:
Material availability
Programming complexity
Fixture manufacturing
Inspection requirements
Surface treatment
Packaging
Export logistics
Working with one supplier from prototype through production reduces repeated engineering work and shortens overall project schedules.
When selecting an aluminum precision machining service for complex parts, procurement engineers should evaluate more than machining equipment.
Key assessment areas include:
Can the supplier provide DFM recommendations before machining?
Does the factory operate modern three-axis, four-axis, and five-axis machining centers?
Is inspection performed throughout production rather than only at final inspection?
Can the supplier provide certified material documentation?
Can they support international packaging, inspection reports, certificates, and logistics?
Does the engineering team respond quickly to drawing revisions and technical questions?
These capabilities often determine long-term project success more than machine specifications alone.
An outstanding aluminum precision machining service for complex parts is built on engineering expertise rather than machining equipment alone. Precision manufacturing requires careful integration of DFM, alloy selection, machining strategy, workholding, tolerance allocation, tool management, inspection, and process control. Each stage influences dimensional accuracy, production efficiency, and overall manufacturing cost.
For procurement teams, selecting an experienced CNC aluminum machining service means choosing a partner capable of understanding engineering intent—not simply producing parts according to a drawing. Manufacturers that combine modern machining technology with robust quality systems, experienced engineers, and effective communication consistently deliver better long-term value through reduced project risk, predictable lead times, and repeatable production quality.
