Leo Lin.
I graduated from Jiangxi University of Science and Technology, majoring in Mechanical Manufacturing Automation.
Surface finish problems usually start the same way: a drawing note says “make it smooth,” procurement forwards it to a supplier, and the first batch comes back with a surface that’s technically acceptable but functionally wrong—or the quote comes back higher than expected because the finish spec quietly forced extra operations.
If you’re making brackets, fixtures, housings, or other functional aluminum parts, you’ll get better results by treating aluminum CNC machining surface finish as a functional requirement (friction, wear, fit, corrosion) rather than a cosmetic preference.
This guide gives you a practical framework to choose and specify finishes—especially bead blast, brushed, polished, and Type III hard anodize—without overconstraining the drawing.
Treat aluminum CNC machining surface finish as a functional spec: friction, wear, fit, corrosion, conductivity—not a vibe.
Use Ra selectively on CTQ surfaces; don’t apply tight finish requirements globally unless you can name the failure mode.
Bead blast, brushed, and polished finishes control texture and appearance and can help on functional parts, but only when you’ve thought through where they belong.
Type III hard anodize solves wear problems but introduces thickness, masking decisions, and edge behavior you need to plan for.
Most “finish rejections” are really process failure modes (chatter, burrs, contact marks). Design and specify against those.

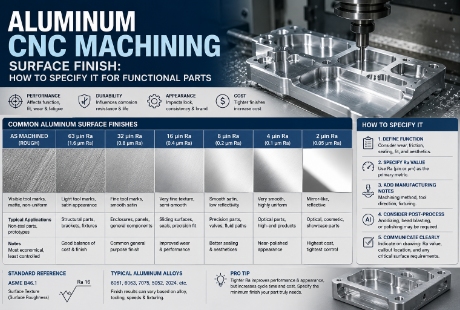

Most confusion comes from mixing three different ideas:
Roughness: the micro-peaks and valleys on the surface, often specified as Ra (arithmetical mean roughness).
Texture / appearance: what the surface looks and feels like (matte, satin, directional grain).
Coating: a layer that changes corrosion resistance, wear, and dimensions (anodize, powder coat, etc.).
Ra is useful when a surface has a job to do: seal, slide, mate, clamp, or transfer load predictably. Texture processes (like bead blasting or brushing) are useful when you want a consistent look/feel—but they’re not automatically a substitute for a functional roughness requirement.
Two surfaces can have similar Ra values and still behave differently in assembly because of lay (the direction of tool marks or brushing lines). If a surface participates in sliding contact, a seal land, or a torque interface, lay direction can be the difference between “works every time” and “mysterious stick-slip.”
This is especially relevant on turned features (shafts, bores, shoulders) where the toolpath is inherently directional.
Bead blasting, polishing, and anodizing don’t erase the machining reality underneath. They interact with it.
If the part has chatter, blasting can make it look more uniform—but the geometry and waviness are still there.
If the part has burrs or sharp edges, anodize can make them more visually obvious and more failure-prone.
If the part has a mixed machining strategy (different tools/stepovers on adjacent faces), anodize or polishing can highlight the mismatch.
Before you choose a finish, pin down what the surface is supposed to do. The same finish can be great in one context and risky in another.
If you have repetitive contact—sliding, rubbing, clamping cycles, or micro-motion (fretting)—you’re not buying “a nicer surface.” You’re buying a controlled tribology problem.
This is where Type III hard anodize often makes sense: it can increase wear resistance and reduce galling risk, but it also introduces thickness, potential brittleness at sharp edges, and a dependency on good pre-finish prep.
Corrosion protection is rarely free:
Coatings can build thickness.
Surface prep can change micro-texture.
Masking choices can create transition lines.
If you’re dealing with tight fits, define which surfaces are “fit surfaces” vs. noncritical faces, then choose a finish that protects where needed without forcing rework everywhere.
Many common coatings reduce surface conductivity. If you need a reliable ground path (or electrical contact for shielding), call that out as a functional requirement and make sure your finish choice doesn’t fight it.
Clamp faces, washer seats, bolt heads, and torque interfaces are surfaces where variability shows up as inconsistent torque-to-clamp force or loosening behavior. These surfaces often benefit from consistency more than “maximum smoothness.”
Below are the finishes engineers request most often—and the trade-offs that actually matter for functional parts.
“As-machined” is often the best answer when:
the surface is non-critical cosmetically
you need the tightest dimensional control
you want to avoid post-process variability
Most shops can produce a consistent baseline finish as part of standard CNC operations; what matters is that you’re clear about which surfaces are CTQ (critical-to-quality).
Bead blasting is useful on functional parts when you want:
a uniform matte surface that hides light tool marks
a more consistent tactile feel
light “de-burr feel” improvement on non-CTQ faces
Where teams get into trouble is assuming bead blast means “better function.” It doesn’t automatically improve sliding performance, seal behavior, or fit.
Pro Tip: If you bead blast a part, keep CTQ fit/seal/contact surfaces out of the blast zone (mask them) or specify them separately. Don’t let a cosmetic texture creep onto a functional interface.
A practical way to think about it is: bead blasting controls texture. If you need to control roughness on a functional face, specify that face explicitly.
Brushing adds a directional grain. For functional parts, it can make sense when:
you want controlled lay on a contact surface
you need a consistent satin feel for handling
But it can be a poor choice when:
the direction of brushing conflicts with the sliding direction
you have sealing surfaces that depend on uniform micro-texture
you need isotropic behavior (same in every direction)
If you’re specifying brushing, think about direction as part of the requirement. Otherwise you’ll see “it looks brushed” but behaves inconsistently.
Polishing can help when:
you need reduced friction at a controlled interface
you want to remove machining witness lines on a limited set of faces
It can also create variability because it’s easy to:
round edges unintentionally
remove material unevenly
create part-to-part variation when multiple operators are involved
For functional parts, polishing works best as a selective requirement tied to a known failure mode (stick-slip, abrasive wear, particulate generation), not as an aesthetic preference applied to the whole part.
Hard anodize is commonly chosen for functional reasons: wear, abrasion resistance, and surface durability. But it changes the part in ways you need to plan for:
Thickness and fits: if you anodize a precision bore or sliding fit, you may need masking or allowance planning.
Edge behavior: sharp edges can be brittle or show edge effects; a deliberate edge break usually behaves better.
Pre-finish matters: the finish you anodize over strongly influences the final result.
If your part is aluminum and finish is part of the functional spec, it’s worth aligning the finish choice with the machining plan.
Even if they’re not your priority, it helps to avoid accidental mis-specs:
Type II anodize: often chosen for corrosion resistance and appearance; not the same wear behavior as Type III.
Conversion coating (chem film): often used where corrosion protection and electrical conductivity both matter.
Powder coat / paint: coating thickness and masking become the “real spec,” and you should avoid applying it to fit surfaces unless you’ve designed around it.
For a broader menu of options (and to align terminology with what suppliers actually quote), it helps to reference a dedicated surface finishing options page when you’re deciding what to call out.
If you want a better as-machined finish (without switching to a coating), the best lever is usually to improve the process rather than “asking for smoother.”
Aluminum can smear if the tool edge isn’t sharp, chips aren’t evacuated, or heat builds up. That shows up as torn-looking patches or a surface that feels inconsistent even if the toolpath is stable.
Many visible “swirl marks” are just scallops from step-over and toolpath strategy. If a surface is functionally important, a dedicated finishing pass (with an appropriate stepover and stable direction) tends to improve consistency.
Chatter is the finish killer because it’s not just cosmetic—it’s a geometry problem. If you’re seeing repeating ripples, the fix is usually shorter stick-out, better support, different toolpath strategy, or different cutting parameters.
This is one reason complex parts sometimes benefit from 5-axis access and better tool orientation.
If you’re trying to avoid rework and argument loops, these are the patterns to design and specify against.
Tool marks usually follow the toolpath predictably (consistent spacing).
Chatter often looks like waves or repeating ripples that aren’t aligned with the expected path.
Why it matters: if you misdiagnose chatter as “bad polishing” or “bad blasting,” you’ll waste time on the wrong fix.
Burrs are easy to underestimate because they don’t always look dramatic before finishing. After bead blast or anodize, edges can look worse, assemble worse, and fail earlier.
If burr control is a known pain point in your geometry, it’s worth aligning your spec with deburr reality.
Sometimes finishing reveals what was already there: tiny pits, inclusions, or localized surface defects. If the part is functional and those pits land on a seal or sliding interface, you have a performance problem—not a cosmetic issue.
Hard anodize and coatings need contact points (racking) and often masking. If you don’t define acceptable contact zones, you’ll get visible marks in the worst place—exactly where a mating surface lives.
You don’t need a long template to specify finish well. You need a clear hierarchy of what matters.
If the part is a bracket or fixture where only a few faces are functional interfaces, keep the default finish elsewhere. You’ll reduce cost and shorten lead time because you’re not forcing extra passes on every face.
A good way to build this mindset into your development flow is to reference a broader rapid prototyping guide that connects DFM choices to cost and iteration speed.
Specify Ra when you can answer: “What fails if this surface is rougher?”
Common examples:
sealing faces
sliding interfaces
precision fits
fatigue-sensitive surfaces
Everything else can usually stay at the baseline finish.
Key Takeaway: If only 10% of your surfaces are CTQ, but you apply a tight surface finish requirement to 100% of the part, you’ll pay for it twice—once in machining time, and again in inspection and scrap risk.
For Type III hard anodize, think in zones:
Do-not-coat surfaces: critical fits, grounding/contact points, threads where you can’t tolerate dimensional shift
Coat-required surfaces: wear faces, sliding interfaces, clamp points prone to fretting
Contact-allowed surfaces: where rack marks or contact points are acceptable
Even when you don’t put a full template on the drawing, this zone thinking reduces surprises.
If you require Ra on a functional face, decide how it will be verified (profilometer vs visual standard). For many functional parts, a clear CTQ surface list plus a realistic inspection plan is more effective than vague “high finish quality” language.
If you’re unsure which faces should be treated as CTQ—or whether bead blasting vs brushing vs polishing vs Type III hard anodize is the lowest-risk path for your specific geometry—send your surface-function goals and a CTQ surface list to your supplier early.
