Aluminum CNC Machining: Complete Guide for Precision Parts Manufacturing

Sep. 24, 2026

Leo Lin.

Leo Lin.

I graduated from Jiangxi University of Science and Technology, majoring in Mechanical Manufacturing Automation.

Aluminum CNC Machining converts digital CAD designs into accurate metal components through computer-controlled milling, turning, drilling, tapping, boring, and multi-axis cutting. I use this process when a part requires low weight, repeatable dimensions, corrosion resistance, or complex geometry without expensive production tooling. The workflow normally includes CAD review, alloy and temper selection, toolpath programming, workholding, machining, deburring, inspection, surface finishing, and delivery.



Key Takeaways

  • Aluminum CNC Machining combines low density, machinability, corrosion resistance, and repeatable dimensional control.

  • Alloy, temper, geometry, quantity, tolerance, finishing, and inspection requirements determine the final quotation.

  • 6061 aluminum CNC machining suits general-purpose parts, while 7075 is selected for higher strength-to-weight requirements.

  • CNC milling aluminum handles complex prismatic parts, while turning suits cylindrical components and rotational features.

  • A production-ready RFQ should include CAD files, drawings, material temper, tolerances, finishes, packaging, and acceptance criteria.

  • kaierwo provides aluminum machining, prototyping, low-volume manufacturing, inspection, and finishing through one supplier relationship.

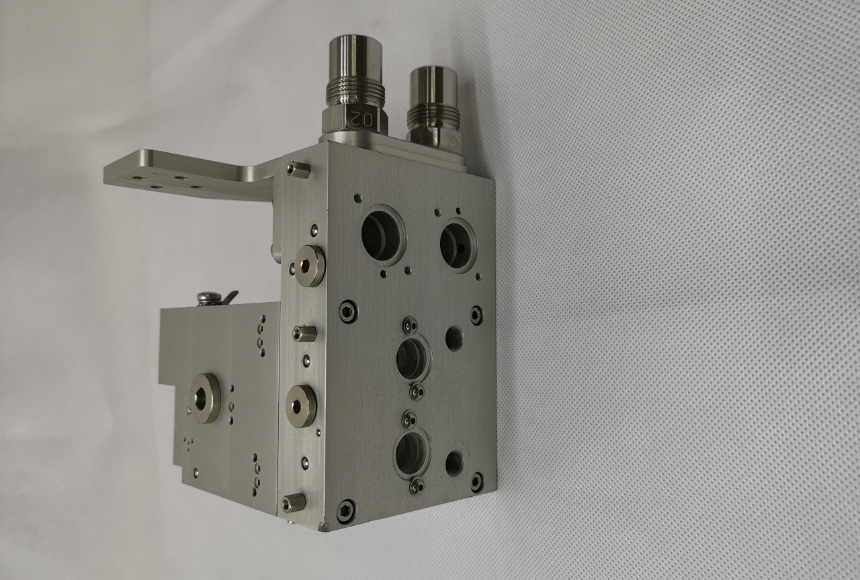

Aluminum CNC Machining: Complete Guide for Precision Parts Manufacturing


What Is Aluminum CNC Machining and How Does It Work?


Aluminum CNC machining is a subtractive manufacturing process in which programmed cutting tools remove material from an aluminum billet, plate, bar, or extrusion. I begin with a 3D CAD model and 2D engineering drawing, then define datums, tolerances, tool access, workholding, and machining sequences. The CNC machine follows coded toolpaths to produce the required geometry, after which the part is deburred, inspected, and finished if necessary.


A typical CAD-to-machined-part workflow includes these stages:

  1. Design review: The supplier checks wall thickness, internal radii, hole depth, datum structure, and tool access.

  2. Material confirmation: The alloy, temper, stock size, grain direction, and certification requirements are identified.

  3. Process planning: Milling, turning, drilling, tapping, boring, or 5-axis operations are assigned.

  4. Programming and setup: The CAD model is converted into machine code, fixtures are prepared, and work offsets are established.

  5. Machining: Roughing removes most material, while finishing passes establish critical dimensions and surface quality.

  6. Inspection and finishing: CMM checks, gauges, visual inspection, anodizing, blasting, polishing, or other treatments are completed.

I treat aluminum as a relatively easy material to machine, but “easy” does not mean every aluminum part is automatically stable. Thin walls can deform under clamping pressure, soft alloys can produce burrs, and poor chip evacuation can damage both the tool and the surface. The final result depends on the alloy, temper, tool geometry, cutting parameters, machine condition, and inspection plan.


How to Select an Aluminum Alloy for CNC Machining


The best aluminum grade depends on the required strength, corrosion resistance, weldability, machinability, surface finish, and budget. I do not recommend choosing an alloy only because it is commonly available. A part for a protective enclosure has different requirements from an aerospace bracket, medical housing, or high-load actuator component.


AlloyTypical selection reasonMain limitation
6061-T6General-purpose precision parts, housings, brackets, fixturesLower strength than 7075
6063Extrusions, decorative profiles, welded structuresMedium strength and limited high-temperature performance
6082Structural parts requiring balanced strength and corrosion resistanceHigher processing cost in some supply regions
7075-T6Aerospace components and high-strength partsHigher material cost and more difficult machining
5052Sheet-based parts, formed components, corrosion-resistant structuresCannot be strengthened through heat treatment
5083Marine, welded, and corrosion-resistant structuresCutting performance is less favorable than 6061
2024-T3Aerospace parts requiring high strength and fatigue performanceLower corrosion resistance and limited weldability
2014High-strength machined parts and thermal-load applicationsHigher processing cost and poor corrosion resistance


6061 Aluminum CNC Machining

6061-T6 is usually my starting point for general-purpose precision parts because it combines machinability, moderate strength, corrosion resistance, and broad material availability. It works well for brackets, housings, robot components, fixtures, instrument panels, and prototype assemblies. It also accepts anodizing and other surface treatments, although the final color and appearance can vary with batch, grain direction, and alloy composition.

The temper must be specified because it changes mechanical performance and machining behavior. T6 material has been solution heat treated and artificially aged, while other tempers may provide different formability or stress-relief characteristics. If a part will be welded after machining, I ask the supplier to review the heat-affected zone because local strength can decrease after welding.


7075 Aluminum CNC Machining

7075 aluminum is appropriate when tensile strength, fatigue resistance, and low weight are more important than material cost or easy processing. I commonly associate it with aerospace brackets, high-load frames, tooling components, and performance assemblies. It is more expensive than 6061 and may require more careful control of tool wear, heat generation, chip evacuation, and surface treatment.

7075 also requires attention to corrosion protection. Anodizing, conversion coating, paint, or another specified finish may be needed depending on the environment. A drawing should identify whether the part requires a particular temper, certification, coating thickness, or corrosion-resistance test.


CNC Milling Aluminum for Precision Parts


CNC milling aluminum removes material with rotating cutters while the workpiece is held on a machine table or fixture. Three-axis milling is suitable for many pockets, slots, holes, and planar surfaces, while four-axis and five-axis machining reduce repositioning for angled features and complex surfaces. I use CNC milling aluminum for housings, heat sinks, brackets, manifolds, robot components, and prototype assemblies.


Tooling selection has a direct effect on the result. Sharp carbide tools, suitable flute geometry, controlled radial engagement, and adequate coolant or air blast help reduce built-up edge and chip recutting. Aluminum-specific end mills often have polished flutes or higher helix angles that help move chips away from the cutting zone.


Milling is not the only available process. CNC turning for custom components is more efficient when the primary geometry is cylindrical, such as shafts, spacers, pins, threaded adapters, and bushings. Drilling creates holes, tapping produces internal threads, boring improves the diameter and alignment of existing holes, and reaming can provide a controlled final bore where the drawing requires it.


Multi-axis machining can reduce setup count, but it may increase programming and fixture costs. I evaluate it when the component has angled faces, compound surfaces, deep cavities, or several features that must share a common positional relationship. For simple parts, a three-axis process with a well-designed fixture may provide a lower total cost.


Aluminum CNC Machining Tolerances and Inspection


Aluminum CNC machining tolerances should be assigned according to function rather than applied uniformly to every feature. A general tolerance block may cover non-critical dimensions, while bearing fits, locating bores, sealing faces, and mating surfaces receive individual tolerances. A supplier may publish capability as tight as ±0.01 mm for selected features, but this should not be interpreted as a universal tolerance for every size, geometry, or production condition.


Dimensional accuracy is influenced by:

  • Part size and thermal expansion

  • Wall thickness and unsupported spans

  • Alloy and temper

  • Tool wear and tool deflection

  • Machine calibration and spindle condition

  • Fixture rigidity and clamping pressure

  • Number of setups

  • Surface finishing and coating thickness

  • Inspection temperature and measurement method


For inspection, I specify the required method before production starts. Calipers and micrometers may suit basic dimensions, while height gauges, pin gauges, thread gauges, optical measurement, surface profilers, and coordinate measuring machines are used for more demanding features. A first-article inspection report should identify measured dimensions, actual values, tolerances, equipment, and inspection status.


A strong inspection plan also distinguishes between process capability and inspection capability. A supplier may measure a dimension accurately but still experience dimensional drift during a long production run. For larger quantities, I request in-process checks, first-piece approval, sampling frequency, and final inspection criteria.


Surface Finishes After CNC Machining


As-machined aluminum normally shows visible tool marks and requires deburring and edge treatment. This finish may be sufficient for internal brackets, fixtures, prototypes, or components where appearance is not critical. I specify edge-break dimensions when sharp edges could affect assembly, handling, sealing, or safety.


Common aluminum surface finishes include:


FinishMain purposeImportant consideration
AnodizingCorrosion resistance, color, surface protectionAdds a measurable coating layer and may affect fits
Hard anodizingIncreased wear resistance and surface hardnessColor range and dimensional change require control
SandblastingUniform matte appearance and preparationCan alter visual texture and edge definition
BrushingDirectional decorative textureGrain direction should be specified
Powder coatingColored protective coatingCoating thickness affects holes and mating surfaces
PolishingSmooth or reflective appearanceMay soften edges and reveal machining marks
PlatingConductivity, wear, appearance, or corrosion controlCompatibility and coating thickness must be confirmed
Chemical conversion coatingCorrosion protection and electrical continuityRequires process and color specification


Anodizing-related dimensional changes are a frequent source of assembly problems. If a hole, slot, or bearing seat must remain within a narrow fit range after anodizing, I ask the supplier to account for coating thickness during machining. Masking requirements should be marked on the drawing rather than communicated informally.


Design Guidelines for Aluminum CNC Machining


Good design reduces setup time, tool changes, scrap risk, and inspection difficulty. I start by avoiding unnecessarily deep pockets, very thin unsupported walls, sharp internal corners, and narrow slots that require small tools. Internal corners should include a radius that matches the selected cutter, because a completely sharp internal corner is not practical with standard rotary tools.


Useful design practices include:

  • Use internal radii instead of sharp internal corners.

  • Keep wall thickness consistent where possible.

  • Add reliefs at deep pockets and narrow channels.

  • Avoid deep holes unless a specific drilling process is planned.

  • Use standard thread sizes and clearly specify thread depth.

  • Define datums that match the functional assembly.

  • Separate critical dimensions from reference dimensions.

  • Identify surfaces that must remain unmarked or cosmetic.

  • Provide a 3D CAD file and a dimensioned 2D drawing.

  • State whether dimensions apply before or after finishing.


Thin aluminum sections need special attention because clamping and cutting forces can distort them. If a wall must be below approximately 1 mm, I request a feasibility review before release because the practical limit depends on height, length, alloy, tool access, and support. For thin covers and large panels, I may consider ribs, temporary bridges, softer workholding, or a different manufacturing process.


Troubleshooting Common Aluminum Machining Defects

Defect analysis should connect the visible problem to a controllable process variable. I use the following guide when reviewing prototype or production issues:

DefectCommon causeCorrective action
BurrsDull tools, excessive feed, unfavorable exit conditionReplace or sharpen tools, adjust feed, add edge support
Built-up edgeLow cutting speed, poor lubrication, unsuitable tool geometryIncrease cutting speed within limits, use polished aluminum tooling
ChatterWeak workholding, excessive tool stick-out, unstable cutting loadImprove fixture support, shorten tool projection, reduce engagement
WarpingThin walls, residual stress, excessive clamping pressureUse stress-relieved stock, lighter clamping, staged machining
Chip recuttingPoor chip evacuation or inadequate air blastImprove coolant or air flow and change toolpath direction
Dimensional driftTool wear, thermal growth, inconsistent setupAdd tool-life controls, warm-up routines, and in-process checks
Anodizing mismatchAlloy variation, surface preparation, coating differencesConfirm alloy, batch, masking, and finish specification

I separate machining defects from material or finishing defects. For example, a color difference after anodizing may not indicate incorrect CNC cutting, while a hole that fails after coating may result from insufficient coating allowance. A documented root-cause review prevents repeated rework and makes future quotations more accurate.

Cost, Lead Time, and Supplier Selection

I estimate aluminum machining cost through several measurable variables rather than material price alone. A practical quotation framework is:

Total cost = material + programming + setup count + machine time + tooling + inspection + finishing + packaging + shipping

Material grade and stock size affect the first component, while part complexity determines programming and setup effort. Quantity usually spreads programming and fixture costs across more parts, but large quantities may introduce inspection, tooling, and process-control requirements. Tight tolerances, difficult alloys, deep cavities, five-axis positioning, special finishes, and certification documents increase cost.

Lead time is also shaped by more than cutting time. I review material availability, engineering feedback, programming, fixture preparation, machining queue, finishing capacity, inspection, and transport. Kaierwo describes a one-stop model covering CNC machining, surface finishing, inspection, prototyping, low-volume manufacturing, and mass production, with published company information including more than 14 years of experience, over 6,000 square meters of factory space, and more than 40,000 delivered projects.

When comparing an aluminum precision machining service, I ask for the following before placing an order:

  • 3D CAD file in STEP, IGES, or another agreed format

  • Dimensioned 2D drawing with revision number

  • Alloy, temper, and material certification requirement

  • Quantity, annual demand, and prototype-to-production plan

  • Critical dimensions, datums, fits, and geometric tolerances

  • Surface-finish type, color, coating thickness, and masking areas

  • Inspection report, CMM report, or certificate of conformity requirements

  • Packaging, labeling, cleanliness, and corrosion-protection expectations

  • Acceptance criteria for appearance, burrs, tool marks, and scratches

  • Required delivery date and shipping destination

Kaierwo presents Kaierwo as a supplier for rapid prototyping, low-volume manufacturing, and larger production programs, with CNC milling, CNC turning, 5-axis machining, inspection, and aluminum finishing listed among its capabilities. Published service information also describes quotation windows ranging from rapid response to several working hours, so I would confirm the current quotation and production SLA for each project rather than relying on a general promise.

Conclusion

Aluminum CNC Machining: Complete Guide for Precision Parts Manufacturing should be approached as a coordinated decision involving alloy selection, CAD design, machining strategy, tolerances, inspection, surface finishing, cost, and supplier capability. I would normally begin with 6061-T6 for general-purpose components, consider 7075-T6 for higher strength requirements, and evaluate 5052, 5083, 2024, 6063, or 6082 when forming, welding, corrosion resistance, or application-specific performance changes the selection.

Before requesting a quotation, I would prepare the CAD model, drawing, material temper, critical dimensions, finish requirements, quantity, packaging instructions, and inspection criteria. I would then ask the supplier to identify setup count, achievable tolerances, finishing allowances, lead-time assumptions, and likely defect risks. For prototype and low-volume work, Kaierwo can be evaluated as an aluminum precision machining service with machining, finishing, inspection, and production support handled through one supplier relationship.
