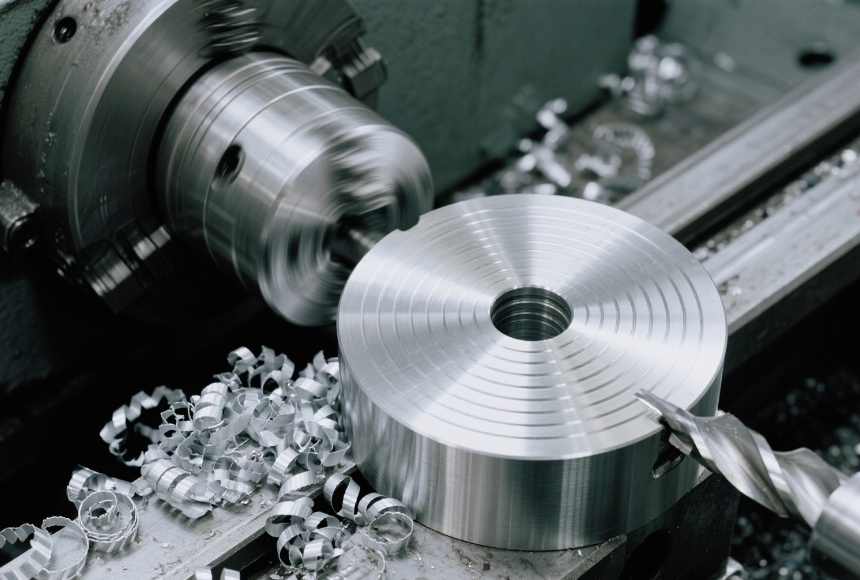

Rapid Prototyping: Full analysis of Proof of Concept (PoC) Phase

The Engineering Value and Industry Standard of CNC Rapid Prototyping in Early Product Validation

In the complete product development process, Proof of Concept (PoC) is the primary step in assessing the feasibility of a concept and the first hurdle in moving a hardware product from idea to engineering realization. Especially in mechanical structures, electronic devices, industrial equipment, and consumer products, PoC not only confirms the validity of core structural and design assumptions but also serves as a crucial basis for determining subsequent investments, engineering validation (EVT/DVT), functional prototype development, and market strategies.

With the maturity of CNC machining and CNC rapid prototyping technologies, PoC prototypes have become standard practice in the industry. CNC's high-precision machining capabilities, wide material availability, and rapid delivery advantages make it one of the most reliable manufacturing methods in the PoC stage. This white paper systematically analyzes the role of PoC in rapid prototype manufacturing and provides professional guidance from engineering, process, design, and supply chain perspectives to help companies build standardized PoC processes, reduce early-stage R&D risks, and improve project success rates.

The core function of Proof of Concept (PoC): Verifying the engineering feasibility of a product concept.

The essence of PoC is to validate the core design assumptions with minimal investment. Its goal is not simply to "create a prototype," but to determine whether the solution warrants further resource investment.

In CNC machining applications, PoC is typically used for the following validations:

1. Structural feasibility verification

Whether key geometric relationships can be achieved through machining

Whether the spatial distribution and installation methods between components are reasonable

Whether structural features such as wall thickness, chamfers, and transition zones meet strength and manufacturability requirements

For mechanical and mechatronic products, PoC often uses CNC rapid prototyping to create core functional blocks or local structural models to determine if the overall design direction is correct.

2. Preliminary material and performance testing

PoC prototypes do not need to use final mass-production materials, but must possess basic mechanical and machinability characteristics.

Commonly used materials include:

Aluminum alloys (AL6061, AL7075)

POM, Nylon, ABS

Low-cost metal materials such as A3 steel, brass

The core principles for material selection are: rapid processing capability, ability to provide basic verification support, and moderate cost.

3. Basic Verification of Functionality

Is the mechanism's motion trajectory valid?

Is the force transmission path reasonable?

Do the heat, stress, or load distribution meet basic expectations?

Is the core principle feasible?

Proof of Concept (PoC) does not emphasize appearance or pursue final performance; rather, it judges "whether it can be done," rather than "how well it can be done."

Unique Advantages of CNC in the PoC Stage

CNC machining is the industry default solution in the PoC stage, primarily due to the following reasons:

1. High Precision and Stability

For industries requiring verification of geometry, motion relationships, and assembly methods, such as robotics, medical devices, industrial equipment, and automotive parts, CNC rapid prototyping offers:

±0.05 mm or higher precision

Complete reproduction of structural details

Repeatable CNC machining strategy

This is an advantage that additive manufacturing, such as 3D printing, cannot easily replace.

2. Wide Range of Material Choices, Closer to Engineering Feasibility

CNC can machine metals and engineering plastics, which helps verify engineering issues such as structural strength and load-bearing capacity. This is especially crucial for mechanical PoC projects.

3. High Machining Speed

For the time-sensitive and frequently iterated PoC stage, the maturity and speed of CNC technology can significantly shorten the R&D cycle.

4. Facilitates subsequent transitions to Functional Prototype and EVT

Because the prototype in the PoC stage has a highly consistent structure with the subsequent prototype, there is no data conversion loss, which is conducive to rapid upgrades.

Key Engineering Design Considerations for PoC Prototypes: Preparing for CNC Machining

To maximize the value of CNC rapid prototyping in PoC prototypes, the following design principles are crucial:

1. Keep the structure simple, retain only the validation objectives

The PoC does not need a complete product structure and should follow the "Minimum Viable Structure" principle:

No need to design the appearance

No need to design a complete assembly

No need to handle final details

Retaining only the core validation area can significantly save costs and time.

2. Consider CNC machining limits and paths

Avoid wall thickness below 0.8–1 mm

Deep cavities, sharp corners, and other structures need to be optimized for machinability

Minimize the need for multiple clamping operations in the structure

Choose appropriate chamfers and fillets (R-corner optimization)

This is one of the common reasons for mechanical PoC failures: the design is feasible, but not machinable.

3. Select Verification Materials with Engineering Significance

Shell Type PoC: ABS, POM

Structured Structure: Aluminum Alloy

High-Precision Components: Brass, Aluminum 7075

Detachable Parts: Nylon or Metal

Materials do not need to be identical to mass production, but must be representative.

4. Tolerance Control Principles

PoC tolerances do not need to meet final requirements, but critical areas must meet engineering expectations:

Shafts: ±0.02–±0.05 mm

Assembly Holes: ±0.05–±0.1 mm

Dimensions: ±0.1–±0.2 mm

The focus is on ensuring basic functionality.

Industry Delivery Standards for the PoC Phase

The generally accepted PoC prototype delivery standards in the industry are as follows:

1. Prototypes must have clearly defined verification points.

Each CNC PoC prototype should include a verification objective.

Verification points must be quantifiable and recordable.

Verification logic must be confirmed by the engineering team.

2. While size tolerances are permissible, critical dimensions must be accurate.

The process capabilities of the manufacturing plant must be clearly defined in advance.

3. The prototype structure must be able to withstand basic operational tests.

Even if the material is not the final material, it must meet basic mechanical requirements.

4. Documentation Delivery

The same project should include:

3D files and 2D engineering drawings

Prototype prototyping records

Verification items and results

Modification feedback and suggestions for the next iteration

Standardized documentation can significantly accelerate the subsequent Functional Prototype and EVT phases.

Common Mistakes and Risk Mitigation Strategies in the PoC Phase

PoC failures are often not technical problems, but rather decision-making and process issues.

1. Misconception that the more complex the PoC prototype, the better.

Incorrect: Creating a "near-production prototype" PoC.

Correct Approach: Maintain a minimal validation structure.

2. Failure to communicate machining limits with CNC machining providers beforehand.

Causes: Inability to machine the structure, incorrect materials, delivery delays.

Strategy: Conduct a manufacturability (DFM) review during the design phase.

3. Ignoring material property differences.

For example, using ABS to simulate future injection molded parts can easily lead to structural misjudgments.

Strategy: Choose materials that represent strength or deformation trends, rather than arbitrarily substituting materials.

4. Vague validation standards make it impossible to determine whether validation has passed.

Recommendation: Set clear quantitative standards for each PoC, such as:

Structural load capacity ≥ X N

Bonded structure can pass Y operations

Mechanism smoothness ≥ Z level

5. Failure to systematically record validation data leads to difficulties in subsequent iterations.

PoC is the starting point of the R&D data system; missing data will seriously affect subsequent stages.

Strategic Value of PoC in a Complete Product Development System

A high-quality Proof of Concept (PoC) prototype not only helps companies determine the feasibility of a solution, but also plays the following strategic roles:

Reduces early R&D investment risk

Establishes foundational data for Engineering Validation (EVT)

Provides structural references for functional prototypes

Provides early process feasibility assessments for mold manufacturers and the manufacturing supply chain

Shortenes the overall product development cycle

Improves the decision-making efficiency of hardware R&D teams

Especially when combined with the high precision, material flexibility, and rapid iteration capabilities of CNC machining, PoC has become a common early validation method in industries such as mechanical, electrical, automotive, and industrial equipment.

In summary, Proof of Concept (PoC) is the first hurdle to success for mechanical products.

Proof of Concept is not an optional process, but a critical juncture for the success or failure of hardware products. Utilizing CNC rapid prototyping for PoC creation allows companies to validate design assumptions, identify problems, mitigate risks, and lay a solid foundation for subsequent engineering phases with minimal time and financial costs.

For R&D teams, product managers, and manufacturing companies, establishing standardized PoC processes and delivery standards is not only a crucial strategy for improving product success rates but also a core means of building a professional, reliable, and scalable engineering system.
