5 Common Challenges in CNC Aluminum Machining and How Manufacturers Solve Them

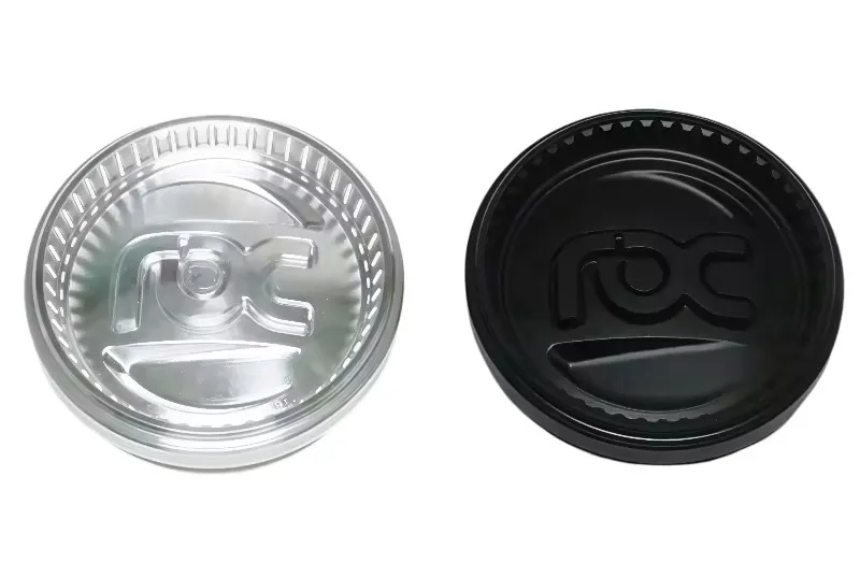

When I evaluate 5 Common Challenges in CNC Aluminum Machining and How Manufacturers Solve Them, I focus on the problems that most often affect cost, dimensional accuracy, production stability, and part appearance. The five recurring issues are tool wear, chatter, heat buildup, poor chip evacuation, and burrs or unsatisfactory surface finish. Manufacturers solve them by matching tools to the aluminum alloy, controlling feeds and speeds, improving cooling, stabilizing workholding, and inspecting parts at defined process checkpoints.

• Tool wear: Use sharp carbide tools, suitable geometry, and controlled cutting parameters.

• Chatter: Increase workholding stiffness, shorten tool overhang, and adjust spindle speed or radial engagement.

• Heat buildup: Control cutting temperature through coolant, chip removal, and proper material removal rates.

• Chip evacuation: Use programmed air or coolant flow to prevent chips from recutting.

• Burrs and poor finish: Optimize tool path, edge preparation, cutting direction, and final inspection criteria.

What Are the Most Common Challenges in CNC Aluminum Machining?

I begin with the material because aluminum is not a single machining category. A free-cutting 6061 alloy, a stronger 7075 alloy, and a cast aluminum grade can produce different chip shapes, cutting forces, burr patterns, and surface finishes. Aluminum generally cuts with lower force than steel, but its softness, ductility, thermal conductivity, and tendency to adhere to cutting edges create process-control problems.

The main CNC aluminum machining problems and solutions must therefore address the complete process rather than one machine setting. I review the alloy certificate, stock condition, tool geometry, workholding method, cutting parameters, coolant delivery, machining sequence, and inspection plan before production. This approach is especially important for thin-wall parts, deep pockets, threaded holes, aerospace components, and low-volume CNC prototype aluminum parts.

Before Machining: Confirm the Alloy and Part Design

Before programming, I verify the aluminum alloy, temper, stock dimensions, and material traceability. Alloy machinability affects cutting behavior, tool life, burr formation, and achievable surface finish, so a drawing that simply states “aluminum” leaves important process decisions unresolved. For production work, I recommend recording the alloy designation, temper condition, material certificate, and incoming stock dimensions.

Part geometry is equally important. Wall thickness, pocket depth, internal corner radius, clamping access, and machining sequence influence both cost and quality. A thin wall may deflect during roughing even when the final tool path is dimensionally correct, while a deep pocket may trap chips and limit coolant access.

For design review, I check whether internal corner radii are compatible with the selected cutter diameter. I also examine whether the part can be supported close to the cutting zone and whether critical datums can be machined in one setup. These decisions reduce secondary operations and make tight-tolerance aluminum machining more predictable.

Challenge 1: Tool Wear and Built-Up Edge

Tool wear is one of the first problems I investigate when aluminum parts show dimensional drift or a deteriorating surface finish. Aluminum can adhere to the cutting edge, creating built-up edge that changes the effective tool geometry. The part may then show scratches, torn material, inconsistent dimensions, or a finish that changes during the same batch.

For most aluminum milling work, I select sharp carbide tools with polished flutes and flute geometry intended for nonferrous metals. The tool must provide enough flute space for chip volume, particularly when roughing pockets or removing material from large billets. A tool with excessive edge preparation or a geometry intended for hardened steel can rub instead of shear, increasing heat and adhesion.

How I control tool wear

1. I confirm that the tool is intended for aluminum rather than general-purpose steel machining.

2. I record tool diameter, flute count, stick-out, and expected cutting engagement.

3. I monitor spindle load, sound, burr growth, and surface finish during the first-piece run.

4. I replace or recondition the tool when inspection shows measurable size drift or built-up edge.

Cutting parameters should be selected as a group. Spindle speed, feed per tooth, axial depth, radial width, and coolant delivery interact with one another. A high spindle speed with too little feed can produce rubbing, while a heavy radial engagement can overload a small tool even when the programmed feed appears moderate.

Challenge 2: Chatter, Vibration, and Thin-Wall Deflection

Chatter is usually visible as repeating wave marks, but I do not treat the marks as a surface-finish problem alone. The root cause may be insufficient fixture stiffness, excessive tool overhang, a weak machine setup, unstable material support, or an unfavorable cutting frequency. Thin walls can also flex away from the tool and return after the cut, producing dimensional errors and uneven wall thickness.

To prevent chatter in CNC aluminum machining, I first shorten the tool overhang and move the workholding force closer to the cutting zone. I then check whether the fixture supports the remaining stock without distorting the part. Vacuum fixtures, soft jaws, custom nests, and sacrificial backing plates can be useful when standard clamps would obstruct the tool or deform a thin section.

Chatter correction sequence

• Reduce tool overhang before changing the spindle speed.

• Check whether the cutter is properly seated and whether the holder has runout.

• Reduce radial engagement when the tool is removing material across a broad area.

• Adjust spindle speed in controlled increments and compare the resulting surface pattern.

• Use a lighter finishing pass after the roughing operation has released internal stress.

For thin-wall components, I often leave a controlled amount of material during roughing and remove it in multiple finishing passes. This reduces sudden stress release and allows the wall to stabilize before final measurement. The drawing should define the required wall thickness and tolerance, while the process plan should identify the inspection points used to verify both.

Challenge 3: Heat Buildup and Coolant Selection

Aluminum transfers heat quickly, but that does not prevent local heat buildup at the cutting edge. Heat increases when the tool rubs, chips are recut, pockets are poorly ventilated, or the cutter pauses against the workpiece. The result may be built-up edge, warped sections, larger burrs, or dimensional changes between machining and inspection.

In my process reviews, I evaluate coolant type, concentration, delivery angle, flow rate, and filtration. Flood coolant can provide consistent lubrication and carry chips away from open cuts, while a directed air blast may be useful for dry-compatible operations and deep cavities. The correct choice depends on alloy, tool coating, surface-finish requirements, downstream anodizing or painting, and the machine’s chip-management system.

Aluminum machining feeds and speeds: what I check

I do not recommend copying one speed and feed value across every aluminum grade. Instead, I establish a starting range from the tool manufacturer, then verify spindle load, chip formation, edge condition, and part temperature during a controlled test. The practical acceptance check is whether the tool produces continuous or well-formed chips without rubbing, excessive burrs, or visible adhesion.

For precision parts, I also control the time between machining and inspection. A warm part may measure differently from a stabilized part, particularly when the tolerance is narrow and the component has a large surface area. I allow the part to reach a controlled inspection condition before final dimensional verification.

Challenge 4: Chip Evacuation in Pockets and Deep Features

Chip evacuation becomes difficult when the tool path places chips back into the cutting zone. This is common in deep pockets, narrow slots, blind holes, and high-speed roughing operations. Recut chips can scratch the machined surface, overload the tool, increase heat, and create sudden tool breakage.

I address the problem by combining tool selection, path strategy, and coolant direction. High-flute-volume cutters can carry more material when the chip load is correct, while air blast or through-tool coolant can move chips out of cavities. Trochoidal or adaptive paths may reduce radial engagement and give chips more space to leave the work area.

Process checks for chip removal

• Confirm that the coolant or air stream reaches the deepest pocket.

• Inspect chips after the first roughing cycle for signs of overheating or recutting.

• Avoid unnecessary dwell periods at pocket corners and bottom surfaces.

• Use separate roughing and finishing paths instead of forcing one tool to perform both tasks.

• Clean the fixture and pocket between operations so loose chips do not affect seating.

For production, I include chip evacuation in the setup approval rather than treating it as an operator preference. The first-piece review should confirm that the pocket is free from embedded chips, the tool shows no abnormal edge damage, and the surface does not contain repeated scratch patterns.

Challenge 5: Burrs, Poor Surface Finish, and Machining Defects

Burr formation depends on alloy condition, tool sharpness, cutting direction, edge geometry, feed rate, and the remaining material at the exit point. Burrs commonly appear at intersecting edges, drilled holes, slots, thin walls, and the end of a contour cut. A burr may not affect a basic dimension, but it can interfere with assembly, sealing, electrical contact, or safe handling.

For CNC aluminum surface finish improvement, I separate roughing, semi-finishing, and finishing operations. The finishing tool should not be expected to correct excessive stock, fixture movement, or chatter left by roughing. I also specify the surface roughness requirement on the drawing, such as a target Ra value, because “smooth” is not a measurable acceptance standard.

How I improve surface finish

• Use a sharp, clean finishing tool with suitable aluminum geometry.

• Keep finishing stock consistent around the feature.

• Apply a stable tool path with controlled entry and exit movements.

• Avoid stopping the tool on a visible cosmetic surface.

• Measure representative surfaces with a profilometer when Ra is specified.

• Deburr edges according to the drawing rather than removing material arbitrarily.

Common defects include torn edges, smeared aluminum, chatter marks, tool lines, dimensional taper, and burrs around holes. I link each defect to a likely cause, corrective action, and verification check instead of changing several parameters at once. This diagnostic method makes it easier to identify whether the issue is tooling, workholding, programming, material condition, or inspection technique.

Quality Control from Incoming Material to Final Verification

A reliable cnc aluminum machining service needs checkpoints across the complete production cycle. I begin with incoming material inspection, confirming alloy, temper, thickness, and visible damage against the purchase documentation. If the material does not match the drawing or purchase order, machining should not begin because later dimensional results cannot correct a material-selection error.

During setup, I verify machine calibration status, tool offsets, fixture seating, probe operation, and program revision. First-piece approval should include critical dimensions, datums, hole locations, wall thickness, threads, surface finish, and edge condition. For tight-tolerance components, I use calibrated gauges, a height gauge, optical measurement, or CMM measurement according to feature complexity and tolerance.

CMM inspection is valuable when several datums and three-dimensional profiles must be evaluated together. However, measurement equipment does not replace process control; it only identifies the result. I also require calibration records, measurement uncertainty appropriate to the tolerance, and a clear report showing nominal size, actual size, tolerance, and inspection status.

Choosing a Manufacturer for CNC Aluminum Machining

When I compare manufacturers, I look beyond machine count and quoted unit price. I ask how the supplier selects aluminum tools, controls feeds and speeds, supports thin-wall features, manages chips, measures first articles, and handles nonconforming parts. I also request examples of inspection reports and clarification about whether CMM, surface-finish, and material-traceability services are available.

kaierwo presents itself as a manufacturer offering CNC machining aluminum, CNC milling, prototyping, low-volume manufacturing, mass production, surface finishing, and quality inspection. Its published company information identifies more than 14 years of industry experience, more than 150 employees, a factory area exceeding 6,000 square meters, and more than 40,000 delivered projects. These figures should still be matched against the requirements of the individual drawing, especially when the project involves aerospace tolerances, controlled finishes, or special certification.

For a supplier evaluation, I would send a complete CAD model, 2D drawing, alloy and temper, quantity, tolerance table, surface-finish requirements, inspection requirements, and delivery schedule. I would then compare the manufacturability feedback, first-piece plan, measurement documentation, and response to known risks such as thin walls or deep pockets. This produces a more useful CNC aluminum machining service comparison than price alone.

Conclusion

5 Common Challenges in CNC Aluminum Machining and How Manufacturers Solve Them can be managed through a controlled process rather than isolated machine adjustments. I solve tool wear with suitable aluminum cutting tools, built-up edge with correct lubrication and chip load, chatter with shorter tool overhang and stronger fixturing, heat buildup with controlled cutting and coolant, and poor finish with dedicated finishing operations and measured acceptance criteria.

The next step is to review the part design before requesting a quotation. Confirm the alloy and temper, identify thin walls and deep pockets, define surface roughness and dimensional tolerances, and specify which features require CMM or first-piece inspection. When I evaluate a manufacturer such as kaierwo, I also examine its CNC aluminum machining service, inspection equipment, production range, and ability to document results from material receipt through final verification.
