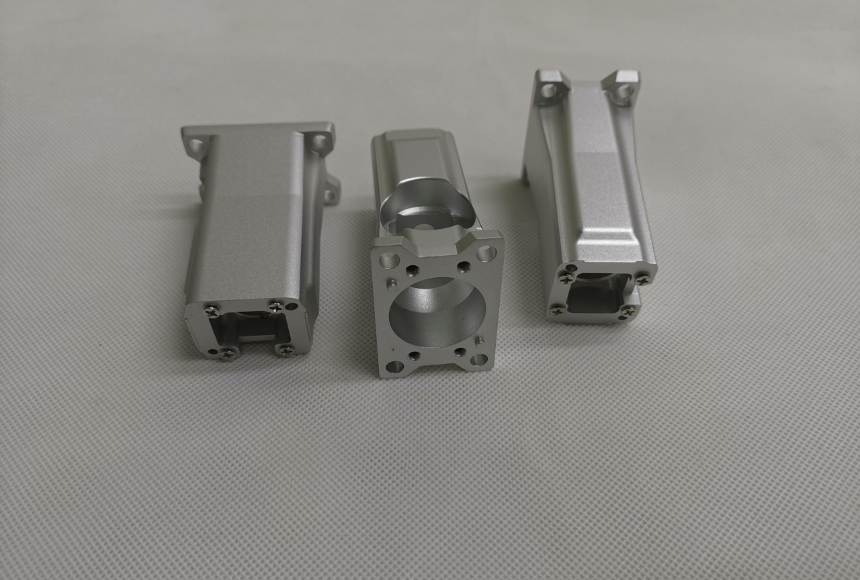

5-Axis Machining of Precision Parts for Industrial Components

This guide covers industrial automation, equipment, fluid-handling, energy, and production machinery parts. It focuses on geometry, interfaces, setup, repeatability, inspection, and communication rather than treating five-axis machining as universal.

Decide whether the component actually needs five-axis access

Start with the features that must work together

A precision industrial part may contain bores, mounting patterns, seal faces, angled ports, reference planes, or contours. Ask which features must remain related after machining. If one stable setup reaches them, conventional milling or turning may suffice.

5-axis machining industrial components becomes more useful when a part combines several faces, compound angles, deep cavities, or intersecting features. Industry guidance describes multi-axis toolpath control, collision avoidance, and single-setup strategies, but these still require a suitable fixture, tool, and verification method.

Separate process need from marketing language

A quote that lists five-axis equipment does not explain the proposed route. Ask whether the component will use indexed 3+2 machining, simultaneous five-axis motion, mill-turning, or a mixed process. The answer affects programming, workholding, tool access, surface finish, inspection, and cost.

For 5-axis machining of precision parts for industrial components, link the machine choice to a feature or relationship that matters. If that advantage cannot be explained technically, a simpler route may be easier to validate.

Classify the geometry by how the machine will reach it

Precision industrial parts machining and datum discipline

Manifolds, mounting blocks, sensor plates, gearbox covers, and machine brackets may look prismatic even when they include angled ports or recessed faces. Define the primary datum, secondary orientation, and functional origin before adding a large number of local dimensions. The drawing should make clear whether a hole pattern is located from a mounting face, a bore axis, or another reference.

A precision industrial parts machining plan can then use the datum structure to decide which faces are machined first, where the stock is held, and how the part is inspected. This is more reliable than allowing each setup to create a new local zero without explaining how the references connect.

5-axis CNC precision parts need access review

Impellers, guide bodies, pump housings, curved brackets, and equipment covers may contain narrow passages or hard-to-reach surfaces. Five-axis tool control can improve approach angles, but it cannot open a closed feature or replace a suitable fixture or secondary process.

Review the smallest passage, deepest pocket, sharpest transition, and most restrictive tool orientation early. When the geometry is for fluid, air, cable, or chip passage, also explain cleaning and inspection access. The functional requirement may be more important than the visual complexity of the outer surface.

Design interfaces before cosmetic surfaces

Custom industrial components need clear interfaces

Custom industrial components often connect to frames, rails, motors, sensors, valves, or covers. Identify the mating part, fastener standard, locating method, and clearance. A correct hole referenced from the wrong face can still prevent assembly.

If the component is part of an equipment replacement program, provide the interface drawing or a controlled sample where possible. This gives the supplier context for the industrial components machining process and helps separate mandatory interface features from optional external details.

Precision industrial parts machining: bores and seals

A bore may locate a bearing, guide a shaft, hold a bushing, or carry fluid; a thread may retain a cover, receive a sensor, or connect a fitting. State fit, engagement, sealing, surface, and inspection requirements instead of using a generic hole callout.

Sealing faces deserve special attention because finishing, deburring, and tool marks can change performance. If a coating or plating is planned, define whether the dimension is before or after finishing and which surfaces are masked.

Protect service access and maintenance behavior

Industrial equipment needs room for tools, connectors, probes, and replacement parts. A cosmetic pocket that blocks service access can increase downtime; a cover that cannot be removed after installation is not a successful custom industrial component.

Plan the setup around stability and repeatability

5-axis machining industrial components: stable workholding

Five-axis machining can reduce repositioning, but the fixture still needs stable contact and access. It should avoid thin-wall distortion, blocked critical surfaces, and collision risk, while remaining reproducible for repeat orders.

Ask how roughing stock, sacrificial tabs, soft jaws, locating pins, and re-clamping will be handled. From the structure of the process, a part with clear support surfaces is usually easier to program and inspect than one that hides every face behind a fragile feature.

Keep the setup and inspection references connected

A machine operator may use probing or a temporary fixture reference while final inspection uses drawing datums. Define their relationship. On-machine probing can locate and check a workpiece, but the method depends on the machine, probe, feature, and requirement.

When a component has multiple angular faces, ask how the supplier will establish part orientation, verify the rotary-axis position, and confirm the location of the critical features. This is especially important when a later assembly depends on the relationship between a bore and a sloped face.

Match materials and finishes to industrial service

Select materials by load and environment

Aluminum may suit lightweight covers, brackets, and housings; stainless steel may suit corrosion or cleaning needs. Tool steel, alloy steel, brass, copper, titanium, and engineering plastics fit other combinations of wear, temperature, strength, and weight. Select by service environment, not a default list.

State alloy, condition, heat treatment, hardness, and material certification requirements where they affect the component. A material substitution can change thread behavior, wear, sealing, surface appearance, or dimensional stability.

Treat finishing as part of the interface

Anodizing, passivation, plating, painting, powder coating, polishing, brushing, and blasting can support appearance or service performance, but each may affect dimensions and surface texture. Mask bearing seats, seal grooves, electrical contacts, and datum faces if required. A custom industrial component should distinguish visible surfaces from functional surfaces in the finishing notes.

If the part will operate near coolant, dust, oil, heat, or outdoor exposure, state the environment and cleaning method. The finish should be selected with the service condition and inspection method in mind.

Inspect what the equipment depends on

Precision industrial parts machining: functional datums

Inspection should show whether the component can be installed and perform its role. Measure mounting faces, hole patterns, bores, threads, seals, flatness, runout, profile, and clearances from relevant datums. A long report is not useful without the reference system.

For 5-axis CNC precision parts, CMM, probing, gauges, optical measurement, surface instruments, and functional fixtures may each answer different questions. The inspection method should be selected from the drawing and risk, not from the equipment name alone.

Include assembly or functional checks where they add evidence

A mounting plate can be checked against a mating frame. A shaft bore can be tested with a controlled shaft or gauge. A fluid component may need a defined leak or passage check, while a machine guard may need only fit and appearance confirmation. These checks should be described by the project team; they should not be invented by the supplier after machining.

For repeat production, record which characteristics were inspected on the first article, which are sampled, and which are verified through process control. The frequency and scope depend on quantity and risk.

Make the quotation technically comparable

Give the supplier the information that changes the process

A request for 5-axis machining of precision parts for industrial components includes the model, drawing revision, material, quantity, finish, datums, threads, inspection, packaging, and destination. Add an assembly image when the part fits existing equipment.

Explain whether the first order is a prototype, a replacement part, a pilot batch, or a recurring production item. A prototype may prioritize design learning, while a repeat order may prioritize fixture repeatability, documentation, and stable inspection.

Custom industrial components: compare process scope

For custom industrial components, one quote may include machining only; another may include certification, deburring, finishing, inspection, assembly, packaging, and logistics. Compare scope before prices. A low unit price can become expensive if it excludes records or secondary operations.

When is five-axis machining the practical choice?

It suits complex, multi-face, and alignment-sensitive parts

5-axis machining of precision parts for industrial components is appropriate when several important faces, ports, bores, or contours must be related and a fixed tool direction would create too many transfers or poor access. It can be useful for equipment upgrades, complex housings, small batches, and development parts whose geometry is not yet ready for a dedicated production process.

A simpler process may be better

Three-axis milling, turning, mill-turning, EDM, sheet metal, casting, additive manufacturing, or a multi-part assembly may be preferable for simpler geometry, high quantities, deep closed cavities, or cost-sensitive designs. A supplier should be able to explain why the chosen process is appropriate for the component’s function and evidence requirements.

Frequently Asked Questions

Does every precision industrial part need five-axis machining?

No. Five-axis machining is most useful when geometry, access, or feature relationships justify the additional capability. A stable one-setup three-axis or turning process may be more efficient for a simpler component.

What information helps quote custom industrial components?

Provide the model, drawing revision, material and condition, quantity, tolerances, datums, threads, surface finish, inspection needs, packaging, and the assembly or service context. These details allow the supplier to evaluate process risk instead of guessing.

Can five-axis machining support small-batch industrial components?

It can, particularly when the parts have complex geometry or several functional faces. Quantity, fixture, inspection, and finishing still determine whether it is practical.

How should buyers evaluate precision industrial parts machining?

Evaluate the supplier’s process explanation, workholding strategy, revision control, inspection evidence, material documentation, finishing scope, and ability to support the intended quantity. Machine count alone is not enough.

Conclusion

The best 5-axis machining of precision parts for industrial components starts with the equipment interface and ends with evidence that the part can be installed, maintained, and inspected. Five-axis access can simplify complex geometry, but datum control, stable workholding, material selection, finishing, and functional verification decide whether the result is useful. Treat the process as an engineering system rather than a machine specification.
