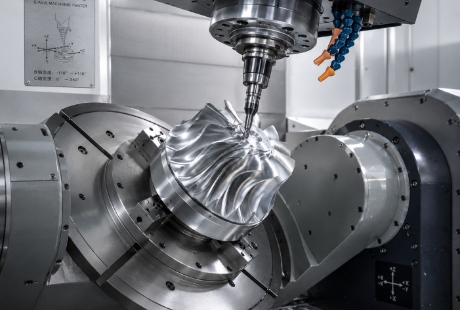

5 Axis CNC Machining Service for Medical Device Parts

Medical device parts are unforgiving. A minor burr can turn into contamination risk. A surface finish that looks fine can still trap residue. And a tolerance stack that works on paper can fall apart after your third re-fixture.

That’s where a 5 axis CNC machining service for medical device parts earns its cost: it helps you machine complex geometry with fewer setups, more consistent datums, and better control over the features that actually matter.

This guide is written for engineers and quality teams who need predictable parts—not a vague capability list.

Along the way, we’ll also cover what many teams mean when they say ISO 13485 CNC machining, what a clean first article inspection (FAI) medical device parts package looks like, and how to think about medical CNC machining supplier qualification.

Key takeaways

• 5-axis machining is most valuable when it reduces setups on complex parts (accuracy and finish improve when you stop re-clamping).

• For medical components, the real risk is rarely “can you cut it?”—it’s burrs, surface condition, traceability, and documentation quality.

• A solid supplier will offer a complete quality package: FAI, material certs, lot traceability, certificates of conformance, and controlled finishing.

• Your RFQ should specify CTQ features, inspection method expectations, surface finish targets (Ra), edge-break rules, and revision/change control.

Why 5 axis cnc machining service for medical device parts matters

Most machining problems in regulated hardware don’t start with the CAM program—they start with the number of times the part is touched.

A traditional 3-axis approach often requires multiple setups to reach angled faces, compound surfaces, or deep pockets. Every re-clamp introduces opportunities for:

• datum shift

• small angular misalignment

• extra handling marks

• variation between operators or shifts

A 5-axis machine can often reach more faces in fewer setups by rotating the part and/or spindle. That’s the core idea behind 5-axis CNC machining medical devices programs: reduce handling, keep datums consistent, and make verification simpler. That typically improves:

• feature-to-feature accuracy (because critical relationships are cut in one coordinate system)

• surface finish on contoured geometry (tool stays better oriented to the surface)

• cycle time on complex parts (less fixturing time and fewer operations)

The point isn’t that 5-axis is “more precise by default.” The point is that it can make precision easier to hold on complex geometry.

When you actually need 5-axis

Use 5-axis when the geometry forces you into repeated re-fixturing—or when the part has critical relationships across multiple faces.

Good fits for 5-axis

• compound curves or freeform surfaces

• angled holes on multiple faces

• undercuts or features that are hard to reach with long tools

• parts where a tight positional tolerance depends on keeping features in a single setup

• parts where surface finish and blending matter across transitions

Cases where 3-axis or 4-axis may be enough

• mostly prismatic parts where all CTQ features sit on one or two accessible faces

• simple brackets, plates, spacers, and fixtures with straightforward tool access

• cylindrical parts that can be turned and second-op milled efficiently

Pro tip: If your drawing forces three or more setups to reach all CTQ features, it’s usually worth pricing a 5-axis process plan. The cost difference often shrinks once you account for fixturing time and risk.

The medical-device-specific risks machining must control

Medical device parts don’t just have dimensional requirements. They have surface condition requirements that affect cleaning, sterilization, assembly, and wear.

Burrs and edge condition

Burrs are more than cosmetic. In medical applications they can:

• break loose and create particulate

• interfere with assemblies and seals

• create sharp edges that damage mating parts or injure handling staff

• create trap zones that complicate cleaning

Control starts in machining (toolpath and tool condition), not at the deburr bench.

What to specify and verify:

• explicit edge requirement (for example, “break all edges 0.2–0.5 mm unless otherwise noted”)

• “no loose burrs” acceptance language

• how internal edges and small slots will be verified

Surface finish and cleanability

Surface finish is functional. It affects friction, corrosion resistance, and how easily a part can be cleaned and inspected.

What to do in practice:

• put Ra requirements on the drawing for the surfaces that matter

• avoid demanding cosmetic finishes everywhere (it increases cost and risk)

• identify surfaces that must be free of machining witness marks, sharp transitions, or embedded media

If your part includes fluid paths, mating tapers, or implant-adjacent surfaces, align early on:

• the finish target

• the post-processing method (if any)

• the inspection method for that finish

Material handling and contamination control

Medical device supply chains often include materials like titanium alloys, stainless steels, and high-performance polymers (for example, PEEK). Each has different machining and handling considerations.

Even when the machining is technically correct, programs fail on basics:

• mixed material lots

• unclear heat/lot traceability

• residue from coolant or polishing media

• damage from poor packaging between operations

For regulated builds, treat handling as part of the process—not an afterthought.

The documentation package you should require

If you want predictable quality, you need a predictable documentation set. A “pass/fail” email is not a quality package.

Here’s what many medical device teams request (your specific program may vary):

First Article Inspection (FAI)

A strong FAI (First Article Inspection) package typically includes:

• ballooned drawing (every characteristic mapped)

• measured results tied to those balloons

• part revision and drawing revision control

• inspection methods and equipment used

• clear pass/fail disposition with sign-off

Material certifications

Ask for material certs that show:

• material grade and spec

• heat/lot number

• traceability back to the mill or original supplier

If you can’t trace a part back to raw material, you can’t quarantine intelligently later.

Lot traceability and records

At minimum, the supplier should be able to trace:

• finished part lot (or serial) → raw material heat/lot

• work order / traveler → process steps and timestamps

• inspection records → what was checked and when

• any rework or deviation → documented and approved

Certificate of Conformance (CoC)

A CoC should state that the parts:

• were made to the correct revision

• meet drawing and PO requirements

• were inspected per the agreed plan

Special process certificates

If your part requires finishing such as passivation, anodizing, plating, heat treatment, or electropolishing, request certificates for those steps, including lot identifiers.

If you’re evaluating a supplier now, a simple next move is to send:

• 3D CAD + 2D drawing (with GD&T)

• CTQ feature list

• expected quantity range (prototype vs pilot vs low-volume production)

• required documentation set

Then judge the response quality: do you get clarifying questions about datums, inspection approach, finishing, and traceability—or just a number.

For teams that need a fast, ISO 13485-aligned CNC partner, Kaierwo provides CNC machining services including 5-axis machining, with finishing options and documentation support for regulated supply chains.
