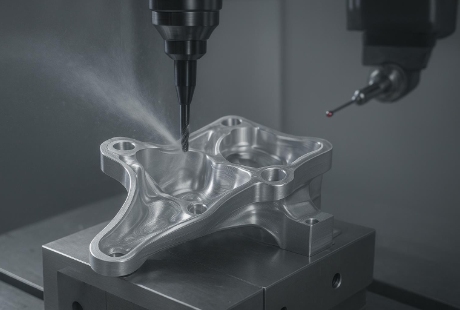

Automotive “precision parts” don’t fail because the shop picked the wrong machine. They fail because multiple faces and features that must line up in assembly were machined and inspected from a weak reference scheme.
5-axis CNC machining is often the right fix, but only when you use it to reduce setups, protect datums, and verify the relationships that are actually critical.
If you’re building brackets, housings, sensor mounts, manifolds, or test fixtures, this guide breaks down what to specify and what to ask for so you get parts that assemble the first time.
5-axis reduces precision risk when it reduces setups and protects the datum scheme that matters in assembly.
Over-tolerancing and weak datum choices create more scrap than the wrong machine ever will.
Precision without an inspection plan (CMM + FAI for CTQs) is just optimism.
5-axis is most valuable when the part has geometry that makes multi-setup work risky:
Multi-face relationships: bores to mounting planes, hole patterns to sealing surfaces, bosses to bearing seats.
Compound angles: angled ports, chamfers that matter, or features that must be normal to a non-orthogonal surface.
Deep pockets and undercuts: where tool reach gets long and rigidity collapses.
Sealing or cosmetic faces: where surface finish and edge condition affect function.
A practical rule: if your CTQs (critical-to-quality dimensions) are mostly between features on different faces, fewer setups usually means less risk.
If your program spans prototype through small builds, it helps to align machining choices with the rest of your plan (volume, materials, post-processing, inspection). For broader context, start with an automotive-focused overview like automotive prototyping and parts manufacturing.
5-axis is not a magic tolerance button. It can still be the wrong choice if:
The part is prismatic and all CTQs can be held from one stable setup.
You haven’t defined datums or GD&T (so the shop has to guess what matters).
The part is thin-walled and will distort no matter how many axes you have unless you change the sequence or add support.
Sometimes the best “5-axis upgrade” is a better drawing package and a better inspection plan.
If you want repeatable results, treat datums as a shared contract between design, machining, and inspection.
A part can inspect “good” and still assemble poorly if the datum reference frame doesn’t match how the part is located in the assembly.
Pick a primary datum that is a real locating surface in the vehicle or sub-assembly.
Use secondary/tertiary datums that lock rotation and translation in a physically repeatable way.
Put tight tolerances on functional relationships, not on everything that looks nice in CAD.
Use GD&T where it protects a real function (fit, sealing, alignment, motion).
You need selective assembly, slotting, or shims to make “in-spec” parts fit.
Hole patterns drift relative to a sealing face because they were controlled from different setups.
Precision often dies at the clamp. A part can spring during machining or relax after unclamping, and now your CMM report becomes a debate.
Support the part close to where cutting forces act.
Avoid clamping across thin ribs or cosmetic faces when you can.
If you must clamp a thin area, rough first, let it relax, then finish.
Match fixture location points to the drawing’s datum intent.
Flatness or parallelism fails only after finishing.
A bore is round in-process but shifts after unclamping.
Long tools deflect. They chatter. They leave a finish that looks fine until a bearing seats poorly or a sealing surface leaks.
Tilt the tool to keep engagement stiff.
Keep stick-out as short as the geometry allows.
Separate roughing and finishing so the finish pass has stable engagement.
Pay attention to small features that drive big risk: fillets, deep pockets, intersections.
Geometry varies part-to-part (not just one-off scrap).
Surface finish changes across a single face because effective cutting conditions changed.
Automotive precision parts are often thin in the wrong places. Aggressive roughing can bake in stress, then the part moves during finishing.
Leave consistent stock for finishing.
Balance material removal when you can (don’t hollow one side completely before touching the other).
If you’re chasing tight geometry on thin features, use a semi-finish pass before the final finish.
The last finishing pass “makes it worse,” not better.
You hit size but miss true position because the part slowly walked.
“Deburr” is not a requirement. It’s a wish.
Burrs and uncontrolled edge breaks cause assembly issues and create measurement noise. Surface finish also interacts with sealing, fatigue, and cosmetic acceptance.
Call out surface finish only where it matters (sealing faces, bearing seats, sliding surfaces).
Specify edge requirements where appropriate (break sharp edges; remove burrs at cross-holes).
If you expect anodize, plating, or coating, account for post-process impact on fits.
If corrosion resistance or appearance is part of the requirement, align machining and finishing expectations early. See surface finishing for common options and what they change.
Parts “fit” in CAD but not in assembly because burrs steal clearance.
A coated bore ends up tight because coating growth wasn’t considered.
If you care about precision, you’re not buying machining alone. You’re buying a repeatable process and proof.
A clear CTQ list: the characteristics that decide pass/fail.
A first article inspection (FAI) style report that ties measurements to the drawing.
CMM inspection on the GD&T relationships that matter, not just calipers on a few sizes.
If a tolerance is tighter than what a handheld tool can verify, your inspection plan shouldn’t rely on handheld tools.
The fastest way to reduce lead time is to remove ambiguity.
Provide these up front:
Native CAD plus a neutral file (STEP), and a drawing with datums.
Material and temper (or acceptable equivalents).
Finish requirements and which surfaces are cosmetic or sealing.
CTQ list (what truly matters).
Quantity and build phase (one-off, EVT/DVT, pilot).
Inspection expectations (CMM, FAI, certs).
Any mating constraints if a relationship is hard to interpret.
If you’re planning beyond a handful of parts but not full-scale production yet, it’s also worth aligning expectations on documentation, inspection cadence, and change control for low-volume builds.
If you want a quick manufacturability sanity check before you release a drawing, send:
your CTQ list
target quantity and timing
If you need a starting point for CNC capability and quoting flow, you can reference Kaierwo at CNC machining.
