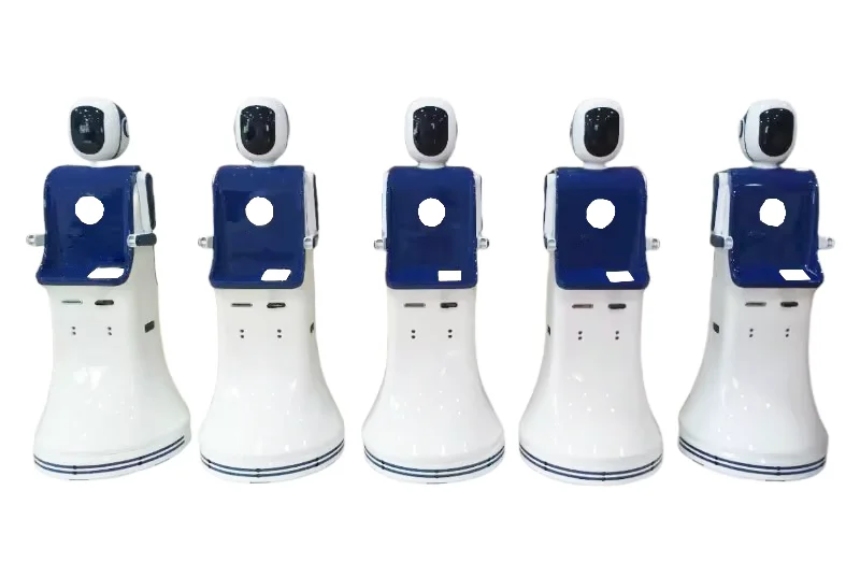

3D Printing Applications in the Robotics Industry

1. Executive Summary: Why 3D Printing Is Reshaping Robotics Manufacturing

Robotics competition is shifting from single performance metrics to overall engineering efficiency: shorter iteration cycles, higher structural integration, lower supply-chain friction, and faster customized delivery. 3D printing (additive manufacturing) naturally matches these demands—especially in three core areas:

1. Speed: Prototype-to-test cycles shrink from weeks to days or even hours.

2. Lightweight yet strong: Topology optimization and lattice structures reduce mass while maintaining stiffness/strength.

3. Customization and small-batch economics: With many models, versions, and use cases, 3D printing reduces tooling costs and changeover overhead.

Therefore, 3D printing in the robotics industry should not be viewed only as a “prototyping tool,” but as an engineering capability spanning R&D → testing → pilot builds → production supplementation.

2. Key Application Scenarios of 3D Printing in Robotics (Value-Chain View)

2.1 R&D Stage: Rapid Prototyping and Functional Verification (Most Mature & Widely Adopted)

Goal: Shorten the path from concept to testable prototypes (EVT/DVT) and reduce trial-and-error costs.

Typical parts:

• Enclosures, brackets, sensor mounts, cable-routing channels

• Joint covers, motor/gearbox mounts (for spatial and structural validation)

• Integration structures for cameras, LiDAR/radar, force/tactile sensors

Recommended processes/materials:

• FDM/FFF (engineering plastics like PA, PC, ABS), SLA/DLP (high-accuracy appearance/fit checks)

• SLS/MJF (nylon-based parts with better strength and toughness for functional validation)

Key value: Early detection of assembly interference, ergonomic issues, harness planning challenges, and serviceability constraints.

2.2 Production Stage: Jigs, Fixtures, Gauges, and Assembly Aids (Clearest ROI)

This is often the easiest place to “prove the business case” for robotics 3D printing applications.

Typical uses:

• Assembly positioning jigs, fixtures, and tooling trays

• Crimping/soldering aids, dispensing/coating alignment tools

• Inspection gauges for hole locations, flatness, and assembly gaps

Why it fits 3D printing:

• Tooling is frequently multi-variant, fast-iterating, and low-volume—traditional machining or outsourcing adds lead time

• Additive manufacturing can integrate error-proofing features (locators, stops, guides) in one build

Material suggestions:

• PA12 (SLS/MJF): durable and impact resistant

• Carbon-fiber reinforced nylon (FDM): higher rigidity

• TPU: compliant gripping, scratch protection, soft contact surfaces

2.3 Product Stage: End Effectors and Grippers (A High-Value Robotics Segment)

End effectors face complex tasks: diverse geometries, variable objects, and demand for lightweight design and rapid customization.

Common 3D printed modules:

• Fingertips, suction-cup brackets, guide structures

• Integrated vacuum channels and pneumatic routing (fewer fittings and less leak risk)

• Soft grippers (compliant materials for adaptive grasping)

Design advantages from additive manufacturing:

• Integration: Combine air paths/cable channels/mounting features into one part to reduce BOM and assembly steps

• Lightweighting: Lower payload improves acceleration, cycle time, and energy efficiency

• Customization: Quickly tailor solutions for different SKUs—ideal for flexible lines and mixed-item picking

2.4 Structural Parts & Lightweighting: Frames, Brackets, and Joint-Adjacent Components

As robots compete on dynamics, power efficiency, and endurance, mass reduction directly improves performance.

Best-fit structural directions:

• Load-bearing brackets/connectors using topology optimization + lattice structures

• Tight-space integrated structures with internal channels and hidden fasteners

• High-performance small-batch structural parts (R&D versions, customized versions, pilot builds)

Process suggestions:

• Polymers: SLS/MJF nylons (common for functional structural components)

• Metals: SLM/DMLS (for high-strength or high-temperature requirements)

Engineering note: Moving from “printable” to “production-worthy” often depends on fatigue, creep, temperature behavior, and vibration performance—not just static strength.

2.5 Soft Robotics and Bio-Inspired Structures: Unlocking New Form Factors

Soft robotics emphasizes safe contact, compliant grasping, and human-robot collaboration. Here, 3D printing is not merely manufacturing—it enables integrated structure-and-material design.
Applications:

• TPU/TPE elastic structures: soft grippers, bumpers, protective shells

• Multi-material builds (where supported): hard-soft composites (skeleton + compliant “skin”)

2.6 Spare Parts & Service: Digital Inventory and On-Demand Manufacturing

After-sales challenges often include many SKUs, high inventory pressure, and costly downtime.
3D printing approach:

• Convert low-turn spares into digital inventory: store validated CAD + build parameters and print on demand

• Improve service response time while reducing warehousing and obsolescence

Suitable spare types:

• Covers, caps, cable clips, mounting brackets, non-critical structural pieces

• Repair tools, protective accessories, service aids

3. Materials & Process Selection Guide (A Practical Decision Logic)

Don’t start with “which technology is best.” Start with your constraints: strength/stiffness, toughness, temperature resistance, accuracy, surface finish, cost, lead time, and volume.

4. DFAM for Robotics: The Real Barrier to Unlocking Additive Value

The biggest gains come from designs that are impossible or uneconomical with traditional manufacturing. A robotics DFAM guideline should emphasize:

• Lightweighting: topology optimization + lattice (with fatigue/stiffness targets defined)

• Integration: internal air paths, cable channels, cooling routes to reduce assembly points and failure modes

• Manufacturability: supports, overhang limits, wall thickness, hole sizes, orientation, and post-processing

• Assembly strategy: design for maintainability—access for sensors/harnesses and service operations

• Tolerance system: combine additive + post-process steps (sanding, blasting, machining) into a controlled tolerance chain

5. Quality & Validation: From “Usable Prototypes” to “Engineering-Controlled Parts”

To standardize additive manufacturing in robotics, many teams build a three-layer validation loop:

1. Material & process window: consistent properties for the same material, process, and parameter set

2. Structure-level testing: static strength, fatigue, vibration, drop, thermal cycling (defined by use case)

3. Traceability: lot records, parameter locking, consistent post-processing, and critical-dimension sampling

A practical internal classification system:

• Class A: non-critical covers/accessories (low barrier)

• Class B: functional structural parts (needs property + consistency validation)

• Class C: safety-critical/load-critical parts (requires strict qualification and testing)

6. Economics & ROI: A Simple Framework for “Should We Print It?”

Use this checklist to evaluate whether a part is ideal for 3D printing in the robotics industry:

• Are tooling costs high? (Yes → stronger additive advantage)

• Is iteration frequent? (Yes → big lead-time savings)

• Are variants many and volume small? (Yes → additive fits well)

• Can assembly steps be reduced? (Yes → integration creates ongoing benefits)

• Is downtime expensive? (Yes → on-demand spares become valuable)

Practical takeaway: The fastest ROI typically comes from jigs & fixtures and end-effector customization. Long-term differentiation often comes from systematic integration and lightweighting capability.

7. Deployment Roadmap: From Zero to Scaled Adoption

1. Start with jigs and fixtures: build a material library, parameter sets, and post-processing SOPs

2. Expand to end effectors and non-critical structural parts: establish DFAM rules and validation methods

3. Define supply strategy: in-house printing vs service bureaus—set lead-time, IP, and confidentiality controls

4. Manage data and revisions: put CAD, parameters, and inspection reports into PLM/quality systems

5. Extend toward small-batch production: lock process windows and implement sampling + traceability

Conclusion: The Core Value Is Not “Printing”—It’s an Engineering System

In robotics, 3D printing is moving from a prototyping tool to a production-grade engineering capability. Its true value is not only cost comparison, but a combined uplift in iteration speed, structural integration, lightweight performance, flexible customization, and supply-chain resilience. For robotics companies competing in multi-model, multi-scenario, fast-delivery environments, additive manufacturing is a long-term engineering pathway—not a one-off manufacturing choice.
